| Brand: | Cisco | Model: | WS-X6716-10G-3C |
|---|---|---|---|
| Number Of LAN Ports: | 16 | Data Transfer Rate: | 10000 Mbps |
| Data Link Protocol: | 10 Gigabit Ethernet | Condition: | NEW IN BOX |
| High Light: | cisco switch fiber module,cisco fiber transceiver |
||

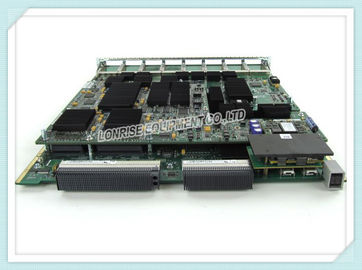

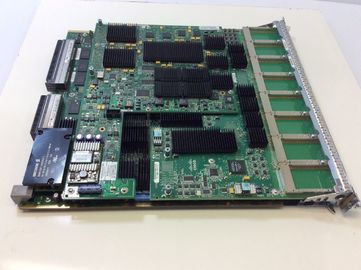

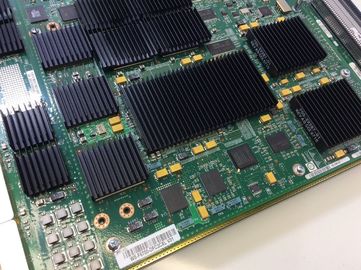

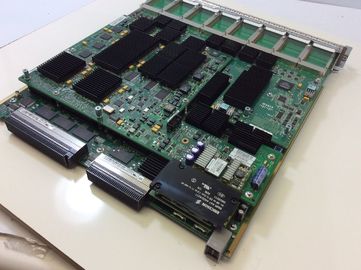

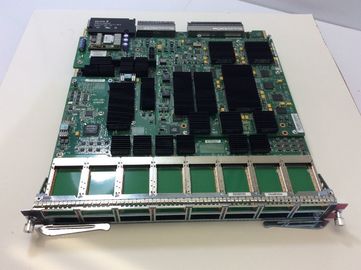

Cisco WS-X6716-10G-3C Catalyst 6500 16 Port 10 Gigabit Ethernet Module
Product Overview
The Cisco Catalyst 6500 Series Switches offer a variety of 10 Gigabit Ethernet modules to serve different needs in the campus and data center for enterprise, commercial, and service provider customers: the Cisco Catalyst 6500 16-port 10 Gigabit Ethernet Copper Module, 16-port 10 Gigabit Ethernet Fiber Module, 8-port 10 Gigabit Ethernet Fiber Module, and 4-port 10 Gigabit Ethernet Fiber Module. The copper module supports RJ-45 connectors and provides operational distance of up to 100m over Category 6, 6A, and 7 type cabling. The fiber modules support pluggable optics and provide operational distances of up to 80 km over single-mode fiber and 300m over multimode fiber.
16-Port 10 Gigabit Ethernet Fiber Module
The 16-port 10 Gigabit Ethernet fiber module (Figure 2) provides up to 130 10 Gigabit Ethernet ports in a single Cisco Catalyst 6509 chassis and 260 10 Gigabit Ethernet ports in a VSS and is designed for LAN campus aggregation and data center access, where fanout and port density are very important. It consists of 4 port groups of 4 ports each. Users can operate each port group in either oversubscription mode (2 to 4 ports used per port group) or performance mode (1 port used per port group), providing the flexibility to use some ports for connection to servers in performance mode and others for uplinks to wiring closets in oversubscription mode. In performance mode, up to 4 10 Gigabit Ethernet ports can be used to create a virtual switch link in a VSS. In addition, the 16-port 10 Gigabit Ethernet module has reduced power consumption. It uses half the power per port of the 8-port 10 Gigabit Ethernet module, providing substantial power savings to the customer.
Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules Specifications |
|
| Standard protocols | IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an |
| Physical specifications |
● Occupies one slot in the Cisco Catalyst 6500 Series chassis or Cisco 7600 Series chassis ● Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm) ● Weight: ◦ Cisco Catalyst 6708 and 6716: 13 pounds excluding X2 components; ¼ pound for each X2 ◦ Cisco Catalyst 6704: 10 pounds excluding XENPAK and DFC components; 2/3 pound for each XENPAK |
| Environmental conditions |
Operating temperature: ● Agency-certified for operation: 32 to 104°F (0 to 40°C) ● Design and tested for operation 32 to 130°F (0 to 55°C) ● Storage temperature: –40 to 167°F (–40 to 75°C) ● Relative humidity: 10 to 90 percent, noncondensing Operating altitude: ● Agency-certified for operation: –500 to 6500 ft (–150 to 2000m) ● Designed and tested for operation –500 to 10000 ft (–150 to 3000m) |
| Regulatory compliance |
Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules, when installed in a system, comply with the following EMC and safety standards: EMC Standards: ● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● VCCI Class A ● EN55022 Class A ● EN55024 ● CISPR24 ● CISPR 22 Class A ● AS/NZS CISPR 22 Class A ● ETS 300 386 ● KN 22 Class A ● EN 50082-1 ● EN61000-3-2 ● EN61000-3-3 ● EN61000-6-1 ● CNS13438 Class A ● KN6100 -4 Series Safety Standards: ● UL 60950-1 ● CAN/CSA C22.2 No. 60950 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950-1 ● IEC 60825 Class 1 ● EN 60825 Class 1 ● 21CFR 1040 |
| NEBS criteria levels | SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4) |
| ETSI |
● ETS 300 019-2-1, Class 1.1 Storage ● ETS 300 019-2-2, Class 2.1 and 2.2 Transportation ● ETS 300 019-2-3, Class 3.1E Stationary Use |
| Network management |
● ETHERLIKE-MIB (RFC 1643) ● IF-MIB (RFC 1573) ● Bridge MIB (RFC 1493) ● CISCO-STACK-MIB ● CISCO-VTP-MIB ● CISCO-CDP-MIB ● RMON MIB (RFC 1757) ● CISCO-PAGP-MIB ● CISCO-STP-EXTENSIONS-MIB ● CISCO-VLAN-BRIDGE-MIB ● CISCO-VLAN-MEMBERSHIP-MIB ● ENTITY-MIB (RFC 2037) ● HC-RMON ● RFC1213-MIB (MIB-II) ● SMON-MIB |
| Power requirements |
● WS-X6716-10T-3C: 509.3W (12.1A @ 42V) ● WS-X6716-10T-3CXL: 538.7W (12.8A @ 42V) ● WS-X6716-10G-3C: 457.8W (10.9A @ 42V) ● WS-X6716-10G-3CXL: 487.2W (11.6A @ 42V) ● WS-X6708-10G-3C: 444.36W (10.58A @ 42v) ● WS-X6708-10G-3CXL: 473.76w (11.28A @ 42V) ● WS-X6704-10GE with DFC3CXL: 362.46W (8.63A @ 42V) ● WS-X6704-10GE with DFC3C: 333.06W (7.93A @ 42V) ● WS-X6704-10GE with DFC3BXL: 402.36W (9.58A @ 42V) ● WS-X6704-10GE with DFC3B: 377.16W (8.98A @ 42V) ● WS-X6704-10GE with DFC3A: 389.76W (9.28A @ 42V) ● WS-X6704-10GE with CFC: 295.26W (7.03A @ 42V) |
| Indicators |
● Status: green (operational), red (faulty), and orange (module booting) ● Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected) |
