Product Details:
|
| Branch: | CISCO | Condition: | NEW IN BOX (NIB), Unused, Unopened, Brand New |
|---|---|---|---|
| Type: | Ethernet Switch | Max. Data Transfer Rate: | 1000Mbps/1Gbps |
| Number Of Network Ports: | 48 | Form Factor: | Rack Mountable |
| Network Management Type: | Fully Managed | Ethernet Technology: | Gigabit Ethernet (1000-Mbit/s), Fast Ethernet (100-Mbit/s), Ethernet |
| High Light: | optical ethernet switch,poe ethernet switch |
||
Product Description:
The Cisco Catalyst WS-C3750G-48PS-E Ethernet Switch ensures a reliable connectivity between networks with 48 convenient ports. This network switch has a rack-mountable form factor, a 32 MB flash memory, and a 128 MB RAM. With data link protocols such as Ethernet, Fast Ethernet, and Gigabit Ethernet, this device is capable of transferring data at a speed of 1000 Mbps.
Parameter:
| Brand | Cisco |
| Model | WS-C3750G-48PS-E |
| MPN | WS-C3750G-48PS-E |
| UPC | 0746320942612, 5051964007623 |
| Key Features | |
| Form Factor | Rack-Mountable |
| Ports Qty | 48-Ports |
| Data Transfer Rate | 1000 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet (100-Mbit/s), Gigabit Ethernet (1000-Mbit/s) |
| Compatibility | PC |
| Features | |
| Other Features | ARP support, Access Control List (ACL) support, DHCP support, Flow control, IGMP snooping, IP-routing, IPv6 support, Quality of Service (QoS), Trivial File Transfer Protocol (TFTP) support, VLAN support, auto-negotiation, auto-sensing per device, auto-uplink (auto MDI/MDI-X), full duplex capability, layer 3 switching, power over Ethernet (PoE), stackable, traffic shaping |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, status |
| Networking | |
| Networking Type | Switch |
| Connectivity Technology | Wired |
| Switching Protocol | Ethernet |
| Remote Management Protocol | HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Power Over Ethernet (PoE) | Yes |
| Routing Protocol | BGP-4, EIGRP, EIGRP for IPv6, HSRP, IGRP, IS-IS, OSPF, OSPF for IPv6, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, Static IP routing |
| Stackable | Stackable |
| MAC Address Table Size | 12K entries |
| Connectors | |
| Interfaces | 1 x management - console - RJ-45 female, 48 x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female, Network stack device |
| Power | |
| Power Consumption Operational | 590 Watt |
| Power Source | AC 120/230 V ( 50/60 Hz ) |
| Power Supplay | Power supply - internal |
| Memory | |
| Flash Memory | 32 MB flash |
| RAM Memory | 128 MB |
| Dimensions | |
| Width | 17.5 in. |
| Height | 1.73 in. |
| Depth | 14.9 in. |
| Weight | 15.5 lbs |
| Miscellaneous | |
| Enclosure Type | Rack-mountable - 1U |
| Humidity Range Operating (Range) | 10 - 85% |
| Max Operating Temperature_Display | 113 ˚F |
| Min Operating Temperature_Display | 32 ˚F |
Warranty:
1 Year manufacturer's warranty
Shipping Info:
We ship items around the world mainly via DHL, FedEx, EMS.
Contact information:
LONRISE EQUIPMENT CO.,LTD
Shanghai Main Office:
Tel: +8618616582084
Fax: +86-021-56473510
Email: laura@lonriseequipment.com
Skype: lonrisesales
Address: Rm501, Building 42th , No. 415, ShanQuan Road, 200443 ZhaBei District, Shanghai, China.

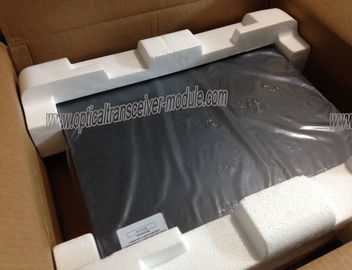

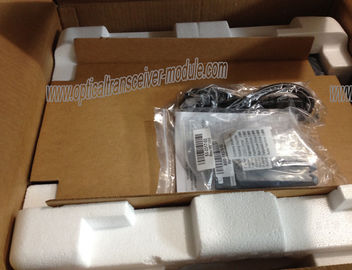

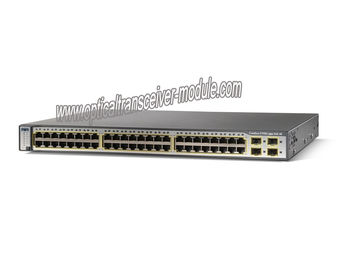

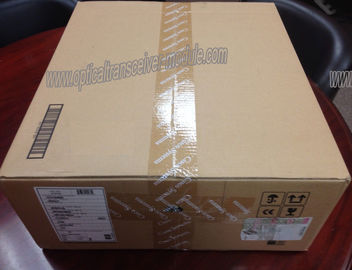

Pictures for reference:
