Product Details:
|
| Ports: | 48 X 10/100/1000 (POE+) + 2 X 10G SFP+ & 2 X 1G SFP | Number Of AP Per Switch/stack: | 50 |
|---|---|---|---|
| Total Number Of WLANs Per Switch: | 64 | Power Supply: | PWR-C2-1025WAC |
| Warranty: | 1year With Replacement Warranty | Shipment: | DHL,UPS,TNT, |
| High Light: | optical ethernet switch,fiber optic network switch |
||

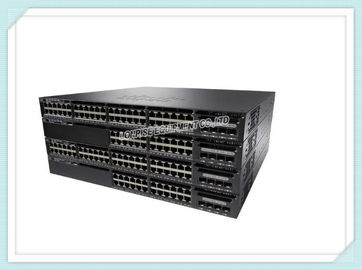

WS-C3650-48FWD-S Cisco Ethernet Network Switch 48 Port FPoE 2x10G Uplink w/5 AP licenses IPB
Cisco Catalyst WS-C3650-48FWD-S is the next generation of enterprise-level stable access layer switch and integrates with 48 POE+ Ethernet ports and 2 x 1G SFP, 2 x 10G SFP+ or 4 x 1G uplink ports in IP base feature set. It offers 5 access point licenses and support up to 200 wireless connections.
WS-C3650-48FWD-S Specification
WS-C3650-48FWD-S Specification |
|
| Enclosure type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 (POE+) + 2 x 10G SFP+ & 2 x 1G SFP |
| Network management Interface | · Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling · Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | 775W |
| Switching Capacity | 176Gbps |
| Maximum stacking number | 9 |
| Stack Bandwidth | 160Gbps |
| Forwarding Performance | 104.16Mpps |
| FNF entries | 48000 |
| Maximum VLANs IDs | 4,094 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Wireless | |
| Number of AP per switch/stack | 50 |
| Number of wireless clients per switch/stack | 1000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 40Gbps |
| Supported Aironet AP series | 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | power redundant slot |
| Accessory & Rack Moubt Kits | · ACC-KIT-T1: Accessory kit · RACK-KIT-T1: Rack mount kit · 4PT-KIT-T1:Extension rails and brackets for four-point mounting |
| Stacking module & cable | · C3650-STACK-KIT: Stack Module · STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length · STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length · STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length |
| Power supply | PWR-C2-1025WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone (in Watts) | 109.4 (max) |
shows the comparison between WS-C3650-48FWD-S and WS-C3650-48FD-S.
| Models | WS-C3650-48FWD-S | WS-C3650-48FD-S |
| Feature Set | IP Base | IP Base |
| Uplink Interfaces |
2 x 1G SFP, 2 x 10G SFP+ OR 4 x 1G SFP uplinks |
2 x 1G SFP, 2 x 10G SFP+ OR 4 x 1G SFP uplinks |
| Ports | 48 x 10/100/1000 POE+ Ethernet ports | 48 x 10/100/1000 POE+ Ethernet ports |
| Available PoE Power | 775W | 775W |
| StackWise-160 | Optional | Optional |
| Bundle | 5 Access Point Licenses | None |
