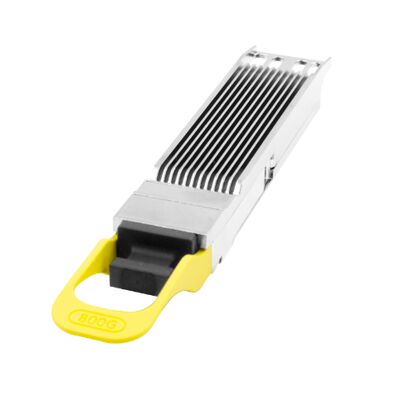

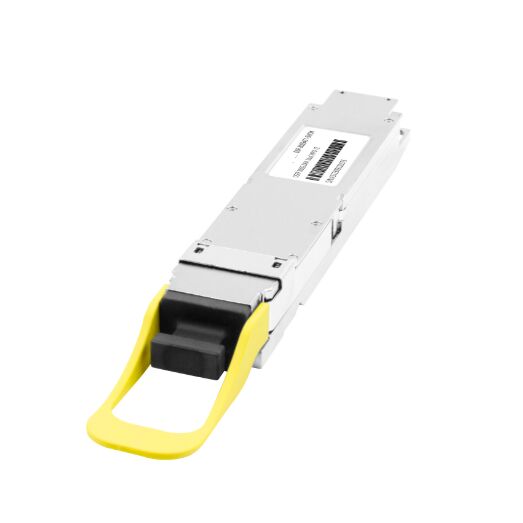

800G OSFP DR4 500m SMF Optical Transceiver Module, 1310nm, MPO

Large Image : 800G OSFP DR4 500m SMF Optical Transceiver Module, 1310nm, MPO

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	800G OSFP DR4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

800G OSFP DR4 500m SMF Optical Transceiver Module, 1310nm, MPO

Description

Product Name:	SFP Optical Transceiver	Part Number:	800G OSFP DR4
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	800G OSFP DR4

800G OSFP DR4 Optical Transceiver Overview

This 800G OSFP DR4 is a high-performance, hot-pluggable optical transceiver designed for next-generation 800G Ethernet links in data centers, AI/ML clusters, and high-performance computing (HPC) environments. It complies with the IEEE 802.3ck 800GBASE-DR4 standard and OSFP MSA specifications, delivering 800 Gbps bandwidth over 8 lanes of 100 Gbps PAM4 signaling.

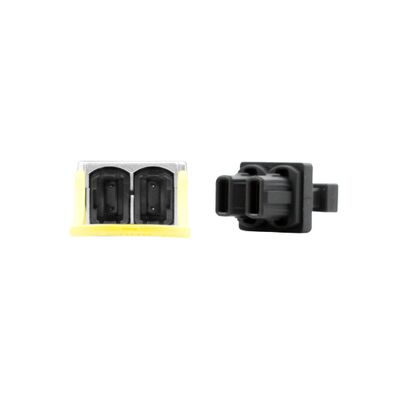

Figure 1 shows the front panel of 800G OSFP DR4.

Quick Specs.

Table 1 shows the Quick Specs

Parameter	Details
Form Factor	OSFP MSA
Data Rate	800Gbps (8x100G PAM4)
Standard	800GBASE-DR4, IEEE 802.3ck
Wavelength	1310 nm
Fiber Type	Single-mode (SMF)
Reach	Up to 500 m
Connector	Dual MPO-12/APC
Power	< 16 W
Temperature	0°C ~ 70°C (Case)
Management	CMIS 5.0+, DDM/VDM

Detailed Specification

Parameter	Specification
Product Model	800G OSFP DR4
Form Factor	Hot-pluggable OSFP
Max Data Rate	800 Gbps (8 electrical lanes × 100 Gbps PAM4)
Optical Standard	800GBASE-DR4, IEEE 802.3ck
Wavelength	1310 nm (CW DFB/EML)
Modulation	PAM4, 53.125 GBd
Fiber Type	9/125 μm Single-mode Fiber (SMF)
Max Transmission Distance	500 meters
Optical Connector	2 × MPO-12/APC (dual connector)
Power Supply	Single 3.3 V
Power Consumption	Typical < 15 W, Max < 16 W
Operating Case Temp	0°C to 70°C
Storage Temp	-40°C to 85°C
Management Interface	I2C, CMIS 5.0 / 5.1 / 5.2
Diagnostics	Digital Diagnostics Monitoring (DDM/DOM), VDM
Laser Class	Class 1/1M
Compliance	RoHS, IEEE, OSFP MSA, CMIS
Applications	Data Centers, AI/ML, HPC, Cloud, 800G Ethernet
