Product Details:
|
| Product Code: | GLC LH SMD | Transceiver Form Factor: | SFP+ |
|---|---|---|---|
| Payment: | TT/LC | Form Factor: | SFP+ |
| Connector Type: | LC | Data Rate: | 10 Gbps |
| Wavelength: | 850 Nm | Input Voltage: | 3.3V |
| Highlight: | MMF SMF SFP transceiver module,1000BASELXLH SFP transceiver module,IEEE 802.3z SFP transceiver module |
||
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP is made for Both Multimode and Single-Mode Fibers. The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable. 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.

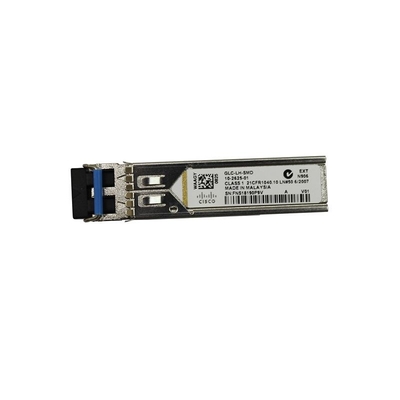

This Figure shows the appearance of GLC-LH-SMD.
Features
① Up to 1.25Gb/s data links
② Hot-pluggable SFP Footprint
③ Compliant with specifications for IEEE802.3Z
④ Eye Safety Designed to meet Laser Class1 Compliant with IEC60825-1
⑤ Single +3.3V Power Supply
⑥ RoHS compliance
⑦ 10km links on standard 9/125 micron singlemode fiber
⑧ Operating temperature range:
⑨ Standard 0 to +70 °C
⑩ Industrial -40 to +85 °C
Applications
① Gigabit Ethernet
② 1x Fiber Channel
③ Other optical links
