Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC

Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC
Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC

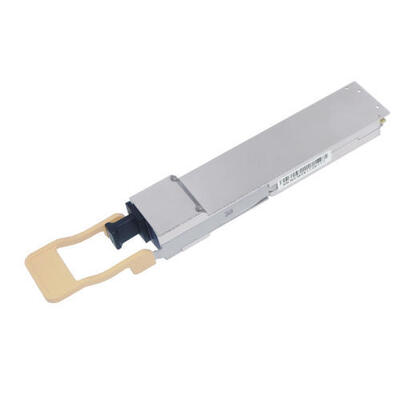

Large Image :  Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: QSFP-DD-400G-SR4
Document: LONRISE EQUIPMENT Company ...le.pdf
Contact Now

Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC

Description
Model: QSFP-DD-400G-SR4 Form Factor: QSFP-DD
Optical Port Standard/type: 400GBASE-SR4 Connector Type: MPO 1×12
Optical Fiber Type: MMF Center Wavelength: 850 Nm
Port Splitting: 2X200G Condition: Original New With 1 Year's Warranty

QSFP-DD-400G-SR4

The QSFP-DD-400G-SR4 is a short-range 400G optical transceiver module designed for high-speed data center interconnects, especially for intra-rack and inter-rack connections.

Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC 0
Item Value
Basic Information
Module name QSFP-DD-400G-SR4
Part Number 02314RAY
Model QSFP-DD-400G-SR4
Form factor QSFP-DD
Optical port standard/type 400GBASE-SR4
Connector type MPO 1×12
Optical fiber type MMF
Type of the end face of the ceramic ferrule on optical ports APC
Working case temperature [°C (°F)] 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s] 400Gbit/s
Target transmission distance [km]

Multimode fiber (OM3) (with diameter of 50 μm): 60 m

Multimode fiber (OM4) (with diameter of 50 μm): 100 m

Multimode fiber (OM5) (with diameter of 50 μm): 100 m
Modal bandwidth [MHz*km]

Multimode (OM3) optical fiber: 2000 MHz*km

Multimode (OM4) optical fiber: 4700 MHz*km

Multimode (OM5) optical fiber: 4700 MHz*km
Bit error ratio (BER) 2.4e-4
Transmitter Optical Characteristics
Center wavelength [nm] 850 nm
Maximum Tx optical power (AVG) [dBm] 4 dBm
Minimum Tx optical power (AVG) [dBm] -4.6 dBm
Minimum extinction ratio [dB] 2.5 dB
Receiver Optical Characteristics
Rx sensitivity (OMA) [dBm] max (-4.6,-6.4+TECQ)
Overload power (AVG) [dBm] 4 dBm
Functions and Features
DDM options Supported
Port splitting 2X200G
Inbuilt FEC No
Matching Optical Fiber Specifications
Fiber connector type MPO-12
Fiber end face type APC
Male/Female type Female
Polarity type B
Core Size 50/125 μm


Huawei QSFP-DD-400G-SR4 QSFP-DD 400GBase-SR4 Optical Transceiver, MMF, 850nm, 0.05km, MPO, APC 1
