Product Overview
The Huawei S5735-S48P4XE-V2 is a high-performance Layer 3 managed Gigabit Ethernet switch designed for enterprise campus networks, SMB networks, and high-density PoE deployments. It provides 48 x 10/100/1000BASE-T PoE+ ports and 4 x 10GE SFP+ uplink ports, delivering scalable bandwidth and reliable power for IP phones, wireless access points, and surveillance systems.
With advanced Layer 3 routing capabilities, strong PoE power delivery, and flexible uplink options, this model is ideal for modern converged networks requiring high availability, security, and simplified management.

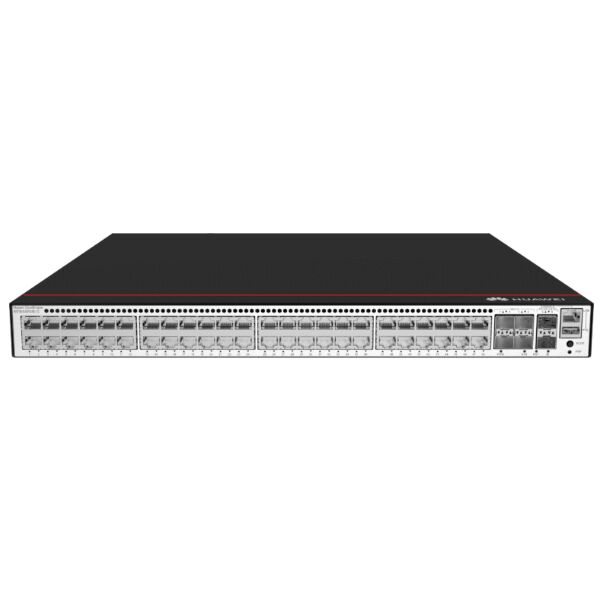

Figure 1 shows the front panel of S5735-S48P4XE-V2.
Key Features
- 48 × Gigabit RJ45 PoE+ access ports (IEEE 802.3af/at)
- 4 × 10GE SFP+ uplink ports for high-speed aggregation
- Layer 3 routing: static route, RIP, OSPF, IS-IS (depending on license/software version)
- High PoE power budget for IP cameras and Wi-Fi APs
- Support VLAN segmentation, QoS, ACL security policies
- Stackable architecture for scalability and redundancy
- Enterprise-grade reliability with VRRP and link redundancy
- Smart traffic management for voice, video, and data convergence
Technical Specifications
| Item |
Specification |
| Model |
S5735-S48P4XE-V2 |
| Downlink Ports |
48 × 10/100/1000BASE-T PoE+ |
| Uplink Ports |
4 × 10GE SFP+ |
| Switching Capacity |
Up to 336 Gbps |
| Forwarding Rate |
Up to 108 Mpps |
| MAC Address Table |
16K |
| VLAN Support |
Up to 4094 VLANs |
| Routing Protocols |
Static, RIP, OSPF, IS-IS |
| Power Supply |
AC (hot-swappable PSU supported depending on configuration) |
| Operating Temperature |
-5°C to 50°C |
| Installation |
Rack-mounted (1U) |
Application Scenarios
1. Enterprise Campus Network
Ideal for enterprise access layer switching, supporting thousands of endpoints such as PCs, printers, and IP phones.
2. IP Surveillance System
Supports PoE+ for powering large-scale IP camera deployments in smart cities, factories, and buildings.
3. Wireless Access Network
Provides stable PoE power for Wi-Fi 5 / Wi-Fi 6 access points, ensuring seamless wireless coverage.
4. SMB Core / Distribution Layer
Acts as a reliable aggregation switch for small and medium business networks requiring Layer 3 routing.
Huawei S5735-S48P4XE-V2 vs Similar Models
| Feature |
S5735-S48P4XE-V2 |
S5735-S48P4S-A |
S5735-L48T4X-A1 |
| PoE Support |
Yes (PoE+) |
Yes |
Optional / Limited |
| 10G Uplink |
4 × SFP+ |
4 × SFP+ |
4 × SFP+ |
| Layer |
L3 |
L2/L3 Lite |
L3 |
| Target Use |
Enterprise access |
SMB access |
Entry enterprise |
| Performance |
Higher |
Medium |
Medium |
FAQ
Q1: What is the difference between S5735-S48P4XE-V2 and other S5735 switches?
The S48P4XE-V2 offers full 48-port PoE+ support and 10G uplinks, making it more suitable for high-power endpoint environments compared to non-PoE or lower uplink models.
Q2: Can this switch power IP cameras and Wi-Fi 6 access points?
Yes. It supports PoE+ (IEEE 802.3at), which is sufficient for most IP cameras and enterprise Wi-Fi 6 access points.
Q3: Does it support Layer 3 routing?
Yes, it supports Layer 3 features such as static routing, RIP, OSPF, and IS-IS, depending on firmware version and license configuration.
Q4: What is the maximum number of devices supported?
It supports up to 48 PoE devices directly, and more via downstream switches using 10G uplinks.
Q5: What is the advantage of 10GE SFP+ uplinks?
10GE uplinks eliminate bandwidth bottlenecks between access and aggregation layers, improving performance for video surveillance, cloud access, and enterprise applications.
Q6: What warranty and after-sales support is available?
Typical enterprise distribution includes:
- Hardware warranty support (depending on supplier)
- Remote technical assistance
- Replacement or repair options (RMA support)
- Firmware upgrade guidance
