COP-SI400G-LR4 Product Overview
The COP-SI400G-LR4 is a high-performance 400G QSFP-DD LR4 silicon photonics optical transceiver, compliant with the 400GBASE-LR4 standard and IEEE 802.3bs specifications. It adopts advanced CWDM4 four-wavelength design (1271/1291/1311/1331 nm) and PAM4 modulation, supporting stable 400Gbps transmission up to 10 km over standard G.652 single-mode fiber.
Featured with a hot-pluggable QSFP-DD form factor and duplex LC interface, this module integrates built-in DOM/DDM real-time monitoring for optical power, temperature, voltage and laser current. It delivers low power consumption, excellent thermal stability and full interoperability with mainstream 400G switches, routers and optical devices from Cisco, Arista, Juniper, Huawei and more.
Ideal for long-distance data center interconnection, metro core networks, campus backbone links and cloud provider high-speed optical transmission, it provides reliable, cost-effective 400G ultra-long-reach networking solutions.
Full Specification Table
| Item |
Details |
| Model Number |
COP-SI400G-LR4 |
| Standard |
400GBASE-LR4, IEEE 802.3bs, QSFP-DD MSA, CMIS 5.0 |
| Form Factor |
QSFP-DD |
| Data Rate |
400Gbps (4×100G PAM4) |
| Wavelength |
CWDM4: 1271nm / 1291nm / 1311nm / 1331nm |
| Fiber Type |
Single Mode Fiber SMF / G.652 / OS2 |
| Transmission Distance |
10km |
| Interface |

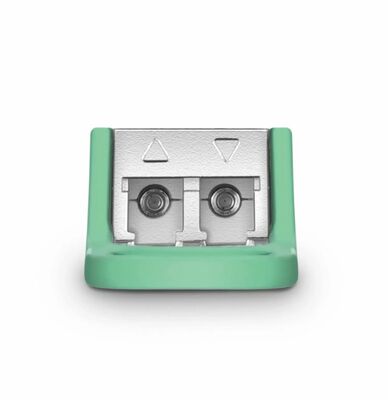

Duplex LC |
| Modulation |
PAM4 |
| Transmit Optical Power |
-2.7 ~ +4.4 dBm |
| Receiver Sensitivity |
≤ -9.0 dBm |
| Power Consumption |
≤ 9W |
| Monitoring |
DDM / DOM Digital Optical Monitoring |
| Operating Temperature |
0°C ~ +70°C (Commercial Grade) |
| Laser Class |
Class 1 Safe Laser |
| Application |
DCI, Metro Core Network, Campus Backbone, Cloud 400G Long-distance Link |
Detailed Homepage Description
Product Introduction
COP-SI400G-LR4 is a next-generation 400G QSFP-DD LR4 silicon photonics optical transceiver designed for high-performance long-distance networking. Using mature CWDM4 four-wavelength multiplexing and advanced PAM4 technology, it delivers reliable 400Gbps transmission up to 10km on ordinary single-mode optical fiber.
Advanced Performance & Stability
With high-quality silicon photonic chips, the module features outstanding heat resistance and ultra-stable signal output. PAM4 modulation greatly improves bandwidth density, effectively reducing overall network construction cost while maintaining low latency for big data transmission, AI computing and cloud service interconnection.
Easy Integration & Compatibility
The standard duplex LC interface allows direct use of existing single-mode fiber resources for fast 400G network upgrade. Hot-plugable QSFP-DD design supports quick installation and replacement without interrupting live network services. It achieves full interoperability with all mainstream 400G switching and routing devices worldwide.
Intelligent Real-Time Monitoring
Built-in comprehensive DDM/DOM function enables engineers to check optical power, temperature, working voltage and laser current anytime, helping locate faults quickly and ensure long-term stable link operation.
Application Scenarios
- Long-distance data center interconnection (DCI)
- Metro and regional core 400G backbone networks
- Enterprise & campus cross-area high-speed optical links
- Cloud provider long-haul transmission infrastructure
- High-performance computing and AI cluster interconnection
