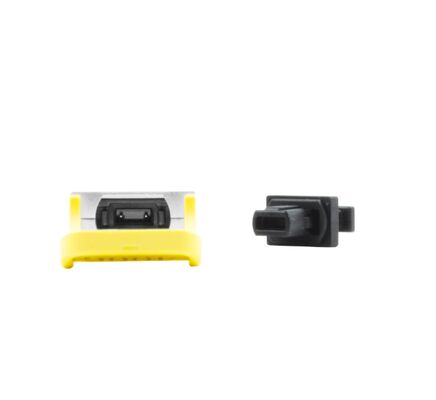

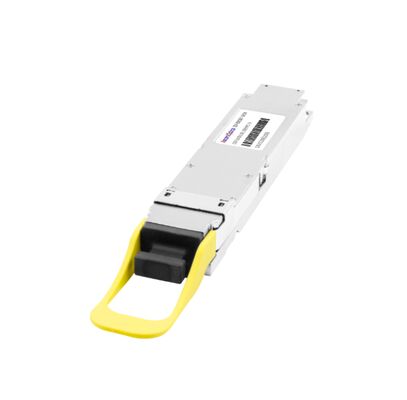

COP-SI800G-LR8 OSFP 800G LR8 Optical Transceiver 1310nm PAM4 SMF 10km MPO-16 DOM

The COP-SI800G-LR8 is a high-performance, hot-pluggable OSFP 800GBASE-LR8 optical transceiver. It operates at 1310nm with PAM4 modulation, supporting 10km transmission over single-mode fiber (SMF). Designed for long-distance data center interconnects (DCI), cloud networks, and AI/HPC infrastructure, it features full DOM/DDM monitoring, strict standard compliance, and universal compatibility with mainstream switches—no brand lock, plug-and-play.

• Form Factor: Hot-pluggable OSFP (Octal Small Form-factor Pluggable)
• Standard: 800GBASE-LR8 (IEEE 802.3ck/df), OSFP MSA, CMIS 5.x, RoHS-2
• Total Bandwidth: 800Gbps (8 × 106.25Gbps PAM4, 53.125GBaud)
• Wavelength: 1310nm (8-channel LAN-WDM, 1304.5–1317.5nm)
• Fiber Type: G.652 Single-Mode Fiber (SMF)
• Reach: Up to 10km (with FEC/KP-FEC)
• Connector: MPO-16 APC
• Laser Type: EML (Electro-Absorption Modulated Laser)
• Power: 3.3V DC; Max consumption ≤16.5W
• Temp: 0°C ~ +70°C (Commercial Grade)
• Diagnostics: Full Digital Optical Monitoring (DOM/DDM)
• Compatibility: Works with Cisco, Juniper, Arista, Huawei, HPE, etc.
• Branding: No private logos/locks—neutral for resale & global distribution

The COP-SI800G-LR8 is a high-performance hot‑pluggable OSFP 800GBASE-LR8 optical transceiver module, designed for long-reach 800G high-speed transmission over single-mode fiber.

Adopting 8×106.25G PAM4 modulation and a nominal 1310nm wavelength with EML laser technology, it supports reliable transmission up to 10 km on standard G.652 SMF. The module adopts a standard MPO‑16 APC interface, fully compliant with IEEE 802.3df, OSFP MSA and CMIS 5.x industry standards.

Built-in complete DOM/DDM real-time monitoring, it enables remote diagnosis of temperature, voltage, optical power and laser bias current. With low power consumption, stable thermal performance and commercial operating temperature (0℃~70℃), it is widely deployed for long-distance data center interconnection, carrier backbone, cross-building campus links, AI GPU clusters and high-performance computing networks.

This is a neutral no-brand version, plug-and-play compatible with all mainstream brand switches, no vendor lock, fully ready for global foreign trade sales and platform listing.
