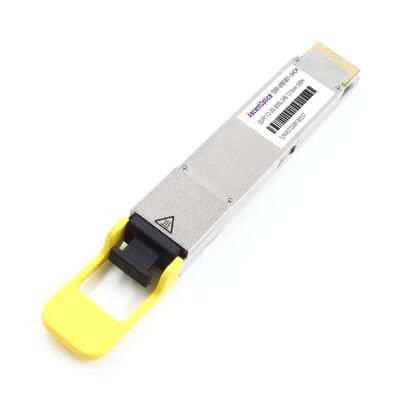

COP-SI800G-FR8 | 800G OSFP FR8 Optical Transceiver, 1310nm, PAM4, 2km Single-Mode Fiber, MPO-16 APC, DOM/DDM, IEEE 802.3df Compliant

The COP-SI800G-FR8 is a high-performance, hot-pluggable Octal Small Form-factor Pluggable (OSFP) optical transceiver module, specifically designed to meet the requirements of 800GBASE-FR8 Ethernet applications. It supports an aggregate data rate of 800 Gbps, achieved through 8 channels of 106.25 Gbps each with PAM4 (4-level Pulse Amplitude Modulation) technology. Operating at a nominal wavelength of 1310nm, this module enables reliable high-speed transmission over Single-Mode Fiber (SMF, G.652) for distances up to 2 kilometers, making it an ideal solution for medium-distance interconnections in hyperscale data centers, AI/ML clusters, high-performance computing (HPC) systems, and enterprise backbone networks.

This transceiver is fully compliant with international industry standards, including IEEE 802.3df (800GBASE-FR8), OSFP MSA Rev 5.0, and CMIS 5.x, ensuring seamless interoperability with all major mainstream network switches and equipment. It features integrated Digital Optical Monitoring (DOM/DDM) functionality, allowing real-time monitoring of key operational parameters, ensuring stable and reliable performance in high-density deployment scenarios. With a lead-free, RoHS-2 compliant design, it meets global environmental standards, suitable for worldwide market distribution.

• Form Factor: Hot-pluggable OSFP (Octal Small Form-factor Pluggable) package, compatible with standard OSFP slots
• Data Rate: Aggregate 800 Gbps, 8 channels × 106.25 Gbps per channel, PAM4 modulation technology
• Wavelength: Nominal 1310nm (laser array), optimized for single-mode fiber transmission
• Transmission Distance: Up to 2km over Single-Mode Fiber (SMF, G.652), supporting FEC (Forward Error Correction)
• Optical Connector: MPO-16 APC (Angled Physical Contact) interface, ensuring low insertion loss and high signal integrity
• Compliance Standards:
  • IEEE 802.3df (800GBASE-FR8) standard
  • OSFP MSA Rev 5.0 (Multi-Source Agreement)
  • CMIS 5.x Management Interface
  • OIF-CEI-112G-VSR-PAM4
  • RoHS-2 compliant (lead-free, environmentally friendly)
• Power Supply: Single 3.3V DC ± 5% input voltage, stable power performance
• Power Consumption: Maximum 16.5W, optimized for low power consumption in high-density data center deployments
• Operating Temperature: 0°C to +70°C (Commercial Grade), suitable for standard data center environments
• Storage Temperature: -40°C to +85°C, ensuring stable storage and transportation performance
• Diagnostic Function: Built-in Digital Optical Monitoring (DOM/DDM), supporting real-time monitoring of temperature, supply voltage, transmit/receive power, laser bias current, and other key parameters
• Compatibility: Universal compatibility with major brand switches (Cisco, Juniper, Arista, Huawei, HPE, etc.) that support OSFP 800G FR8 slots, plug-and-play without additional configuration
• No Brand Restrictions: No private brand logos, silk-screen, or proprietary locks, suitable for neutral branding and resale

The COP-SI800G-FR8 optical transceiver is designed for high-speed, medium-distance interconnection scenarios, widely applicable in the following fields:

• 800GBASE-FR8 Ethernet links in data centers and enterprise networks
• Medium-distance Data Center Interconnects (DCI) between different cabinets or buildings
• High-Performance Computing (HPC) clusters, supporting high-bandwidth data transmission between nodes
• AI/ML (Artificial Intelligence/Machine Learning) server clusters, meeting the high-speed data exchange needs of large-scale models
• Hyperscale cloud computing infrastructure, supporting high-density, low-latency interconnection
• Enterprise and carrier backbone networks, providing reliable 800G high-speed transmission
• Switch-to-switch, switch-to-server, and switch-to-GPU connections in high-end data centers
• Campus network backbone and long-distance office interconnection

• Packaging: Anti-static ESD bag + shockproof foam + hard carton, ensuring safe transportation
• Packaging Quantity: 1 piece per box (customizable for bulk orders)
• Lead Time: In stock for small orders (1-3 pieces); 3-5 working days for bulk orders
• Shipping Methods: DHL, FedEx, UPS, TNT, or as per customer requirements
• Warranty: 3 years from the date of delivery, covering manufacturing defects (excluding damage caused by improper use)
• Storage Instructions: Store in a dry, clean, and anti-static environment, avoid direct sunlight and extreme temperatures

• Ultra-High Bandwidth: 800G aggregate throughput, meeting the growing bandwidth demands of next-generation data centers and AI applications
• Ideal Transmission Distance: 2km over single-mode fiber, filling the gap between short-distance (DR8) and long-distance (LR8) 800G transceivers
• Standards-Compliant: Fully compatible with IEEE 802.3df and OSFP MSA standards, ensuring seamless interoperability with mainstream network equipment
• High Reliability: Adopts high-quality laser and detector components, stable performance, low failure rate, suitable for 24/7 continuous operation
• Low Power Consumption: Optimized power design (≤16.5W), reducing energy consumption and heat generation in high-density deployments
• Full Diagnostics: DOM/DDM function allows real-time monitoring of operational status, facilitating maintenance and troubleshooting
• Neutral Branding: No private brand logos or proprietary locks, suitable for resale, customization, and neutral market promotion
• Global Compliance: RoHS-2, FCC, CE, FDA compliant, applicable to worldwide markets
