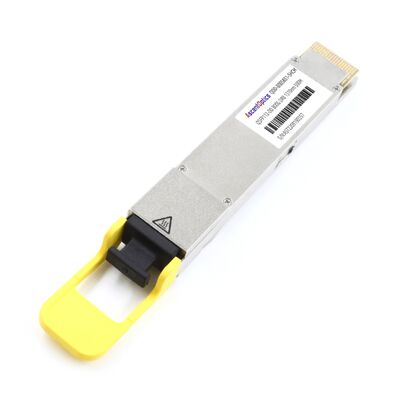

COP-SI800G-DR8 | 800G OSFP DR8 Optical Transceiver 1310nm PAM4 SMF 500m MPO-16

The COP-SI800G-DR8 is a high-performance, hot-pluggable OSFP 8-channel parallel optical transceiver. It is specifically designed for 800GBASE-DR8 Ethernet applications, supporting an aggregate data rate of 800 Gbps (8 × 106.25 Gbps PAM4). Operating at a nominal wavelength of 1310nm, it enables high-speed transmission over Single-Mode Fiber (SMF) for distances up to 500 meters. This module fully complies with industry standards including IEEE 802.3df, OSFP MSA Rev 5.0, and CMIS 5.x, featuring integrated Digital Optical Monitoring (DOM) for real-time diagnostics. It is ideally suited for high-density data center, AI, and HPC interconnects.

• Form Factor: Hot-pluggable OSFP package
• Data Rate: 800 Gbps (8 × 106.25 Gbps) PAM4 modulation
• Wavelength: 1310nm (Laser array)
• Reach: Up to 500m on Single-Mode Fiber (SMF, G.652)
• Connector: MPO-16 APC optical interface
• Compliance:
  • IEEE 802.3df 800GBASE-DR8
  • OSFP MSA Rev 5.0
  • CMIS 5.x Management Interface
  • RoHS-2 compliant (Lead-free)
• Power Supply: Single 3.3V ± 5%
• Power Consumption: ≤ 16W (Max)
• Operating Temperature: 0°C to +70°C (Commercial)
• Built-in: Digital Diagnostic Monitoring (DDM/DOM)
• Application: 800G Ethernet, Data Center Interconnects, HPC, AI/ML Clusters

• 800GBASE-DR8 Ethernet Links
• Data Center Interconnects (DCI)
• High-Performance Computing (HPC) & AI Clusters
• Cloud Computing & Hyperscale Data Centers
• Switch-to-Switch / Switch-to-Server/GPU Connections
• High-Speed Backbone Networks

• Packaging: Anti-static bag + box
• Lead-time: In stock / 3-5 days
• Warranty: 3 years
• Universal compatibility with major brand switches (Cisco, Juniper, Arista, Huawei, HPE, etc.) supporting OSFP 800G DR8 slots.

• Ultra-High Bandwidth: 800G throughput for next-generation data center demands.
• Longer Reach: 500m over SMF, ideal for medium-distance intra-data center links.
• Standards-Compliant: Ensures seamless interoperability with all major networking hardware.
• Silicon Photonics Design: High reliability, low power, and excellent thermal performance.
• Full Diagnostics: Real-time monitoring of temperature, voltage, Tx/Rx power, and bias current.
