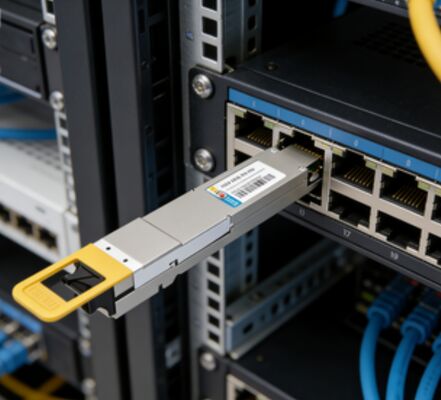

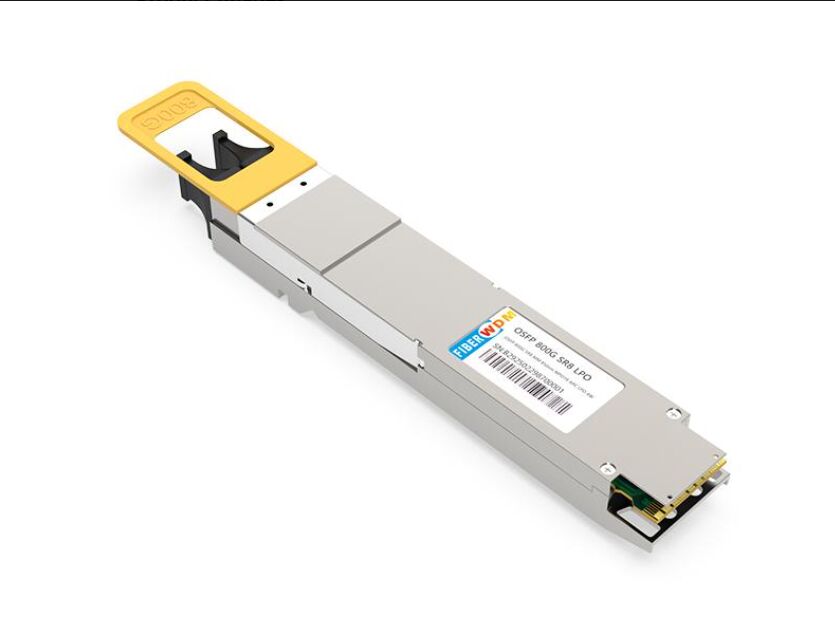

800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM

800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM
800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM
800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM 800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM 800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM 800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM 800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM 800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM 800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM

Large Image :  800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM

Product Details:
Place of Origin: USA
Certification: CE
Model Number: COP-85800G-SR8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: usd6500
Packaging Details: New in box
Delivery Time: 1-2 days
Payment Terms: T/T
Supply Ability: 100-150 pcs
Contact Now

800G OSFP SR8 Optical Transceiver Module, 850nm, 100m, MPO-16, PAM4, DOM

Description
Product Name: Optical Transceiver Module Form Factor: Hot-pluggable OSFP Package
Data Rate: 800 Gbps Wavelength: 850nm
Connector: MPO-16 APC Optical Interface Power Supply: Single 3.3V ± 5%
Fiber Type: Multimode Fiber (MMF) Modulation: PAM4
Highlight:

800G OSFP SR8 optical transceiver

,

850nm MPO-16 transceiver module

,

PAM4 optical transceiver with DOM

COP-85800G-SR8Product Description


The COP-85800G-SR8 is a high-performance, hot-pluggable OSFP (Octal Small Form-factor Pluggable) 8-channel parallel optical transceiver. It is designed for 800GBASE-SR8 Ethernet and high-speed interconnection applications in data centers, supporting an aggregate data rate of 800 Gbps (8 × 106.25 Gbps PAM4). Operating at a nominal wavelength of 850nm, it uses VCSEL (Vertical-Cavity Surface-Emitting Laser) technology for transmission over Multimode Fiber (MMF), enabling link distances of up to 60m on OM3 and 100m on OM4 fiber with FEC. This module fully complies with industry standards including IEEE 802.3df, OSFP MSA Rev 5.0, and CMIS 5.2, featuring integrated Digital Optical Monitoring (DOM) for real-time diagnostics.





Key Features


  • Form Factor: Hot-pluggable OSFP package
  • Data Rate: 800 Gbps (8 × 106.25 Gbps) PAM4 modulation
  • Wavelength: 850nm (VCSEL array)
  • Reach: Up to 60m (OM3) / 100m (OM4) MMF
  • Connector: MPO-16 APC optical interface
  • Compliance:
    • IEEE 802.3df 800GBASE-SR8
    • OSFP MSA Rev 5.0
    • CMIS 5.2 Management Interface
    • OIF-CEI-112G-VSR-PAM4
    • RoHS-2 compliant (Lead-free)

  • Power Supply: Single 3.3V ± 5%
  • Power Consumption: ≤ 15.5W (Max)
  • Operating Temperature: 0°C to +70°C (Commercial)
  • Built-in: Digital Diagnostic Monitoring (DDM/DOM)
  • Application: 800G Ethernet, Data Center Interconnects, HPC, AI/ML Clusters



Technical Specifications



General Specifications


表格
Parameter Value
Part Number COP-85800G-SR8
Package OSFP
Max Data Rate 800 Gbps (8 × 106.25 Gbps)
Transmission Type 8-channel full-duplex
Modulation PAM4
Wavelength 850 nm
Fiber Type Multimode Fiber (MMF)
Transmission Distance 60m (OM3) / 100m (OM4)
Optical Connector MPO-16 APC
Power Supply 3.3 VDC
Power Consumption < 15.5 W
Operating Temp. 0°C ~ 70°C
Storage Temp. -40°C ~ 85°C
Diagnostics Digital DOM/DDM
RoHS Compliant


Optical Specifications (Tx & Rx)


表格
Parameter Min Typ Max Unit
Transmitter (Tx)
Center Wavelength 844 850 863 nm
Average Launch Power / Lane -4.6   +4.0 dBm
Extinction Ratio 3.5     dB
Receiver (Rx)
Wavelength Range 840   870 nm
Rx Sensitivity (max)     -7.0 dBm
Overload +4.0     dBm



Applications


  • 800GBASE-SR8 Ethernet Links
  • Data Center Interconnects (DCI)
  • High-Performance Computing (HPC)
  • AI & Machine Learning Clusters
  • Cloud Computing Infrastructure
  • Enterprise & Carrier Core Networks
  • Switch-to-Switch / Switch-to-Server Connections



Packaging & Compatibility


  • Packaging: Anti-static bag + box
  • Lead-time: In stock / 3-5 days
  • Warranty: 3 years
  • Fully compatible with major brand switches (Cisco, Juniper, Arista, Huawei, HPE, etc.) supporting OSFP 800G SR8 slots.



Why Choose COP-85800G-SR8?


  • Ultra-High Bandwidth: Delivers 800G throughput to meet the demands of next-generation data centers.
  • Proven Technology: Reliable 850nm VCSEL and PIN array design for long-term stability.
  • Standards-Compliant: Ensures seamless interoperability with all major networking equipment.
  • Low Power: Optimized power efficiency for high-density deployments.
  • Full Diagnostics: Real-time monitoring of temperature, voltage, Tx/Rx power, and bias current.



Keywords (for SEO)


800G SR8, OSFP 800G, 800G optical transceiver, 800GBASE-SR8, 850nm module, MPO-16, data center module, PAM4 800G, DOM transceiver, 100m 800G, multimode fiber module, high-speed interconnect, compatible 800G module
