OSFP-400G-DR4-D 400GBASE-DR4 1310nm 500m MPO-12 SMF Optical Transceiver Module

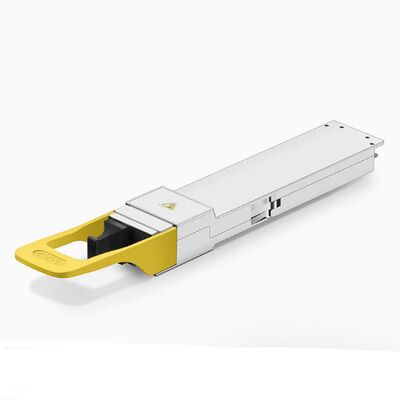

Large Image : OSFP-400G-DR4-D 400GBASE-DR4 1310nm 500m MPO-12 SMF Optical Transceiver Module

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	OSFP-400G-SR4-D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

OSFP-400G-DR4-D 400GBASE-DR4 1310nm 500m MPO-12 SMF Optical Transceiver Module

Description

Product Name:	SFP Optical Transceiver	Part Number:	OSFP-400G-SR4-D
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	OSFP-400G-SR4-D
Highlight:	400GBASE-DR4 optical transceiver module , OSFP-400G-DR4-D SMF transceiver , MPO-12 1310nm optical module

OSFP-400G-DR4-D Overview

The OSFP-400G-DR4-D is a high-performance, hot-pluggable 400GBASE-DR4 optical transceiver module designed for short-reach data center interconnects. Built on the OSFP-RHS form factor, it leverages 4-channel 106.25Gb/s PAM4 technology to deliver a total 400Gbps throughput over single-mode fiber (SMF) at a 1310nm wavelength, supporting transmission distances up to 500 meters via an MPO-12 APC connector.

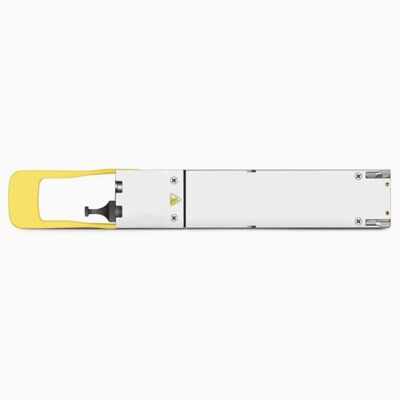

Figure 1 shows the front panel of OSFP-400G-DR4-D.

OSFP-400G-DR4-D 400GBASE-DR4 1310nm 500m MPO-12 SMF Optical Transceiver Module 0

Quick Specs.

Table 1 shows the Quick Specs

Parameter	Value
Form Factor	OSFP-RHS
Data Rate	400Gbps (4×106.25Gb/s PAM4)
Wavelength	1310nm
Transmission Distance	500m over SMF
Connector	MPO-12 APC
Power Consumption	≤10W
Operating Temp	0°C ~ 70°C
Protocol	IEEE 802.3ck, OSFP MSA, CMIS 5.2

Detailed Specification

Parameter	Min	Typ	Max	Unit
Electrical Parameters
Data Rate per Lane	-	106.25	-	Gb/s
Total Aggregate Rate	-	400	-	Gbps
Modulation Format	-	PAM4	-	-
Power Supply	3.135	3.3	3.465	V
Power Consumption	-	-	10	W
Optical Parameters
Transmitter Wavelength	1290	1310	1330	nm
Transmit Optical Power	-2.9	-	4.0	dBm
Receive Sensitivity	-	-	-4.4	dBm
Extinction Ratio	3.5	-	-	dB
Fiber Type	-	SMF (G.652)	-	-
Connector Type	-	MPO-12 APC	-	-
Environmental Parameters
Operating Case Temp	0	-	70	°C
Storage Temp	-40	-	85	°C
Relative Humidity	0	-	85	%
Compliance
Standards	IEEE 802.3ck, OSFP MSA 5.0, CMIS 5.2, RoHS
