Huawei OSFP-400G-SR4-D 400GBASE-SR4-D OSFP Optical Transceiver Module 850nm MPO12 50m

Large Image : Huawei OSFP-400G-SR4-D 400GBASE-SR4-D OSFP Optical Transceiver Module 850nm MPO12 50m

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	OSFP-400G-SR4-D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Huawei OSFP-400G-SR4-D 400GBASE-SR4-D OSFP Optical Transceiver Module 850nm MPO12 50m

Description

Product Name:	SFP Optical Transceiver	Part Number:	OSFP-400G-SR4-D
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	OSFP-400G-SR4-D
Highlight:	Huawei OSFP 400G transceiver module , 400GBASE-SR4-D optical transceiver , OSFP MPO12 transceiver 50m

OSFP-400G-SR4-D Overview

The Huawei OSFP-400G-SR4-D is a high-performance 400Gbps optical transceiver module designed for short-range data center interconnects. It adopts the OSFP-RHS form factor and complies with 400GBASE-SR4-D, OSFP MSA, and CMIS standards. Operating at 850nm with 4-channel PAM4 signaling, it delivers 400Gbps aggregate bandwidth over multimode fiber (MMF) using an MPO12 connector. The module supports transmission distances of 30m on OM3 and 50m on OM4 fiber, with an operating temperature range of 15°C to 70°C and typical power consumption of 8.5W. Ideal for high-density, low-latency 400G Ethernet links in hyperscale data centers and cloud infrastructure, it ensures reliable, high-speed connectivity with industry-standard interoperability.

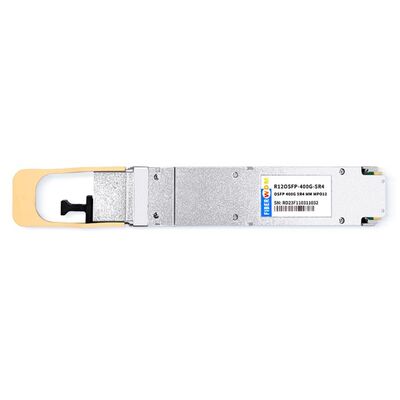

Figure 1 shows the front panel of OSFP-400G-SR4-D .

Quick Specs.

Table 1 shows the Quick Specs

Parameter	Value
Form Factor	OSFP-RHS
Data Rate	400Gbps (4×106.25G PAM4)
Wavelength	850nm
Connector	MPO12
Fiber Type	MMF (OM3/OM4)
Reach	30m@OM3, 50m@OM4
Temp Range	15°C ~ 70°C
Power	~8.5W

Detailed Specification

Parameter	Specification
Product Model	OSFP-400G-SR4-D
Standard	400GBASE-SR4-D, OSFP MSA, CMIS
Form Factor	OSFP-RHS hot-pluggable
Transmission Rate	400Gbps (4 lanes × 106.25Gbps PAM4)
Center Wavelength	850nm
Transmitter	850nm VCSEL array
Receiver	PIN photodetector array
Connector Type	MPO-12 APC
Fiber Mode	Multimode Fiber (MMF)
Max Distance	30m over OM3, 50m over OM4
Operating Case Temp	15°C to 70°C (59°F to 158°F)
Power Supply	+3.3V DC
Power Consumption	Typical 8.5W
BER	≤ 1×10⁻⁶
Tx Optical Power	-4.6dBm to 4dBm (AVG)
Min Extinction Ratio	2.5dB
Compliance	RoHS 2.0
Applications	Data center 400G Ethernet, cloud networks
