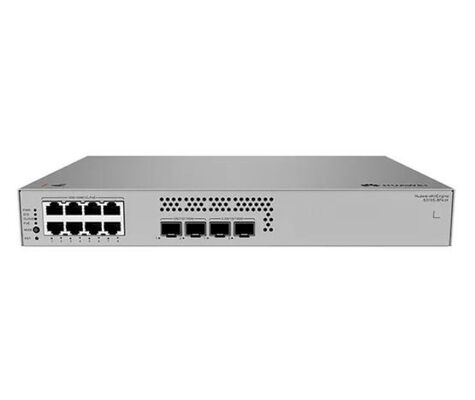

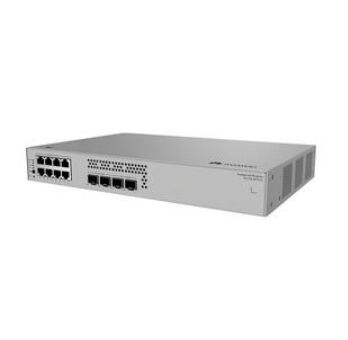

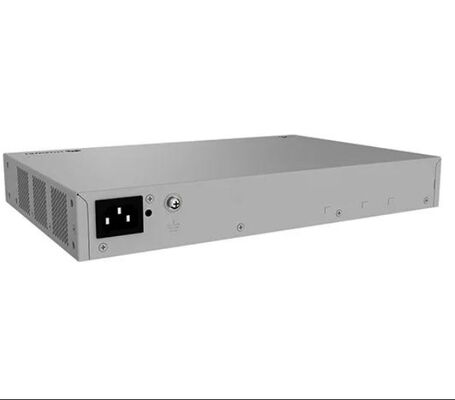

Huawei S310S-8P4X Overview
The S310S-8P4X is an enterprise-class Layer 3 managed Gigabit PoE switch designed for reliable access-layer networking in small offices, surveillance systems, wireless coverage, and intelligent building scenarios. It provides stable, high-speed connectivity with strong security and easy management for modern network environments.
With a switching capacity of up to 240 Gbps and a forwarding rate of 96 Mpps, the switch ensures wire-speed performance and low latency for data, voice, and video services. It is equipped with 8× 10/100/1000 PoE+ RJ45 ports and 4× 10G SFP+ uplink ports, supporting a PoE budget of 240 W to power wireless APs, IP cameras, VoIP phones, and IoT devices without additional power adapters.
The S310S-8P4X supports complete Layer 2/Layer 3 protocols, flexible QoS, ACL security policies, and multiple management methods including Web, CLI, and SNMP. Its compact 1U rack-mount design ensures efficient heat dissipation and stable 24/7 operation.
This switch is an ideal solution for building reliable, cost-effective, and easy-to-manage access networks for small enterprises, retail stores, schools, hotels, and surveillance projects.
5. Product Highlights
240 Gbps Switch Cap
96 Mpps Fwd Rate
8× PoE+ Ports
240W PoE Budget
4× 10G SFP+ Uplink
6. Application Scenarios
Enterprise & Office Network
Provides high-speed Gigabit access and stable PoE power for office terminals, IP phones, and workstations, ensuring smooth operation of daily office services.
IP Surveillance Network
Delivers stable power and data transmission for high-definition IP cameras, suitable for long-term reliable operation in security monitoring systems.
Wireless AP Coverage
Supports centralized power supply for wireless APs, simplifying network deployment and providing stable Wi-Fi coverage for offices and public areas.
7. Full Specifications
Model: S310S-8P4X
Brand: H3C
Switching capacity: Up to 240 Gbps
Forwarding rate: Up to 96 Mpps
Port configuration: 8× 10/100/1000 PoE+ ports, 4× 10G SFP+ uplink ports
PoE standard: IEEE 802.3af/at PoE+
PoE budget: 240 W
MAC address table: 16,000 entries
Jumbo frame: 9216 bytes
Management: Web UI, CLI, SNMP v1/v2c/v3, SSH
Form Factor: 1U rack-mountable
Input voltage: 100–240 VAC
Operating temperature: 0°C to 45°C
Storage temperature: -40°C to 70°C
Relative humidity: 5%–95% non-condensing
Product Basic & Performance Specifications
|
Item
|
Details
|
|
Model
|
S310S-8P4JX
|
|
Brand
|
Huawei (eKitEngine Series)
|
|
Switch Type
|
Layer 2+ Managed Gigabit PoE+ Switch
|
|
Switching Capacity
|
66 Gbps
|
|
Packet Forwarding Rate
|
49 Mpps
|
|
MAC Address Table
|
16,000 Entries
|
|
Jumbo Frame
|
9216 Bytes
|
|
VLAN Support
|
4096 VLANs
|
Port & PoE Specifications
|
Item
|
Details
|
|
Downlink Ports
|
8 x 10/100/1000BASE-T PoE+ RJ45 Ports
|
|
Uplink Ports
|
2 x 10GE SFP+ Ports, 2 x 2.5GE SFP Ports
|
|
PoE Standard
|
IEEE 802.3af / IEEE 802.3at (PoE+)
|
|
Total PoE Power Budget
|
128W
|
|
Max Power Per PoE Port
|
30W
|
Physical & Environmental Specifications
|
Item
|
Details
|
|
Form Factor
|
1U Rack-mount / Desktop / Wall-mount
|
|
Cooling Mode
|
Fanless, Natural Heat Dissipation
|
|
Dimensions (H x W x D)
|
43.6 mm × 320 mm × 210 mm
|
|
Net Weight
|
2.53 kg
|
|
Input Voltage
|
100-240V AC, 50/60Hz; 90-300V AC, 47-63Hz
|
|
Operating Temperature
|
-5°C to +40°C (0-1800m altitude)
|
|
Storage Temperature
|
-40°C to +70°C
|
|
Operating Humidity
|
5%-95% RH, Non-condensing
|
|
Max Power Consumption
|
≤161.56W (Full Load with PoE)
|
Management & Feature Specifications
|
Item
|
Details
|
|
Management Modes
|
Web UI, CLI, SNMP v1/v2c/v3, SSH
|
|
Key Features
|
Static Routing, ERPS, STP/RSTP/MSTP, ACL, QoS, DHCP Snooping, PoE Auto-detection & Management
|
