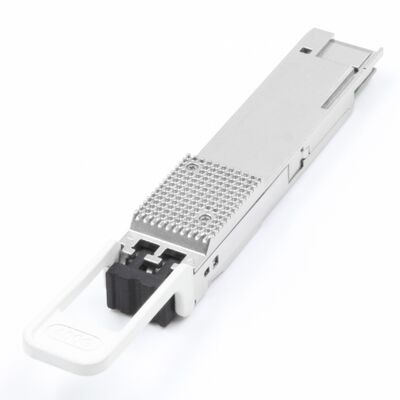

TS-QD-CO4H-ZR0P/400G QSFP-DD OIF High Tx Power ZR Coherent Module | 120km DCI Transceiver

Large Image : TS-QD-CO4H-ZR0P/400G QSFP-DD OIF High Tx Power ZR Coherent Module | 120km DCI Transceiver

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G QSFP-DD OIF High Tx Power ZR

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-QD-CO4H-ZR0P/400G QSFP-DD OIF High Tx Power ZR Coherent Module | 120km DCI Transceiver

Description

Product Name:	SFP Optical Transceiver	Part Number:	400G QSFP-DD OIF High Tx Power ZR
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G QSFP-DD OIF High Tx Power ZR
Highlight:	QSFP-DD coherent transceiver 120km DCI , high Tx power ZR module , OIF compliant optical transceiver

400G QSFP-DD OIF High Tx Power ZR Overview

This 400G QSFP-DD OIF High Tx Power ZR Coherent Module is a high-performance digital coherent optics (DCO) transceiver, fully compliant with OIF 400ZR Implementation Agreement, QSFP-DD MSA and IEEE 400GE standards. It features an enhanced high transmit power range of -6~+1dBm, which significantly improves optical link budget and anti-interference ability for long-distance transmission scenarios.

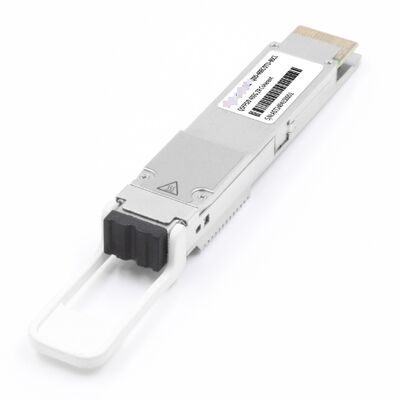

Figure 1 shows the front panel of 400G QSFP-DD OIF High Tx Power ZR .

Quick Specs.

Table 1 shows the Quick Specs

Parameter	Specification
Form Factor	QSFP-DD
Data Rate	400Gbps (4×100Gbps optional)
Transmission Reach	120km (amplified) / 40km (unamplified)
Tx Power Range	-6~+1dBm (High Tx Power)
Wavelength Band	Full C-band Tunable
Power Dissipation	≤18.5W

Detailed Specification

Parameter Category	Parameter Name	Min.	Typ.	Max.	Notes
Electrical Specification	DC Supply Voltage	-0.3	3.3	3.6	QSFP-DD MSA Compliant
	Low Speed I/O Voltage	-0.3	3.3	3.6
Optical Specification	Transmit Power (High Tx)	-6	-2.5	+1	OIF High Tx Power Standard
	Receive Sensitivity (amplified)	-12	-8	0	DWDW Link
	Receive Sensitivity (unamplified)	-20	-15	0	Gray Link
	Wavelength Range	1528.77	-	1567.13	Full C-band,75/100GHz Grid
	OSNR Tolerance	-	-	26	400G ZR Mode
Transmission Performance	Chromatic Dispersion (CD) Tolerance	-2.4	-	2.4	400ZR Standard
	Modulation Format	-	DP-16QAM	-	Dual Polarization 16QAM
Environmental Spec	Operating Case Temperature	0	35	70	Commercial Grade
	Storage Temperature	-40	25	85	Non-condensing
	Relative Humidity	5	45	95	Non-condensing
Mechanical & Other	Power Dissipation	-	16	18.5	Low Power Consumption
	ESD Threshold (HBM-DC Pins)	2000	-	-	Human Body Model
	ESD Threshold (HBM-RF Pins)	1000	-	-
	Connector Type	-	LC Duplex	-	SMF, UPC Polishing
Protocol & Feature	FEC Support	-	CFEC/OFEC	-	Concatenated FEC (OIF Standard)
	Compliance	-	OIF 400ZR/QSFP-DD MSA/IEEE 400GE	-	DOM/DDM Supported
