TS-QDO8-318H-01C/800G QSFP-DD DR8 MPO Transceiver Module, 1310nm SMF 500m For Data Center

Large Image : TS-QDO8-318H-01C/800G QSFP-DD DR8 MPO Transceiver Module, 1310nm SMF 500m For Data Center

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	800G QSFP-DD DR8 MPO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-QDO8-318H-01C/800G QSFP-DD DR8 MPO Transceiver Module, 1310nm SMF 500m For Data Center

Description

Product Name:	SFP Optical Transceiver	Part Number:	800G QSFP-DD DR8 MPO
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	800G QSFP-DD DR8 MPO
Highlight:	QSFP-DD DR8 MPO transceiver module , 1310nm SMF transceiver for data center , 800G QSFP-DD optical transceiver

800G QSFP-DD DR8 MPO Overview

This 800G QSFP-DD DR8 MPO transceiver module is a high-performance optical device designed for next-generation 800G Ethernet and data center interconnection applications. Engineered with advanced 1310nm CWDM4 laser technology, it delivers an aggregate data rate of 800Gbps over 8×100Gbps parallel lanes, supporting 500-meter transmission on single-mode fiber (SMF) with MPO-12/APC connector for seamless fiber cabling integration.

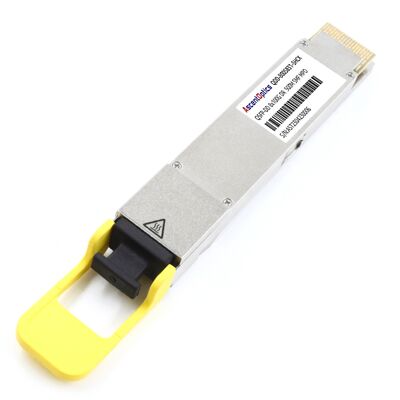

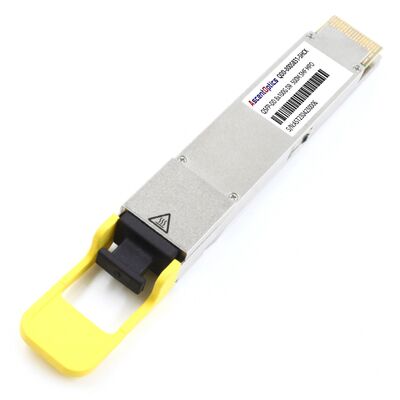

Figure 1 shows the front panel of 800G QSFP-DD DR8 MPO.

TS-QDO8-318H-01C/800G QSFP-DD DR8 MPO Transceiver Module, 1310nm SMF 500m For Data Center 0

TS-QDO8-318H-01C/800G QSFP-DD DR8 MPO Transceiver Module, 1310nm SMF 500m For Data Center 1

Quick Specs.

Table 1 shows the Quick Specs

Parameter	Specification
Form Factor	QSFP-DD
Data Rate	800Gbps
Type	DR8
Connector	MPO-12/APC
Wavelength	1310nm (CWDM4)
Transmission	500m SMF
Temperature	0~70°C (Commercial)
Compliance	MSA, IEEE 802.3ck

Detailed Specification

Parameter	Specification
Optical Transceiver Form Factor	QSFP-DD (Quad Small Form-factor Pluggable Double Density)
Total Data Rate	800Gbps (8×100Gbps lanes)
Optical Type	DR8 (Data Center Reach 8)
Fiber Connector	MPO-12/APC, Single Mode (SMF)
Operating Wavelength	1310nm CWDM4 (4 channels × 1310nm ±5nm)
Maximum Transmission Distance	500m @ Single Mode Fiber (SMF, G.652/G.657A)
Transmit Power (Tx)	-7.0 ~ +1.0 dBm
Receive Sensitivity (Rx)	≤ -15.0 dBm
Operating Temperature	Commercial Grade: 0°C ~ 70°C (0-70C)
Power Consumption	≤ 6.5W
Digital Diagnostics	DDM/DOM Supported (Digital Diagnostic Monitoring)
Compliance & Certification	MSA Compliant, IEEE 802.3ck, RoHS, REACH
Application Compatibility	Data Center, Cloud Computing, 800G Ethernet, High-Speed Switching/Routing
