TS-Q2O-854H-01C/400G QSFP112 SR4 Optical Transceiver 850nm MPO-12 100m OM4 MMF PAM4

Large Image : TS-Q2O-854H-01C/400G QSFP112 SR4 Optical Transceiver 850nm MPO-12 100m OM4 MMF PAM4

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G QSFP112 SR4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-Q2O-854H-01C/400G QSFP112 SR4 Optical Transceiver 850nm MPO-12 100m OM4 MMF PAM4

Description

Product Name:	SFP Optical Transceiver	Part Number:	400G QSFP112 SR4
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G QSFP112 SR4
Highlight:	QSFP112 SR4 optical transceiver 850nm MPO-12 , 400G QSFP112 transceiver OM4 MMF , QSFP112 SR4 transceiver PAM4 100m

400G QSFP112 SR4 Overview

The 400G QSFP112 SR4 Optical Transceiver is a high-performance, hot-pluggable fiber optic module designed for short-reach 400G Ethernet and data center interconnection applications. Adopting advanced 4×106.25Gbps PAM4 modulation technology, it delivers an aggregate data rate of 400Gbps with four full-duplex channels, striking an optimal balance between high bandwidth, low power consumption and high port density.

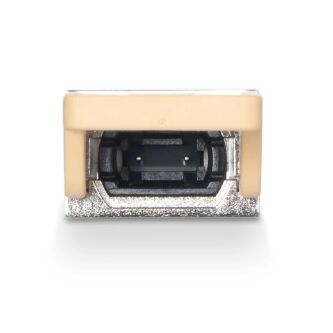

Figure 1 shows the front panel of 400G QSFP112 SR4.

Quick Specs.

Table 1 shows the Quick Specs

Parameter	Value
Data Rate	400Gbps (4×106.25Gbps PAM4)
Wavelength	850nm
Transmission Distance	60m OM3, 100m OM4/OM5 MMF
Connector	MPO-12 APC
Form Factor	QSFP112
Operating Temp	0°C ~ +70°C

Detailed Specification

Category	Parameter	Specification
Optical	Center Wavelength	850nm (VCSEL Array)
	Fiber Type	OM3/OM4/OM5 Multimode Fiber(MMF)
	Max Transmission Distance	60m@OM3, 100m@OM4/OM5 (with FEC)
	Optical Connector	MPO-12 APC (Male)
	Tx Optical Power (OMA)	-2.6 ~ +3.5 dBm
	Rx Sensitivity (OMA)	≤ -4.6 dBm
Electrical	Data Rate	400Gbps aggregate; 4×106.25Gbps per lane
	Modulation Format	PAM4
	Power Supply	3.3V (3.135V~3.465V)
	Power Consumption	＜8W
	Digital Diagnostic	DDM/DOM Supported (I²C)
Mechanical	Form Factor	Standard QSFP112
	Hot Pluggable	Yes
Environmental	Operating Temperature	0°C ~ +70°C (Commercial Grade)
	Storage Temperature	-40°C ~ +85°C
Compliance	Standards	IEEE 802.3db, CMIS, RoHS
	Application Protocols	400GBASE-SR4 Ethernet, InfiniBand
