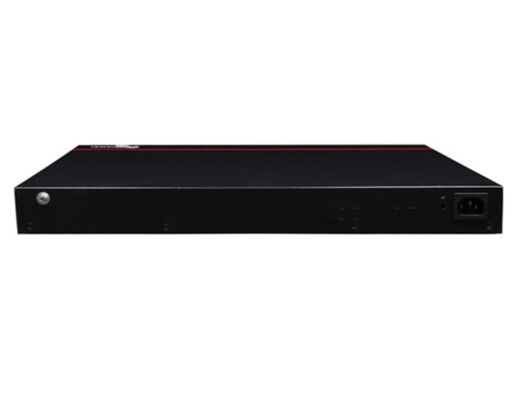

CloudEngine S5735-L48T4X-A1 Network Switch
Built on next-generation, high-performance hardware and powered by Huawei's Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols. These switches provide higher performance and more powerful service processing capabilities for enterprise networks.
Quick Specifications
| Specification |
Value |
| Product Model |
S5735-L48T4X-A1 |
| Memory |
512 MB |
| Flash Memory |
512 MB |
| Typical Power Consumption |
58.7 W |
| Typical Heat Dissipation |
200.29 BTU/hour |
Supported Transceivers
| Model |
Description |
| OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| ESFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
Model Comparison
| Product Model |
Forwarding Performance |
Switching Capacity |
Fixed Ports |
PoE+ Support |
S5735S-L12T4S-A
S5735S-L12P4S-A |
24 Mpps |
32 Gbit/s/336 Gbit/s |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
CloudEngine S5735S-L12P4S-A: Supported
Other: Not supported |
S5735S-L24T4S-A
S5735S-L24P4S-A |
42 Mpps |
56 Gbit/s/336 Gbit/s |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
CloudEngine S5735S-L24P4S-A: Supported
Other: Not supported |
S5735S-L24T4X-A
S5735S-L24P4X-A |
96 Mpps |
128 Gbit/s/336 Gbit/s |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
CloudEngine S5735S-L24P4X-A: Supported
Other: Not supported |
| S5735S-L48T4S-A |
78 Mpps |
104 Gbit/s/432 Gbit/s |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
Not supported |
S5735S-L48T4X-A
S5735S-L48P4X-A |
132 Mpps |
176 Gbit/s/432 Gbit/s |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
CloudEngine S5735S-L48P4X-A: Supported
Other: Not supported |
| S5735S-L32ST4X-A |
108 Mpps |
144 Gbit/s/432 Gbit/s |
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
Not supported |
Detailed Specifications
Dimensions without packaging: Basic: 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) | Maximum: 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging: 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height: 1 U
Maximum power consumption: Not providing PoE function: 76.1 W | 100% PoE loads: 456.1 W (PoE: 380 W)
Maximum heat dissipation: Not providing PoE function: 259.66 BTU/hour | 100% PoE loads: 1556.26 BTU/hour
MTBF: 44.03 years
MTTR: 2 hours
Availability: >0.99999
Noise: Acoustic power: 50 dB(A) | Acoustic pressure: 38.2 dB(A)
Power slots: 0
Fan modules: 2
Redundant power supply: Not supported
Environmental Specifications
Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at 0-1800 m (0-5906 ft.)
Short-term operating temperature: -5°C to +55°C (23°F to 131°F) at 0-1800 m (0-5906 ft.)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity: 5% to 95%, noncondensing
Operating altitude: 0-5000 m (0-16404 ft.)
Power Specifications
Power supply mode: AC built-in
Rated input voltage: AC: 100-240 V AC, 50/60 Hz | High-Voltage DC: 240 V DC
Input voltage range: AC: 90-290 V AC, 45-65 Hz | High-Voltage DC: 190-290 V DC
Maximum input current: 6 A
Additional Features
Console port: RJ45
USB: Supported
PoE: Supported
Heat dissipation: Intelligent fan speed adjustment
Airflow direction: Air intake from left and front, air exhaustion from right
Certification: EMC, Safety, Manufacturing
