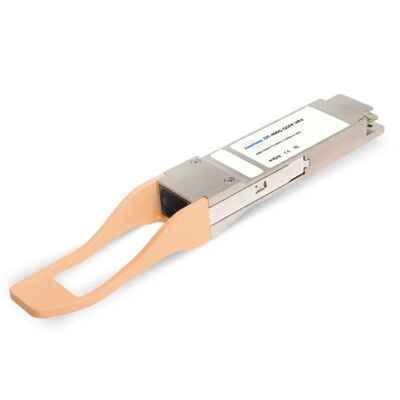

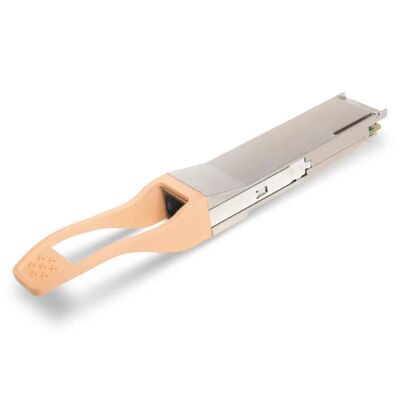

TS-Q2O-854H-01C-V/400G QSFP112 VR4 Optical Transceiver Module with 850nm Wavelength 50m MPO12 Connector for Data Centers

Large Image : TS-Q2O-854H-01C-V/400G QSFP112 VR4 Optical Transceiver Module with 850nm Wavelength 50m MPO12 Connector for Data Centers

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G QSFP112 VR4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-Q2O-854H-01C-V/400G QSFP112 VR4 Optical Transceiver Module with 850nm Wavelength 50m MPO12 Connector for Data Centers

Description

Product Name:	PLC Industrial Control	Part Number:	400G QSFP112 VR4
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G QSFP112 VR4
Highlight:	QSFP112 optical transceiver 850nm 50m , MPO12 multimode transceiver module , 400G QSFP112 transceiver with warranty

400G QSFP112 VR4 Overview

The 400G QSFP112 VR4 optical transceiver is a high-performance pluggable optoelectronic device designed for short-reach 400 Gigabit Ethernet interconnection scenarios, mainly applied in data centers, cloud networks, enterprise core networking and Infiniband systems. Adopting PAM4 modulation technology, it realizes 400G total transmission rate with 4 parallel optical lanes of 106.25Gbps each, and works at the 850nm VCSEL wavelength band matching multimode fiber transmission.

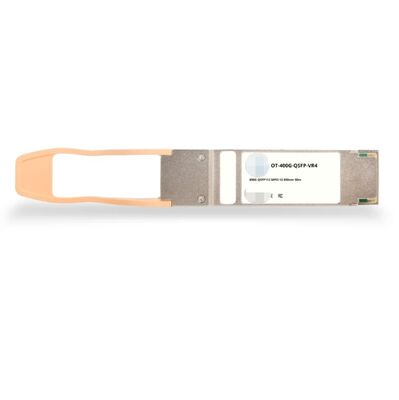

Figure 1 shows the front panel of 400G QSFP112 VR4.

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Value
Form Factor	QSFP112
Data Rate	400G (4×106.25Gbps)
Wavelength	850nm
Max Distance	50m(OM4/OM5),30m(OM3)
Connector	MPO12 APC
Power Consumption	＜8W

Detailed Specification

Category	Parameter	Specification	Unit
Basic	Form Factor	QSFP112	-
Basic	Total Data Rate	400G	bps
Basic	Per Lane Rate	106.25	Gbps
Optical	Center Wavelength	850	nm
Optical	Fiber Type	OM3/OM4/OM5 Multimode Fiber (MMF)	-
Optical	Transmission Distance	30(OM3);50(OM4/OM5)	m
Optical	Connector Type	MPO12 APC	-
Optical	Min Tx Power (AVG)	-4.6	dBm
Optical	Max Tx Power (AVG)	4	dBm
Optical	Rx Sensitivity (OMA)	max(-4.4, -6.2+TECQ)	dBm
Optical	Bit Error Ratio (BER)	2.4e-4	-
Electrical	Supply Voltage	3.13~3.47 (Typ 3.3)	V
Electrical	Power Consumption	≤8	W
Electrical	Differential Impedance	90~110 (Typ 100)	Ohm
Performance	Operating Temperature	0~70	℃
Performance	Storage Temperature	-20~85	℃
Function	DDM/Digital Diagnostic	Supported	-
Function	Hot Pluggable	Supported	-
Compliance	Protocol	IEEE 802.3db 400GBASE-VR4,CMIS 4.0,QSFP112 MSA v2.0	-
Compliance	Environmental	RoHS Compliant	-
