TS-OP-314H-10C/400G OSFP LR4 Finned Top Optical Transceiver with 1310nm Wavelength and 10km Transmission for High-Density Networking

Large Image : TS-OP-314H-10C/400G OSFP LR4 Finned Top Optical Transceiver with 1310nm Wavelength and 10km Transmission for High-Density Networking

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G OSFP LR4(finned top)

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-OP-314H-10C/400G OSFP LR4 Finned Top Optical Transceiver with 1310nm Wavelength and 10km Transmission for High-Density Networking

Description

Product Name:	PLC Industrial Control	Part Number:	400G OSFP LR4(finned Top)
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G OSFP LR4(finned Top)
Highlight:	OSFP LR4 transceiver 10km SMF , OSFP transceiver with heat dissipation , 1310nm OSFP optical transceiver

400G OSFP LR4(finned top) Overview

This 400G OSFP LR4 finned top optical transceiver is engineered with advanced heat dissipation design, ideal for high-density networking equipment in air-cooled scenarios like data center switches. It complies with OSFP MSA, IEEE 802.3bs and CMIS 4.0 industry standards, adopting PAM4 modulation technology with 8 electrical channels of 53.125Gbps multiplexed into 4 optical channels of 106.25Gbps, supporting a maximum data rate of 425Gbps.

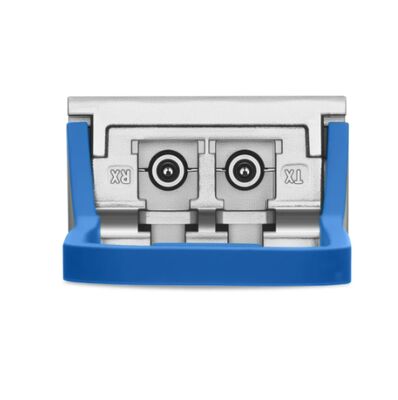

Figure 1 shows the front panel of 400G OSFP LR4(finned top).

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Specification
Data Rate	400Gbps (max 425Gbps)
Form Factor	OSFP (Finned Top)
Wavelength	1271/1291/1311/1331nm
Transmission Distance	10km
Fiber Type	Single Mode Fiber (SMF)
Power Consumption	≤10W

Detailed Specification

Category	Parameter	Min	Typ	Max	Unit
Basic	Data Rate	-	400	425	Gbps
Basic	Form Factor	-	OSFP Finned Top	-	-
Basic	Connector Type	-	Duplex LC/UPC	-	-
Basic	Fiber Type	-	Single Mode Fiber (SMF)	-	-
Optical	Center Wavelength	-	1271/1291/1311/1331	-	nm
Optical	Transmission Distance	-	10	-	km
Electrical	Power Supply Voltage	3.135	3.3	3.6	V
Electrical	Power Consumption	-	-	10	W
Electrical	Power Supply Current	-	-	3190	mA
Temperature	Operating Temperature	0	-	70	°C
Temperature	Storage Temperature	-40	-	85	°C
Compliance	MSA/Standard	OSFP MSA, IEEE 802.3bs, CMIS 4.0	-	-	-
Function	Digital Monitoring	DOM/DDM Supported	-	-	-
