TS-OPO8-854H-01C/.400G OSFP SR8 Optical Transceiver Module with 850nm Wavelength 100m MPO-16 Connector for 400Gbps PAM4 Data Centers

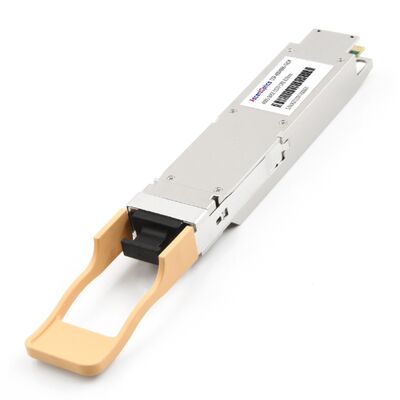

Large Image : TS-OPO8-854H-01C/.400G OSFP SR8 Optical Transceiver Module with 850nm Wavelength 100m MPO-16 Connector for 400Gbps PAM4 Data Centers

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G OSFP SR8

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-OPO8-854H-01C/.400G OSFP SR8 Optical Transceiver Module with 850nm Wavelength 100m MPO-16 Connector for 400Gbps PAM4 Data Centers

Description

Product Name:	PLC Industrial Control	Part Number:	400G OSFP SR8
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G OSFP SR8
Highlight:	OSFP SR8 optical transceiver 400G data center , 850nm OSFP transceiver MPO-16 connector , 400G optical transceiver with 100m reach

400G OSFP SR8 Overview

The 400G OSFP SR8 optical transceiver is a high-performance short-reach interconnection device optimized for modern data centers, cloud networks and high-performance computing (HPC) scenarios. It adopts advanced PAM4 modulation technology with 8 parallel signal lanes of 53.125Gbps per lane, achieving an aggregate bandwidth of 400Gbps, and also supports 200G NRZ mode for flexible network deployment.

Figure 1 shows the front panel of 400G OSFP SR8.

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Specification
Data Rate	400Gbps (PAM4)
Wavelength	850nm
Transmission Distance	70m(OM3)/100m(OM4)
Connector	MPO-16/MTP
Form Factor	OSFP
Operating Temp	0~70℃

Detailed Specification

Category	Parameter	Min	Max	Unit	Specification
Optical	Transmitter Type	-	-	-	VCSEL
Optical	Receiver Type	-	-	-	PIN
Optical	Tx Power	-6	4	dBm	-
Optical	Rx Power	-	-7.9	dBm	-
Electrical	Data Rate per Lane	-	53.125	Gbps	-
Electrical	Power Supply Voltage	3.14	3.46	V	3.3V typical
Electrical	Power Consumption	-	12	W	10W typical
Mechanical	Connector Type	-	-	-	MPO-16/MTP
Mechanical	Form Factor	-	-	-	OSFP
Environmental	Operating Temperature	0	70	℃	-
Environmental	Storage Temperature	-40	85	℃	-
Environmental	Relative Humidity	0	85	%	-
Compliance	Protocol Standard	-	-	-	IEEE 802.3cd/bs, OSFP MSA
Compliance	Management Interface	-	-	-	SFF-8636
Compliance	Electrical Standard	-	-	-	SFF-8679
