TS-OPO-854H-01C/400Gbps OSFP Transceiver with 850nm Wavelength and MPO Connector for High-Speed Data Transmission

Large Image : TS-OPO-854H-01C/400Gbps OSFP Transceiver with 850nm Wavelength and MPO Connector for High-Speed Data Transmission

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G OSFP SR4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-OPO-854H-01C/400Gbps OSFP Transceiver with 850nm Wavelength and MPO Connector for High-Speed Data Transmission

Description

Product Name:	PLC Industrial Control	Part Number:	400G OSFP SR4
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G OSFP SR4
Highlight:	OSFP SR4 transceiver 850nm MPO , 400G optical module multimode , SFP transceiver with 50m range

400G OSFP SR4 Overview

The 400G OSFP SR4 Optical Transceiver is a high-performance hot-pluggable module engineered for short-reach 400 Gigabit Ethernet and high-performance computing (HPC) applications in data centers, telecom central offices and AI clusters. Adopting advanced PAM4 modulation technology, it realizes 4×100Gbps parallel transmission with an aggregate data rate of 400Gbps, operating at a central wavelength of 850nm over multimode fiber (MMF).

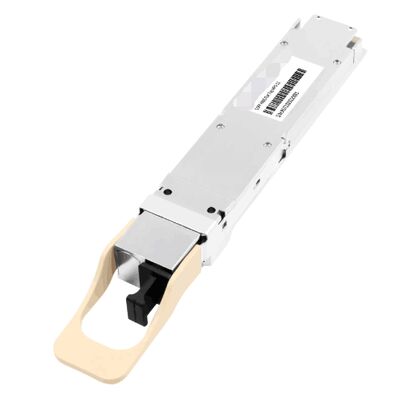

Figure 1 shows the front panel of 400G OSFP SR4.

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Value
Form Factor	OSFP
Data Rate	400Gbps
Wavelength	850nm
Transmission Distance	30m@OM3,50m@OM4
Connector Type	MPO-12
Fiber Type	Multimode (MMF)

Detailed Specification

Category	Parameter	Min	Typ	Max	Unit	Note
General	Operating Temperature	0	-	70	℃	Case temp
General	Storage Temperature	-40	-	85	℃	-
General	Power Supply Voltage	3.135	3.3	3.465	V	-
General	Max Power Consumption	-	-	8.5	W	400G mode
General	Modulation Technology	-	PAM4	-	-	4×100G lanes
Optical	Center Wavelength	844	850	863	nm	-
Optical	Minimum Tx Power	-4.6	-	4	dBm	AVG
Optical	Rx Sensitivity (OMA)	-4.6	-	-	dBm	-
Optical	Extinction Ratio	2.5	-	-	dB	-
Transmission	Operating Distance (OM3)	2	-	30	m	-
Transmission	Operating Distance (OM4)	2	-	50	m	-
Interface	Connector Type	-	MPO-12	-	-	APC
Interface	Serial Interface	-	I2C	-	-	100-400kHz
Performance	Bit Error Ratio (BER)	-	-	1e-6	-	-
