TS-OPO-854H-01C-V/400G OSFP VR4 Transceiver Module with 850nm VCSEL for 50m OM4 Multimode Fiber and PAM4 Modulation in Data Centers

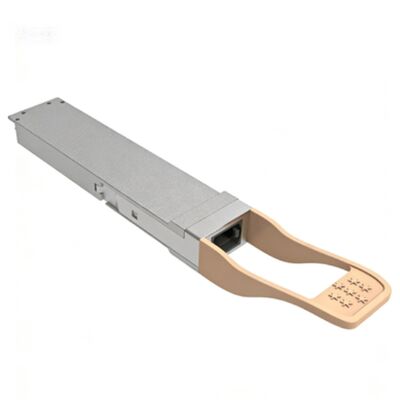

Large Image : TS-OPO-854H-01C-V/400G OSFP VR4 Transceiver Module with 850nm VCSEL for 50m OM4 Multimode Fiber and PAM4 Modulation in Data Centers

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G OSFP VR4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-OPO-854H-01C-V/400G OSFP VR4 Transceiver Module with 850nm VCSEL for 50m OM4 Multimode Fiber and PAM4 Modulation in Data Centers

Description

Product Name:	PLC Industrial Control	Part Number:	400G OSFP VR4
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G OSFP VR4
Highlight:	OSFP VR4 transceiver module 400G , OSFP transceiver for data center , Multimode fiber transceiver 850nm

400G OSFP VR4 Overview

The 400G OSFP VR4 is a high-performance pluggable optical transceiver module optimized for short-reach high-speed interconnection in modern data centers, AI/ML platforms and HPC clusters. It adopts 4×106.25Gbps PAM4 modulation technology with 850nm VCSEL array and PIN photo detector array, delivering a total data rate of 400Gbps for full-duplex transmission.

Figure 1 shows the front panel of 400G OSFP VR4.

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Specification
Form Factor	OSFP
Data Rate	4×106.25Gbps (400G total)
Wavelength	850nm VCSEL
Transmission Distance	50m@OM4, 30m@OM3
Operating Temp	0~70℃
Power Consumption	≤9W
Connector	MPO-12 APC
Modulation	PAM4

Detailed Specification

Category	Parameter	Min	Typ	Max	Unit
Electrical	Supply Voltage	3.13	3.3	3.47	V
Electrical	Power Dissipation	/	7.5	8	W
Electrical	Differential Impedance	90	100	110	Ohm
Optical	Wavelength	842	850	863	nm
Optical	Launch Power per Lane	-4.6	/	4	dBm
Optical	Receive Power per Lane	-6.3	/	4	dBm
Optical	Extinction Ratio	2.5	/	/	dB
Transmission	Data Rate per Lane	/	106.25	/	Gbps
Transmission	Distance @OM3	/	/	30	m
Transmission	Distance @OM4	/	/	50	m
Environmental	Operating Temperature	0	/	70	℃
Environmental	Storage Temperature	-20	/	85	℃
Environmental	Humidity (Non-condensing)	5	/	95	%
