TS-QD8-314H-40C/400G QSFP-DD ER8 Transceiver 1310nm 40km SMF LC Duplex DDM

Large Image : TS-QD8-314H-40C/400G QSFP-DD ER8 Transceiver 1310nm 40km SMF LC Duplex DDM

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G QSFP-DD ER8

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-QD8-314H-40C/400G QSFP-DD ER8 Transceiver 1310nm 40km SMF LC Duplex DDM

Description

Product Name:	PLC Industrial Control	Part Number:	400G QSFP-DD ER8
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G QSFP-DD ER8
Highlight:	QSFP-DD ER8 transceiver 40km SMF , QSFP-DD optical transceiver with DDM , 1310nm QSFP-DD transceiver LC duplex

400G QSFP-DD ER8 Overview

This 400G QSFP-DD ER8 transceiver module is a high-performance, hot-pluggable optical transceiver designed for 400Gbps data transmission over 40km single mode fiber (SMF) at 1310nm wavelength. Fully compliant with QSFP-DD MSA and IEEE 802.3bs industry standards, it features LC duplex connector with optional APC/UPC polishing, and supports DDM/DOM real-time monitoring for voltage, temperature, Tx/Rx power and laser bias current—enabling easy network management and fault diagnosis.

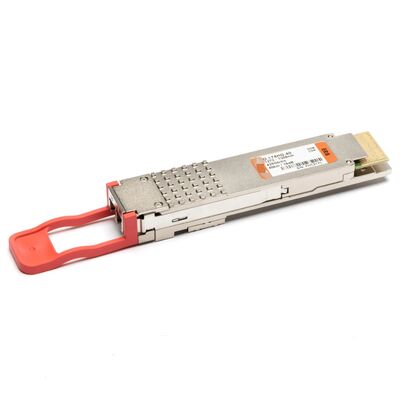

Figure 1 shows the front panel of 400G QSFP-DD ER8

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Specification
Form Factor	QSFP-DD
Data Rate	400Gbps
Wavelength	1310nm
Transmission	40km SMF
Connector	LC Duplex
Digital Monitoring	DDM/DOM Support
Fiber Type	Single Mode Fiber

Detailed Specification

Parameter	Specification
Transceiver Form Factor	QSFP-DD (Quad Small Form-factor Pluggable-Double Density)
Nominal Data Rate	400Gbps
Wavelength	1310nm (CWDM4/ER8 Tunable)
Maximum Transmission Distance	40km @ Single Mode Fiber (SMF, G.652/G.655/G.657)
Fiber Optic Connector	LC Duplex, APC/UPC Option
Digital Monitoring	DDM/DOM (Digital Diagnostic Monitoring/Digital Optical Monitoring) Supported
Operating Temperature	Commercial: 0~70℃; Industrial: -40~85℃ (Optional)
Power Supply Voltage	3.3V ±5%
Transmit Power (Tx)	-8~+3 dBm
Receive Sensitivity (Rx)	≤-19 dBm
Link Protocol	Compliant with QSFP-DD MSA, IEEE 802.3bs
Encapsulation	Metal Casing, Hot Pluggable
Application	Data Center, Metro Network, 5G Backhaul, Optical Transport Network
