TS-QDO8-854H-01C/400G QSFP-DD SR8 Transceiver 850nm 100m MMF For Data Center

Large Image : TS-QDO8-854H-01C/400G QSFP-DD SR8 Transceiver 850nm 100m MMF For Data Center

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G QSFP-DD LR8.

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-QDO8-854H-01C/400G QSFP-DD SR8 Transceiver 850nm 100m MMF For Data Center

Description

Product Name:	PLC Industrial Control	Part Number:	400G QSFP-DD LR8.
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G QSFP-DD LR8.
Highlight:	QSFP-DD SR8 transceiver 850nm 100m , QSFP-DD transceiver for data center , SFP optical transceiver with warranty

400G QSFP-DD LR8 1310nm 10km Overview

This 400G QSFP-DD SR8 optical transceiver is a high-performance, pluggable module designed for 400Gbps high-speed data transmission applications, compliant with QSFP-DD MSA and IEEE 802.3bs 400GBASE-SR8 standards. Operating at the 850nm wavelength with VCSEL technology, it supports 100-meter transmission over OM3/OM4 multimode fiber (MMF) via an MTP/MPO-16 interface, delivering low latency and high bandwidth for data center interconnects, 400G Ethernet switches, and enterprise high-speed networking infrastructure.

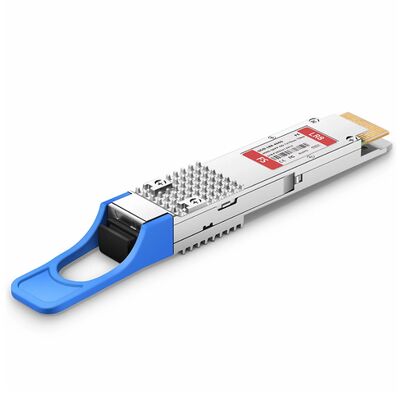

Figure 1 shows the front panel of 400G QSFP-DD LR8.

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Specification
Form Factor	QSFP-DD
Data Rate	400Gbps
Wavelength	850nm
Transmission Distance	100m
Fiber Type	MMF (OM3/OM4)
Interface	MTP/MPO-16

Detailed Specification

Parameter	Details
Optical Transceiver Type	400G QSFP-DD SR8
Nominal Bit Rate	400Gbps
Wavelength	850nm (VCSEL)
Transmission Distance	100m @ OM3, 100m @ OM4 MMF
Form Factor	QSFP-DD (Quad Small Form-factor Pluggable-Double Density)
Fiber Optic Interface	MTP/MPO-16 (Female), Parallel Multimode
Compliance	QSFP-DD MSA, IEEE 802.3bs 400GBASE-SR8
Operating Temperature	0°C ~ 70°C (Commercial Grade)
Power Supply	3.3V DC
Digital Diagnostics	DDM/DOM Supported
Connector Type	MTP/MPO-16
Application	400G Ethernet, Data Center Interconnect, High-Speed Switching
