TS-QDO-314H-10C/400G QSFP-DD DR4++ Transceiver 1310nm 10km Single Mode Optical Module

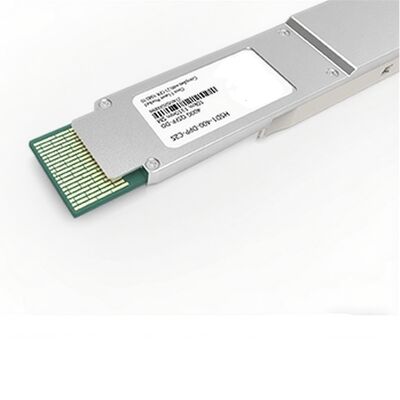

Large Image : TS-QDO-314H-10C/400G QSFP-DD DR4++ Transceiver 1310nm 10km Single Mode Optical Module

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	400G QSFP-DD DR4++

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TS-QDO-314H-10C/400G QSFP-DD DR4++ Transceiver 1310nm 10km Single Mode Optical Module

Description

Product Name:	PLC Industrial Control	Part Number:	400G QSFP-DD DR4++
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	400G QSFP-DD DR4++
Highlight:	QSFP-DD DR4++ transceiver 10km single mode , 1310nm optical module with warranty , SFP transceiver QSFP-DD DR4++ 400G

400G QSFP-DD DR4++ 1310nm 10km Overview

This 400G QSFP-DD DR4++ optical transceiver operates at 1310nm with a 10km transmission distance over single mode fiber, designed for high-speed data center interconnections and cloud network infrastructures. It features a 4×100Gbps lane architecture, complies with IEEE 802.3bs and QSFP-DD MSA standards, and supports DDM/DOM real-time monitoring via SFF-8636. Equipped with MTP/MPO-12 connectors and EML/PIN-TIA optical components, the module delivers stable, high-performance 400G data transmission, meeting the bandwidth demands of modern 5G, cloud computing and high-speed enterprise networks with commercial-grade temperature tolerance (0°C~70°C).

Figure 1 shows the front panel of 400G QSFP-DD DR4++.

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Specification
Form Factor	QSFP-DD
Data Rate	400G
Type	DR4++
Wavelength	1310nm
Transmission	10km
Fiber Type	SMF

Detailed Specification

Parameter	Details
Optical Form Factor	QSFP-DD (Quad Small Form-factor Pluggable - Double Density)
Nominal Bit Rate	400Gbps (4×100Gbps lanes)
Optical Transceiver Type	DR4++ (Dual Rate 4-lane, enhanced)
Operating Wavelength	1310nm (CWDM4, 4 wavelengths in 1310nm band)
Maximum Transmission Distance	10km @ Single Mode Fiber (SMF, G.652/G.657)
Fiber Connector	MTP/MPO-12 (APC/UPC, female)
Operating Temperature	0°C ~ 70°C (Commercial Grade, 0-70C)
Power Supply Voltage	3.3V ±5%
Digital Diagnostics	Compliant with SFF-8636, DDM/DOM supported
Protocol Compliance	IEEE 802.3bs, QSFP-DD MSA, CWDM4 MSA
Laser Type	EML (Electro-absorption Modulated Laser)
Receiver Type	PIN-TIA Photodiode
