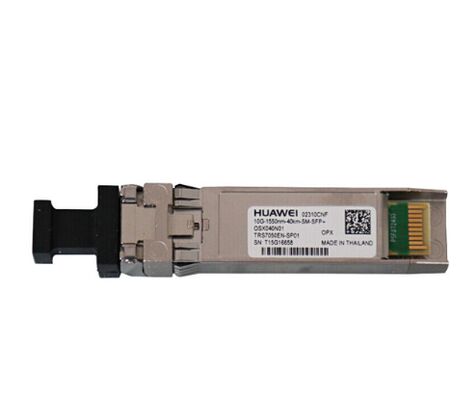

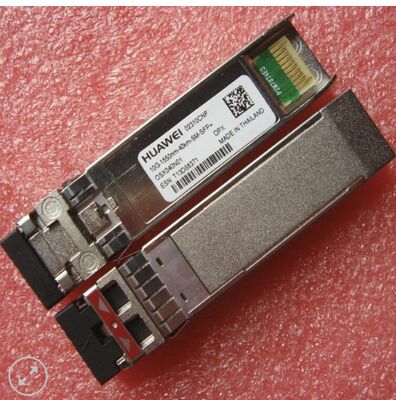

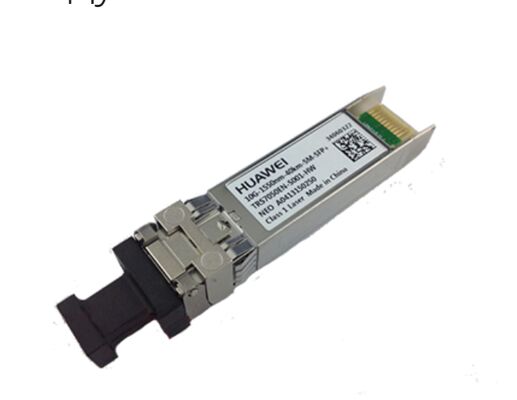

Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC)

Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC)
Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC)
Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC)

Large Image :  Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC)

Product Details:
Place of Origin: USA
Brand Name: HUAWEI
Certification: CE
Model Number: OSX040N01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $200-$235
Delivery Time: 1-2days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 500 per week
Contact Now

Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC)

Description
Condition: Original New Model: OSX040N01
Data Rate: 10G Transmission Mode: Single-mode
Connector Type: LC Wavelength: 1550nm
Brand: Huawei Power Budget: 24 DB
Highlight:

Single-mode optical transceiver module

,

1550nm LC transceiver

,

40km range optical transceiver



Huawei OSX040N01 Overview



Huawei's OSX040N01 is a high-performance SFP+ module designed for 10G Ethernet applications. With a single-mode, 1550nm wavelength and a transmission distance of 40km, this module provides reliable and high-speed connectivity. The LC interface ensures easy and secure plug-and-play installation.

Quick Spec

Table 1: Quick Spec of OSX040N01

Module Type SFP+
Data Rate 10G
Transmission Mode Single-mode
Wavelength 1550nm
Connector type LC


Huawei OSX040N01 Specification

OSX040N01 Specifications
Product Model OSX040N01
Brand Huawei
Form factor SFP+
Data Rate 10G
Transmission Medium Single-mode
Wavelength 1550nm
DDM options Supported
Connector Type LC
Operating Temperature 0°C to 70°C (32°F to 158°F)
Diagnostics Monitoring Supported
Optical Interface Duplex LC
Compatibility Multivendor Compatible
DOM Support Yes
Power Budget 24 dB
Target transmission distance Single-mode fiber: 40 km
Supported Protocols Ethernet, SONET/SDH, Fiber Channel, OTN
Transmission rate 10Gbit/s
Maximum Tx optical power 4.0 dBm
Minimum extinction ratio 3.0 dB
Weight 20g (0.02 kg)



Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) 6
Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) 7



Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) 8

Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) 9

Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) 10

Optical Transceiver OSX040N01 02310CNF Single-mode Module(1550nm 40km LC) 11
