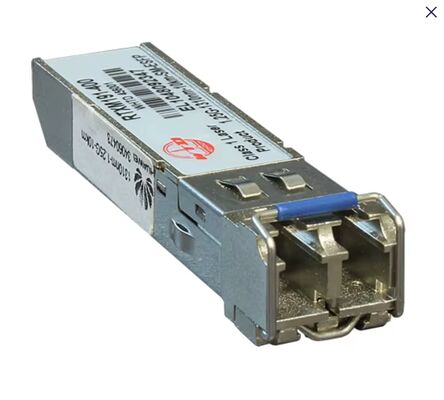

Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector

Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector
Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector

Large Image :  Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector

Product Details:
Place of Origin: USA
Brand Name: HUAWEI
Certification: CE
Model Number: SFP-FE-SX-MM1310
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $200-$235
Delivery Time: 1-2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 per week
Contact Now

Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector

Description
Condition: Original New Model: SFP-FE-SX-MM1310
Center Wavelength (nm): 1310 Standard Compliance: 100base-FX
Connector Type: LC Use: Indoor
Brand: Huawei Max Distance: 100m
Highlight:

QSFP28 100G optical transceiver module

,

100GBASE-SR4 MMF transceiver

,

MPO-12 UPC optical module



Huawei SFP-FE-SX-MM1310 Overview



Huawei SFP-FE-SX-MM1310 is Optical Transceiver. It’s a Multi-mode Module.

Quick Specs

Table 1 shows the Quick Specs.

Product Code SFP-FE-SX-MM1310
Transceiver form factor SFP
Transmission speed Fast Ethernet
Operating temperature 0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm) 145 x 80 x 35

The Supported Switches

Figure 1. SFP-FE-SX-MM1310 can be installed in the switch’s SFP slot.



Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector 6

Table 2 shows the Huawei hot switches which support SFP-FE-SX-MM1310.

Model Description
S2700-26TP-EI-DC 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, DC -48V
S2700-52P-EI-AC 48 x Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V
S2700-26TP-EI-AC 4 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, AC 110/220V
S2700-9TP-PWR-EI 8 x Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V
S2700-26TP-PWR-EI 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module
S2700-9TP-EI-AC 8 x Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V
S3700-28TP-EI-AC 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V
S3700-28TP-SI-AC 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V
S3700-28TP-PWR-SI 24 x Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,with 500W AC power supply

Compare to Similar Items

Table 3 shows the comparison of SFP-FE-SX-MM1310 and eSFP-FE-LX-SM1310.

Item SFP-FE-SX-MM1310 eSFP-FE-LX-SM1310
Transceiver form factor SFP eSFP
Transmission speed Fast Ethernet 100 Mbit/s
Center wavelength (nm) 1310 1310
Standard compliance 100base-FX 100base-LX
Connector type LC LC

Applicable cable and maximum

transmission distance

 Multimode fiber (50 μm or 62.5 μm diameter): 2 km Single-mode fiber: 15 km
Transmit power (dBm) -19.0 to -14.0 -15.0 to -8.0
Maximum receiver sensitivity (dBm) -30.0 -31.0
Overload power (dBm) -14.0 -8.0
Extinction ratio (dB) 10 8.2
Operating temperature 0°C to 70°C (32°F to 158°F) 0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm) 145 x 80 x 35 110 x 75 x 40

Huawei SFP-FE-SX-MM1310 Specification

SFP-FE-SX-MM1310 Specification
Transceiver form factor SFP
Transmission speed Fast Ethernet
Center wavelength (nm) 1310
Standard compliance 100base-FX
Connector type LC
Applicable cable and maximum transmission distance Multimode fiber (50 μm or 62.5 μm diameter): 2 km
Transmit power (dBm) -19.0 to -14.0
Maximum receiver sensitivity (dBm) -30.0
Overload power (dBm) -14.0
Extinction ratio (dB) 10
Operating temperature 0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm) 145 x 80 x 35


Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector 7
Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector 8



Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector 9

Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector 10

Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector 11

Huawei SFP-FE-SX-MM1310 Optical Transceiver Module with 1310nm Wavelength Fast Ethernet and LC Connector 12
