Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas

Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas
Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas

Large Image :  Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas

Product Details:
Place of Origin: China
Brand Name: Aruba
Certification: CE
Model Number: R8M98A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 2-3 days
Payment Terms: T/T
Contact Now

Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas

Description
Product Name: Optical Transceiver Module Part Number: R8M98A
Shipment: DHL Condition: NewJW054A, Aruba AP-270 Series Mount Kit, Outdoor/Wall Mount/Bracket
Lead Time: 2-3 Days Warranty: 1 Year
Keywords: R8M98A
Highlight:

Aruba AP-503 Wi-Fi 6E access point

,

Tri-radio 2x2 wireless access point

,

802.11ax campus access point


Aruba R8M98A Overview

The HPE Aruba AP-503 (RW) (part number R8M98A) is a compact, cost - effective dual - radio 2×2:2 802.11ax (Wi-Fi 6) indoor access point. It delivers a maximum combined data rate of 1.49 Gbps, leveraging technologies like OFDMA, MU - MIMO, and Target Wake Time to boost multi - user efficiency. It supports WPA3, Enhanced Open, and Dynamic Segmentation for robust security, and enables zero - touch provisioning via Aruba Central. It comes with 3×1 GbE ports (1 uplink + 2 PoE - PSE) and has an optional USB LTE Cat 12 modem for cellular failover. It also offers IoT - ready Bluetooth 5 and Zigbee support with an optional radio dongle, and is suitable for ceiling or rail mounting.



Supported Devices

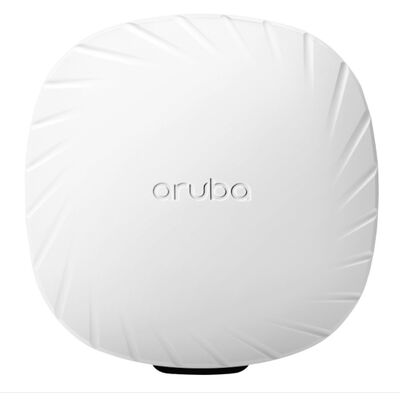

Figure 1 shows the front panel of R8M98A .

Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas 0

Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas 1


Quick Speces

Brand Aruba
Model R7J38A
Radios Tri-radio
Wi-Fi Technology 802.11ax (Wi-Fi 6E)
Antenna Internal



Aruba R8M98A Specification

R8M98A
Category Specifications
Product Model HPE Aruba AP-503 (RW), Part Number: R8M98A
Wireless Standard IEEE 802.11ax (Wi-Fi 6)
Radio Configuration Dual - radio (2.4 GHz and 5 GHz), 2×2:2 MIMO
Peak Throughput 2.4 GHz (HE40): up to 574 Mbps; 5 GHz (HE80): up to 1.2 Gbps; Combined: 1.49 Gbps
Security WPA, WPA2, WPA3 - Personal, WPA3 - ENT, WPA3 - SAE, Enhanced Open, Dynamic Segmentation
Interfaces 3×1 GbE ports (1 uplink, 2 PoE - PSE), 1×USB 2.0 Type - A (for optional LTE modem)
Antennas Integrated omni - directional; 3.9 dBi (2.4 GHz), 5.1 dBi (5 GHz)
Power 12 V DC or PoE PD (802.3af/at); Max power consumption: 15.4 W, typical: 10.9 W
Operating Environment 0 °C–50 °C; 5%–93% relative humidity (non - condensing)
Form Factor Indoor, desktop/ceiling/rail - mountable; Dimensions: 5.7"×5.7"×1.4"; Color: White
Client Capacity 256 associated clients per radio
Key Technologies OFDMA, MU - MIMO, Beamforming, Target Wake Time, Zero Touch Provisioning







Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas 2

Aruba AP-503 Wi-Fi 6E Campus Access Point with Tri-radio 2x2, 802.11ax, and Internal Antennas 3
