R4W43A, Aruba 560 Series Outdoor Access Point, Weatherproof, Wi-Fi 6, Outdoor rated

Large Image : R4W43A, Aruba 560 Series Outdoor Access Point, Weatherproof, Wi-Fi 6, Outdoor rated

Product Details:

Place of Origin:	China
Brand Name:	Aruba
Certification:	CE
Model Number:	R4W43A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

R4W43A, Aruba 560 Series Outdoor Access Point, Weatherproof, Wi-Fi 6, Outdoor rated

Description

Product Name:	Optical Transceiver Module	Part Number:	R4W43A
Shipment:	DHL	Condition:	NewJW054A, Aruba AP-270 Series Mount Kit, Outdoor/Wall Mount/Bracket
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	R4W43A
Highlight:	Aruba 560 outdoor access point , weatherproof Wi-Fi 6 access point , Cisco outdoor rated access point

Aruba R4W43A Overview

Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points (APs), R4W43A deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.

Supported Devices

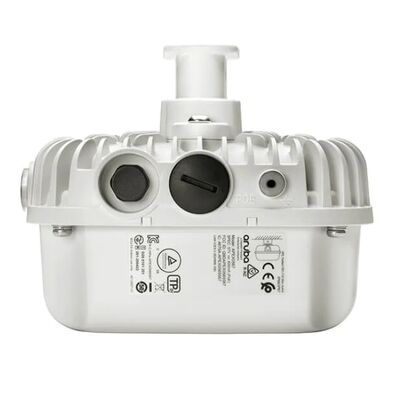

Figure 1 shows the front panel of R4W43A.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	R4W43A
Dimensions	16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H)
Maximum (worst-case) power consumption	15.6W
Maximum (worst case) power consumption in idle mode	4.2W
Maximum (worst case) power consumption in deep-sleep mode	1.7
Power over Ethernet (PoE+)	802.3at-compliant
Operating temperature	-40° C to +55° C (-40° F to +140° F) with full solar loading
Operating humidity	5% to 95% non-condensing internal

Compare to Similar Items

Table 2 shows the comparison of R3V36A.

Module	R4W43A	R4W39A
Maximum (worst-case) power consumption	15.6W	PoE powered (dual ports): 32.0W PoE powered (single port, full function): 26.1W
Maximum (worst case) power consumption in idle mode	4.2W	14.0W (single PoE) or 16.0W (dual PoE)
Maximum (worst case) power consumption in deep-sleep mode	1.7W	2.9W (single PoE) or 3.9W (dual PoE)
Dimensions	16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H)	230mm (W) x 220mm (D) x 140mm (H) / 9.0" (W) x 8.7" (D) x 5.6" (H)
Operating temperature	-40° C to +55° C (-40° F to +140° F) with full solar loading	-40°C to +65°C / -40°F to +149°F with full solar loading
Operating humidity	5% to 95% non-condensing internal	5% to 93% non-condensing internal

Aruba R4W43A Specification

R4W43A Specification
Hardware Variants	Built-in Omni Directional Antennas 5 GHz Antennas 5.4 dBi 2.4 GHz Antennas 3.2 dBi BLE/802.15.4 Antennas 3.3d Bi
Wi-Fi Radio Specifications
AP type	Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5GHz	Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
2.4GHz	Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
Available channels	Dependent on configured regulatory domain
Supported radio technologies	802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
Supported modulation types	802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n high-throughput (HT) support	HT 20/40
802.11ac very high throughput (VHT) support	VHT 20/40/80
802.11ax high efficiency (HE) support	HE20/40/80
Transmit power	Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements)	2.4 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2) 5 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2) Note: conducted transmit power levels exclude antenna gain.
Maximum EIRP (limited by local regulatory requirements):	2.4 GHz band: 565: 29.2 dBm EIRP 567: 33 dBm EIRP 5 GHz band: 565: 31.4 dBm EIRP 567: 32.7 dBm EIRP
Power
Maximum (worst-case) power consumption	15.6W
Maximum (worst case) power consumption in idle mode	4.2W
Maximum (worst case) power consumption in deep-sleep mode	1.7W
Power over Ethernet (PoE+)	802.3at-compliant
Mechanical
Dimensions	16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H)
Environmental
Operating temperature	-40° C to +55° C (-40° F to +140° F) with full solar loading
Operating humidity	5% to 95% non-condensing internal
Storage and transportation temperature:	-40° C to +70° C (-40° F to +158° F)
