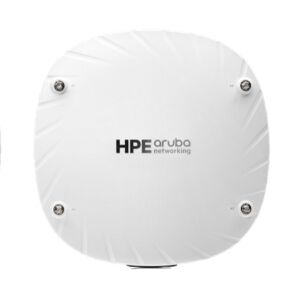

JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio

JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio
JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio

Large Image :  JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio

Product Details:
Place of Origin: China
Brand Name: Aruba
Certification: CE
Model Number: JZ336A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 2-3 days
Payment Terms: T/T
Contact Now

JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio

Description
Product Name: Optical Transceiver Module Part Number: JZ336A
Shipment: DHL Condition: NewJW054A, Aruba AP-270 Series Mount Kit, Outdoor/Wall Mount/Bracket
Lead Time: 2-3 Days Warranty: 1 Year
Keywords: JZ336A
Highlight:

Aruba AP-535 wireless access point

,

802.11ax dual radio access point

,

4x4:4 antenna wireless access point


Aruba JZ336A Overview


JZ336A is the Aruba AP-535 (RW) - Campus - wireless access point. Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With a maximum real-world aggregate data rate of 2.97 Gbps (HE80/HE20), the 530 Series deliver the speed and reliability needed for any enterprise.



Supported Devices

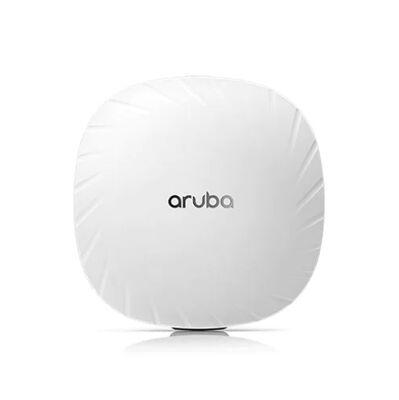

Figure 1 shows the front panel of JZ336A.

JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio 0

JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio 1

The Accessories

Table 1 shows the accessories of JZ336A.

Mount Kit

R3J18A

AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface

R3J19A

AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box

Power Adaptor

R3K01A

AP-AC2-48C 48V/50W AC/DC desktop style power adapter with 1.35/3.5mm connector


Compare to Similar Items

Table 2 shows the comparison.

Model

R2H28A

JZ336A

Series

Aruba AP-505

Aruba AP-535

AP type

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

2x2 MIMO

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

4x4 MIMO

5GHz radio

Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices

Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously

2.4GHz radio

Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices

Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with individual 4SS HE40 (HE20) 802.11ax client devices or with two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously

Antenna

2 Internal Omni-directional 5.7 DBi Antenna

4 integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.

Supported data rates (Mbps)

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM

802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM

802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM

802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)

802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)



Aruba JZ336A Specification

JZ336A Specification

Series

Aruba AP-535

AP type

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

4x4 MIMO

5GHz radio

Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS

HE80 (or 2SS HE160) 802.11ax client devices, or with four

1SS or two 2SS HE80 802.11ax MU-MIMO capable client

devices simultaneously

2.4GHz radio

Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with

individual 4SS HE40 (HE20) 802.11ax client devices or with

two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client

devices simultaneously

Antenna

4 integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna

gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.

Supported data rates (Mbps)

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM

802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM

802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)

802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

Dimensions

AP-535; unit, excluding mount bracket:  240mm (W) x 240mm (D) x 57mm (H) / 9.4” (W) x 9.4” (D) x 2.2” (H)

Certifications

① UL2043 plenum rating

② Wi-Fi Alliance:

③ Wi-Fi CERTIFIED a, b, g, n, ac

④ Wi-Fi CERTIFIED 6 (ax)

⑤ WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE)

⑥ WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband

⑦ Passpoint (release 2)

⑧  Bluetooth SIG







JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio 2

JZ336A, Aruba AP-535 Access Point, 4x4:4 802.11ax/Int Antennas/Dual Radio 3
