CE8850E-32CQ-EI, Huawei CE8850 Switch, 32x100GE QSFP28/2x10GE SFP+/Port-side Intake

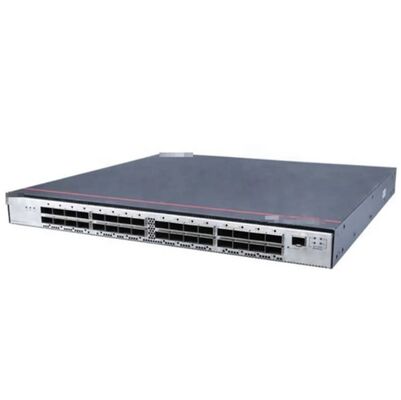

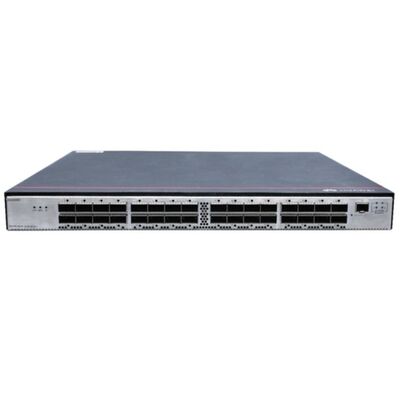

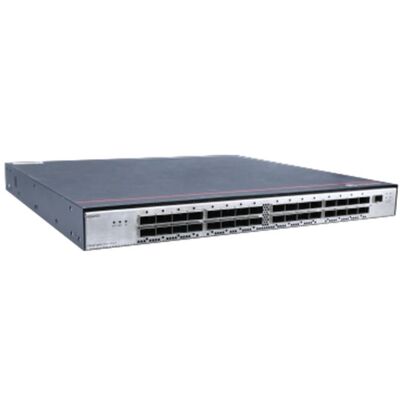

Large Image : CE8850E-32CQ-EI, Huawei CE8850 Switch, 32x100GE QSFP28/2x10GE SFP+/Port-side Intake

Product Details:

Place of Origin:	CHINA
Brand Name:	Huawei
Certification:	CE
Model Number:	CE8850E-32CQ-EI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

CE8850E-32CQ-EI, Huawei CE8850 Switch, 32x100GE QSFP28/2x10GE SFP+/Port-side Intake

Description

Product Name:	Switch	Part Number:	CE8850E-32CQ-EI
Payment:	TT	Shipment:	DHL
Condition:	New	Lead Time:	2-3days
Warranty:	1 Year	Keywords:	CE8850E-32CQ-EI
Highlight:	Huawei CE8850 network switch , 32x100GE QSFP28 switch , port-side intake network switch

Huawei CE8850E-32CQ-EI Switch Product Overview

The switch is designed for Data Centers, featuring high performance, high density, and low latency. Built on an advanced hardware structure, CE8850E-32CQ-EI supports high-density 100GE/40GE/25GE/10GE ports. Running on Huawei’s next-generation VRP8 operating system, it provides abundant DC features and high-performance stacking, and allow flexible selection of airflow directions. In addition, the switch can work with CloudEngine 16800/12800/6800/5800 series switches to build an elastic, virtual, and high-quality data center network (DCN), meeting network requirements of DCs in the cloud computing era
Huawei CE8850E-32CQ-EI Switch can function as core or aggregation switches on DCNs to help enterprises and carriers to build a DCN platform for the cloud computing era. They can also be used as aggregation or core switches on campus networks.

Quick Specs

Table 1 shows the Quick Specs.

Huawei CE8850E-32CQ-EI Specification

Item	Specification
Part NO	02354LHV
Model	CE8850E-32CQ-EI
Port	32100GE QSFP28,110GE SFP+,without fan and power module
Weight with packaging [kg (lb)]	9.3 kg (20.50 lb)
Weight with packaging (full configuration) [kg (lb)]	11.6 kg (25.57 lb)
Installation Type	Cabinet Installation
CPU	4-core, 1.4 GHz
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	AC
	DC
	HVDC
Console port	RJ45
Downlink Service interface	32 x 100GE QSFP28 ports and 1 x 10GE SFP+ port, regardless of the direction (uplink or downlink)
Service port supporting the stack function	100GE optical port
RTC	Supported
Static power consumption [W]	165 W
Static heat dissipation [BTU/hour]	563 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.999993932
MTBF [year]	35.88 year
MTTR [hour]	1.89 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A))
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.58 in.)
