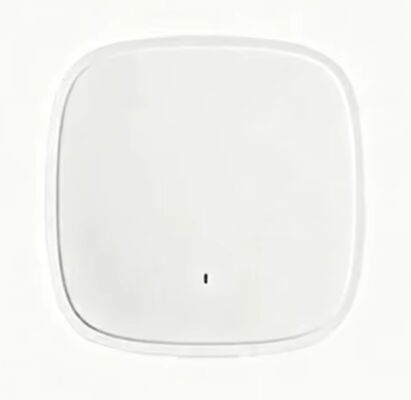

9120AX Access Point, Internal Antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain C9120AXI-H

AIR-CT8540-K9

AIR-CT8540-1K-K9

C9800-40-K9

C9800-80-K9

C9120AXI-H Specification

. Cs Unified Wireless Network Software Release 8.9.x or later

. Cs IOS ® XE Software Release 16.11 with AP Device Pack, or later

. Cs Catalyst 9800 Series Wireless Controllers

. Cs 3500, 5520, and 8540 Series Wireless Controllers and Cs Virtual Wireless Controller

. 4x4 MIMO with four spatial streams

. Maximal Ratio Combining (MRC)

. 802.11n and 802.11a/g beamforming

. 20- and 40-MHz channels

. PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)

. Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

. 802.11 Dynamic Frequency Selection (DFS)

. Cyclic Shift Diversity (CSD) support

. 4x4 downlink MU-MIMO with four spatial streams

. MRC

. 802.11ac beamforming

. 20-, 40-, 80-, and 160-MHz channels

. PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)

. Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

. 802.11 DFS

. CSD support

. 4x4 downlink MU-MIMO with four spatial streams

. Uplink/downlink OFDMA

. TWT

. BSS coloring

. MRC

. 802.11ax beamforming

. 20-, 40-, 80-, and 160-MHz channels

. PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)

. Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

. 802.11 DFS

. CSD support

Flexible radio (either on 2.4GHz or on 5GHz)

. 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

. 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth

Dedicated 5GHz radio

. 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

. Cs Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

. Cs Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna

. Cs offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

. Supports Self-Identifiable Antennas (SIA) on one RP-TNC port

. Available on the 9120E and on the 9120P only

. Compact multi RF connector with DART interface

. Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector

. Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio

. 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

. Management console port (RJ-45)

. USB 2.0 @ 3.75W (enabled via future software)

. 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cs Universal PoE (Cs UPOE+, Cs UPOE ®)

. Cs power injector, AIR-PWRINJ6=

. 802.3af PoE

. Cs power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Cs Catalyst 9120AXI

. Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

. Nonoperating (storage) altitude test: 25 C, 15,000 ft.

. Operating temperature: 32° to 122°F (0° to 50°C)

. Operating humidity: 10% to 90% (noncondensing)

. Operating altitude test: 40 C, 9843 ft.

. 2048 MB DRAM

. 1024 MB flash

2.4 GHz

. 23 dBm (200 mW)

. 20 dBm (100 mW)

. 17 dBm (50 mW)

. 14 dBm (25 mW)

. 11 dBm (12.5 mW)

. 8 dBm (6.25 mW)

. 5 dBm (3.13 mW)

. 2 dBm (1.56 mW)

. -1dBm (0.79mW)

. -4dBm(0.39mW)

5 GHz

. 26 dBm (400 mW)

. 23 dBm (200 mW)

. 20 dBm (100 mW)

. 17 dBm (50 mW)

. 14 dBm (25 mW)

. 11 dBm (12.5 mW)

. 8 dBm (6.25 mW)

. 5 dBm (3.13 mW)

. 2 dBm (1.56 mW)

. -1dBm (0.79mW)

H (H regulatory domain):

. 2.412 to 2.472 GHz; 13 channels
. 5.180 to 5.320 GHz; 8 channels
. 5.745 to 5.825 GHz; 5 channels
