CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4

CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4
CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4
CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4 CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4 CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4 CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4 CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4 CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4

Large Image :  CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4

Product Details:
Place of Origin: China
Brand Name: huawei
Certification: CE
Model Number: QSFP-100G-PSM4-S
Contact Now

CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4

Description
Model: QSFP-100G-PSM4-S Name: CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4
Key Words: QSFP-100G-PSM4-S Detail: CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4
Highlight:

100G QSFP28 optical transceiver

,

QSFP-100G-PSM4-S transceiver module

,

100GBASE-PSM4 QSFP28 with warranty

QSFP28-100G-PSM4 overview

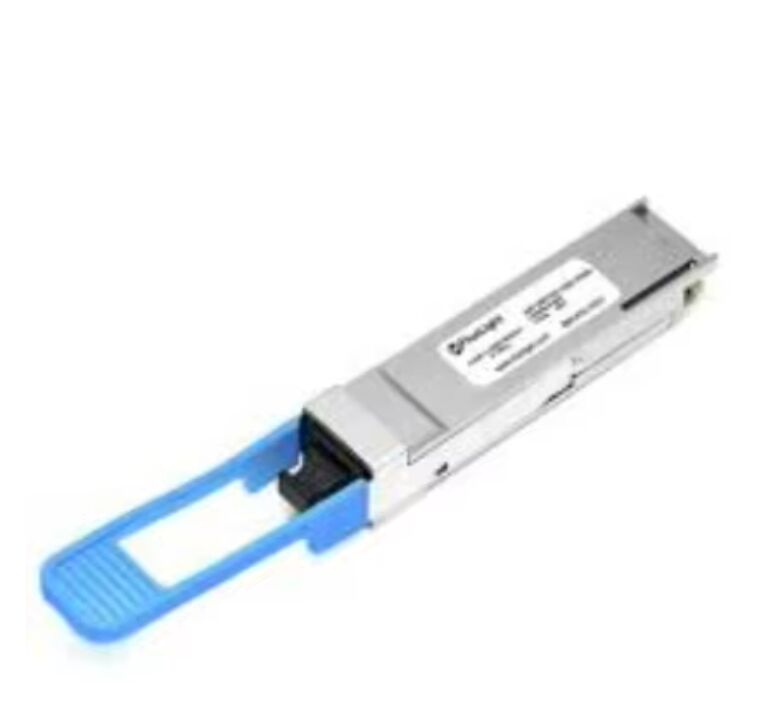

The CS QSFP-100G-PSM4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-PSM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.

Specifications
CS Compatible
QSFP-100G-PSM4-S
Vendor Name
FS
Form Factor
QSFP28
Max. Data Rate
103.125Gbps (4x 25.78Gbps)
Wavelength
1310nm
Max. Cable Distance

500m
Connector
MTP/MPO-12 APC
Media
SMF
Transmitter Type
4x DFB
Receiver Type
PIN
TX Power
-9.4~2dBm
Minimum Receiver Power
-12.66dBm
Power Budget
3.26dB
Receiver Overload
2dBm
Power Consumption
≤3.5W
Extinction Ratio
>3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
4x 25G NRZ
Modulation (Optical)
4x 25G NRZ
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Packaging Technology
BOX Packaging
Bit Error Ratio (BER)
1.00E-12
MTBF
1,868,530.214 Hours
Protocols
QSFP28 MSA, SFF-8636, IEEE 802.3 2012,CAUI-4
Warranty
5 Years



Table 10-108 QSFP28-100G-PSM4 specifications
Item Value
Basic Information
Module name QSFP28-100G-PSM4
Part Number 02311MNM
Model QSFP28-100G-PSM4
Form factor QSFP28
Application standard 100GBASE-PSM4 (non-standard)
Connector type MPO/APC (8-strand or 12-strand, type B, female connector)
Optical fiber type SMF
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Digital diagnostic monitoring (DDM) Supported
Transmission rate [bit/s] 100 Gbit/s
Target transmission distance [km] Single-mode fiber (G.652): 500 m
Transmitter Optical Characteristics
Center wavelength [nm] 1310 nm
Maximum Tx optical power [dBm] 2 dBm
Minimum Tx optical power [dBm] -9.4 dBm
Minimum extinction ratio [dB] 3.5 dB
Receiver Optical Characteristics
Rx sensitivity [dBm] -11.35 dBm
Overload power [dBm] 2.2 dBm
Specifications
CS Compatible
QSFP-100G-PSM4-S
Vendor Name
FS
Form Factor
QSFP28
Max. Data Rate
103.125Gbps (4x 25.78Gbps)
Wavelength
1310nm
Max. Cable Distance

500m
Connector
MTP/MPO-12 APC
Media
SMF
Transmitter Type
4x DFB
Receiver Type
PIN
TX Power
-9.4~2dBm
Minimum Receiver Power
-12.66dBm
Power Budget
3.26dB
Receiver Overload
2dBm
Power Consumption
≤3.5W
Extinction Ratio
>3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
4x 25G NRZ
Modulation (Optical)
4x 25G NRZ
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Packaging Technology
BOX Packaging
Bit Error Ratio (BER)
1.00E-12
MTBF
1,868,530.214 Hours
Protocols
QSFP28 MSA, SFF-8636, IEEE 802.3 2012,CAUI-4
Warranty
5 Years



Table 10-108 QSFP28-100G-PSM4 specifications
Item Value
Basic Information
Module name QSFP28-100G-PSM4
Part Number 02311MNM
Model QSFP28-100G-PSM4
Form factor QSFP28
Application standard 100GBASE-PSM4 (non-standard)
Connector type MPO/APC (8-strand or 12-strand, type B, female connector)
Optical fiber type SMF
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Digital diagnostic monitoring (DDM) Supported
Transmission rate [bit/s] 100 Gbit/s
Target transmission distance [km] Single-mode fiber (G.652): 500 m
Transmitter Optical Characteristics
Center wavelength [nm] 1310 nm
Maximum Tx optical power [dBm] 2 dBm
Minimum Tx optical power [dBm] -9.4 dBm
Minimum extinction ratio [dB] 3.5 dB
Receiver Optical Characteristics
Rx sensitivity [dBm] -11.35 dBm
Overload power [dBm] 2.2 dBm

CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4 0CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4 1CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4 2CS QSFP-100G-PSM4-S 100GBASE-PSM4 QSFP28 QSFP28-100G-PSM4 3
