S6720-LI Series Switch, Providing 16 10 Gig SFP+ and AC 110/220V 16 10 Gig SFP+, AC 110/220V S6720S-16X-LI-16S-AC

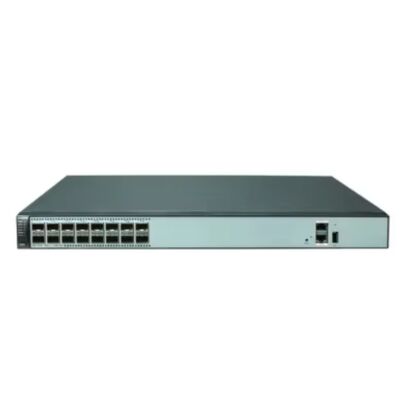

Large Image : S6720-LI Series Switch, Providing 16 10 Gig SFP+ and AC 110/220V 16 10 Gig SFP+, AC 110/220V S6720S-16X-LI-16S-AC

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE
Model Number:	S6720-LI

Contact Now

S6720-LI Series Switch, Providing 16 10 Gig SFP+ and AC 110/220V 16 10 Gig SFP+, AC 110/220V S6720S-16X-LI-16S-AC

Description

Model:	S6720-LI	Name:	Dram Optical Ethernet Network Switch
Keywords:	Optical Ethernet Switch	Fixed Ports:	16 X 10 GE SFP+ Ports
Details:	42 Mpps Huawei Network Switches	Forwarding Performance:	240 Mpps
Switching Capacity:	1.28 Tbit/s	Detail:	Bundle Huawei Sfp Switch
Highlight:	Huawei S6720-LI network switch , 16-port 10G SFP+ switch , 110/220V AC network switch

S6720S-16X-LI-16S-AC Overview

HW S6720S-16X-LI-16S-AC is the HW S6720-LI series switch, providing 16 10 Gig SFP+ and AC 110/220V. The S6720-LI series switches (S6720-LI) are next-generation simplified 10GE fixed switches and can be used as 10GE access switches on campus networks and data center networks. The S6720-LI provides line-rate 10GE access ports and 40GE uplink ports. In addition, the S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.

Quick Spec

Table 1 shows the quick spec.

Model	S6720S-16X-LI-16S-AC
Ports	16 x 10 GE SFP+ ports
Power	Built-in AC power supply and Redundant Power Supply (RPS)
Packet forwarding rate	240 Mpps
Switching capacity	1.28 Tbit/s
Dimensions (W x D x H)	420 x 220 x 43.6 mm

The Modules

Table 2 shows the recommended products.

Model	Description
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
eSFP-GE-ZX100-SM1550	eSFP, GE, Single-mode Module (1550nm, 100km, LC)
SFP-GE-LX-SM1310-BIDI	BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
SFP-GE-LX-SM1490-BIDI	BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
SFP-GE-ZBXD1	HW Optical Transceiver SFP-GE-ZBXD1, eSFP, GE, BIDI Single-mode Module (1570nm (Tx)/1490nm (Rx), 80km, LC)

Compare to Similar Item

Table 3 shows the comparison.

Model	S6720S-16X-LI-16S-AC	S6720S-26Q-LI-24S-AC
Ports	16 x 10 GE SFP+ ports	24 x 10 GE SFP+ ports, 2 x 40 GE QSFP+ ports
Power	Built-in AC power supply and Redundant Power Supply (RPS)	Built-in AC power supply and RPS
Packet forwarding rate	240 Mpps	240 Mpps
Switching capacity	1.28 Tbit/s	1.28 Tbit/s

S6720S-16X-LI-16S-AC Specification

S6720S-16X-LI-16S-AC Specification
Ports	16 x 10 GE SFP+ ports
Power	Built-in AC power supply and Redundant Power Supply (RPS)
Packet forwarding rate	240 Mpps
Switching capacity	1.28 Tbit/s
Dimensions (W x D x H)	420 x 220 x 43.6 mm
Extended slots	Not supported
MAC address table	32K MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN features	4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Basic QinQ and selective QinQ
IPv4 routing	Static routing, RIP, and OSPF VRRP Policy-based routing Routing policies
IPv6 routing	Static routing RIPng OSPFv3
IPv6 features	Neighbor Discovery (ND) and ND snooping IPv6 Ping VRRP6 DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay
Multicast	IGMPv1/v2/v3 snooping Fast leave IGMP snooping proxy Multicast Listener Discovery (MLD) snooping Port-based multicast traffic suppression Inter-VLAN multicast replication Controllable multicast
QoS/ACL	Traffic classification based on ACLs Traffic classification based on outer 802.1p fields, outer VLAN IDs, source MAC addresses, and Ethernet types Access control after traffic classification Traffic policing based on traffic classifiers Re-marking based on traffic classifiers Class-based packet queuing Associating traffic classifiers with traffic behaviors Rate limiting on inbound and outbound ports Traffic shaping based on ports and queues Tail drop Priority Queuing (PQ) Deficit Round Robin (DRR) PQ + DRR scheduling Weighted Round Robin (WRR) PQ + WRR scheduling
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover Smart Ethernet Protection (SEP) G.8032 Ethernet Ring Protection Switching (ERPS) Enhanced trunk (E-trunk)
Security features	Defense against DoS, ARP, and ICMP attacks Binding of the IP address, MAC address, port number, and VLAN ID of a user Port isolation, port security, and sticky MAC MAC-Forced Forwarding (MACFF) Limit on the number of learned MAC addresses IEEE 802.1X authentication and the limit on the number of users on a port AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC CPU defense
Super Virtual Fabric (SVF)	SVF Client
