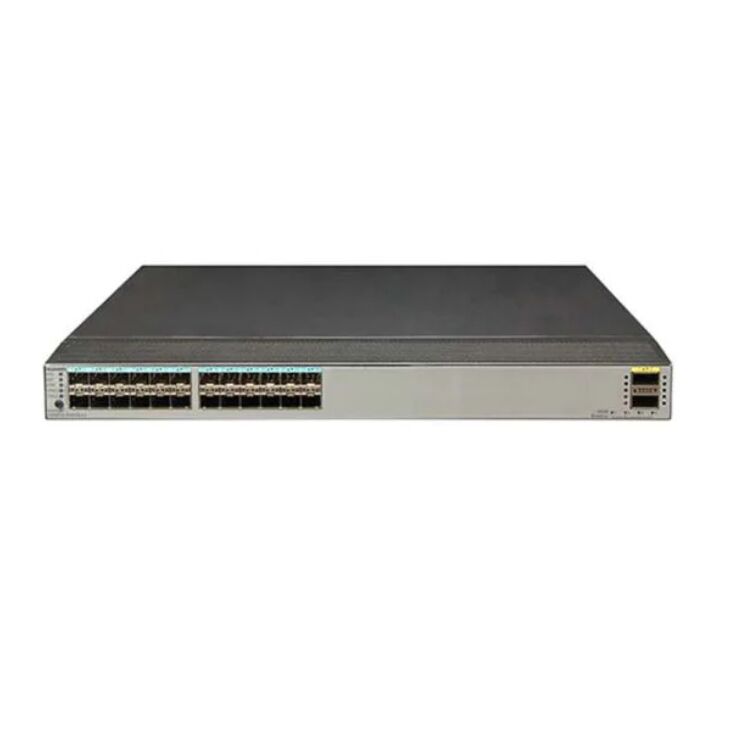

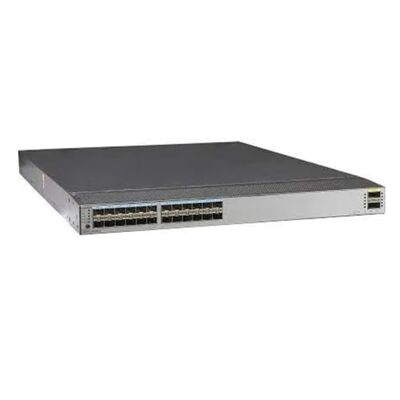

CE6810-24S2Q-LI-B, Huawei CE6810 Switch, 24x10GE SFP+/2x40GE QSFP+/No PSU

Product Code

CE6810-24S2Q-LI-B

Part Number

02350GUC

Software Version

V100R005C10 and later

Fixed GE interfaces

None

Fixed 10GE interfaces

24*10GE SFP+

Fixed 40GE interfaces

2*40GE QSFP+

A 40GE interface can be split into four 10GE interfaces.

Fixed 100GE interfaces

None

Switching Capacity

640 Gbit/s

Forwarding Rate

480 Mpps

Rated voltage range(with power module)

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum power consumption

171W

Airflow Design

Front-to-back or back-to-front

Dimensions (W x D x H)

442 mm x 600 mm x 43.6 mm

Weight (fully loaded)

10.1 kg (22.3 lb)

①

Twenty-four 10GE SFP+ Ethernet optical ports

②

Two 40GE QSFP+ Ethernet optical ports

①

Power supply slot 1

②

Fan slot 1

③

Console port

④

Bar code label

⑤

Fan slot 2

⑥

Power supply slot 2

⑦

USB port

⑧

ETH management port

Model

Description

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)

QSFP-40G-iSR4

40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)

QSFP-40G-LR4

40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC)

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

FAN-40EA-F

Fan box(EA,Front to Back,FAN panel side intake)

FAN-40EA-B

Fan box(EA,Back to Front,FAN panel side exhaust)

Product Code

CE6810-24S2Q-LI-F

CE6810-32T16S4Q-LI-B

CE6810-48S4Q-EI

Software Version

V100R005C10 and later

V100R005C10 and later

V100R003C00 and later

Fixed 10GE interfaces

24*10GE SFP+

32*10GBASE-T

16*10GE SFP+

48*10GE SFP+

Fixed 40GE interfaces

2*40GE QSFP+

A 40GE interface can be split into four 10GE interfaces.

4*40GE QSFP+

A 40GE interface can be split into four 10GE interfaces

4*40GE QSFP+

A 40GE interface can be split into four 10GE interfaces.

Fixed 100GE interfaces

None

None

None

Switching Capacity

640 Gbit/s

1.28 Tbit/s

1.28 Tbit/s

Forwarding Rate

480 Mpps

960 Mpps

960 Mpps

Maximum power consumption

171W

288W

238W

10G Base-T Ports

0

SFP+ Ports

24

QSFP+ Ports

2

Switching Capacity

640 Gbit/s

Forwarding Rate

480 Mpps

Airflow Design

Front-to-back or back-to-front

Device Virtualization

iStack

Super Virtual Fabric (SVF)

Network Virtualization

M-LAG

VM Awareness

Agile Controller

Network Convergence

FCoE

DCBX, PFC, and ETS

Programmability

OpenFlow

OPS

Linux container for open source and customization programming

Traffic Analysis

NetStream

sFlow

VLAN

Adding access, trunk, and hybrid interfaces to VLANs

Default VLAN

QinQ

MUX VLAN

GVRP

ACL

Ingress: 1,250
Egress: 500

MAC Address Table

Maximum: 128k

Dynamic learning and aging of MAC addresses

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address limiting based on ports and VLANs

ARP (maximum)

1.5k

IPv4 FIB (maximum)

1.5k

IP Routing

IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS

IPv6 FIB (maximum)

/

Multicast FIB (maximum)

/

Multicast

IGMP snooping

Reliability

LACP

STP, RSTP, VBST, MSTP

BPDU protection, root protection, and loop protection

Smart Link and multi-instance

DLDP

ERPS (G.8032)

VRRP, VRRP load balancing, and BFD for VRRP

QoS

Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority

Actions of ACL, CAR, re-marking, and scheduling

Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR

Congestion avoidance mechanisms, including WRED and tail drop

Traffic shaping

Configuration and Maintenance

Console, Telnet, and SSH terminals

Network management protocols, such as SNMPv1/v2c/v3

File upload and download through FTP and TFTP

BootROM upgrade and remote upgrade

802.3az Energy Efficient Ethernet (EEE)

Hot patches

User operation logs

ZTP

Security and Management

802.1x authentication

Command line authority control based on user levels, preventing unauthorized users from using commands

DoS, ARP, and ICMP attack defenses

Port isolation, port security, and sticky MAC

Binding of the IP address, MAC address, interface number, and VLAN ID

Authentication methods, including AAA, RADIUS, and HWTACACS

Remote Network Monitoring (RMON)

Dimensions (W x D x H)

442 mm x 600 mm x 43.6 mm

Weight (fully loaded)

10.1 kg (22.3 lb)

Environmental Parameters

Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Relative humidity: 5% RH to 95% RH, non-condensing

Operating Voltage

AC: 90V to 290V
DC: -38.4V to -72V

Max. Power Consumption

171W
