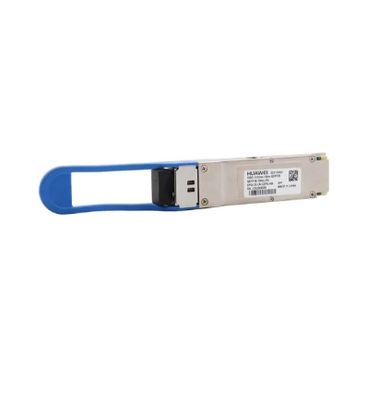

QSFP28-100G-SR4, Huawei 100G 850nm 100m QSFP28 optical transceiver, MPO/PC connector

The Huawei QSFP28-100G-SR4 is a cutting-edge 100G optical transceiver designed for high-speed data transmissions over short distances. Utilizing 850nm wavelength technology, it supports link lengths of up to 100m on multi-mode fiber. Its equipped with an MPO/PC connector, making it an ideal choice for modern data centers and high-performance computing environments seeking efficient, scalable, and reliable networking solutions.

Quick Spec

Product Features

• ● 100Gbps data rate for high-speed transmissions
• ● Support for multi-mode fiber up to 100 meters
• ● Low power consumption for energy efficiency
• ● Hot-pluggable QSFP28 form factor for easy deployment
• ● 850nm VCSEL laser and PIN photo-detector for optimal performance

Product Applications

Data centers, enterprise networks, and financial trading floors can benefit immensely from the deployment of the Huawei QSFP28-100G-SR4. Its high-speed capabilities are perfect for:

• ● Interconnecting fabric in clustered computing environments
• ● Facilitating rapid data transfers in storage area networks
• ● High-density applications requiring compact and efficient solutions

  QSFP28-100G-SR4 Specification

  QSFP28-100G-SR4 Specifications
  Brand	Huawei
  Product Name	QSFP28-100G-SR4
  Data Rate	100Gbps
  Wavelength	850nm
  Transmission Distance	100 meters
  Connector Type	MPO/PC
  Form Factor	QSFP28
  Temperature Range	0°C to 70°C (32°F to 158°F)
  Modulation	NRZ
  Fiber Type	Multimode
  Max Power Consumption	3.5W
  Digital Diagnostic Monitoring	Supported
  BER (Bit Error Rate)	<1x10-12
  Compliance	IEEE 802.3bm, MSA Compliant
  Applications	Data Center, High-Performance Computing Networks
  Electrical Interface	CAUI-4
  Cable Type	OM4
  Programming Support	Yes
  Protocols Supported	100G Ethernet
