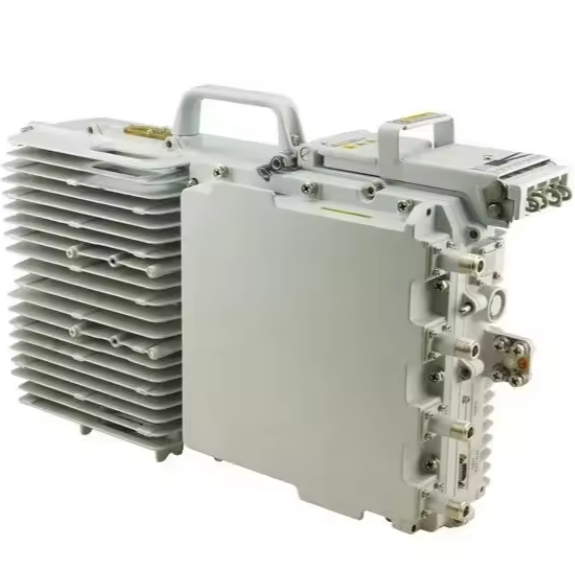

ZTE ZXSDR R8882A S1800 Micro Radio Remote Unit

Large Image : ZTE ZXSDR R8882A S1800 Micro Radio Remote Unit

Product Details:

Place of Origin:	China
Brand Name:	ZTE
Certification:	CE
Model Number:	R8882A S1800
Document:	LONRISE EQUIPMENT Company ...le.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Delivery Time:	1-3 Days
Payment Terms:	Western Union,T/T

Contact Now

ZTE ZXSDR R8882A S1800 Micro Radio Remote Unit

Description

Brand:	ZTE	Model:	R8882A S1800
Condition:	Used	Warranty:	3 Months
Lead Time:	1-3 Days	Delivery Time:	3-5 Days
Origin:	China	Type:	RRU
Highlight:	ZTE ZXSDR R8882A remote unit , S1800 Micro Radio Unit , optical transceiver module with warranty

Overview

ZTE ZXSDR R8882A S1800 Micro Radio Remote Unit.

Parameter	Specification / Notes
Type / Role	Outdoor Remote Radio Unit (RRU) / Macro Radio Remote Unit
Radio Modes Supported	GSM, UMTS, CDMA, LTE — single, dual or multi-mode (software upgradeable)
Transmit / Receive Chains	2 transmitters (2T) / up to 4 receivers (up to 2T4R)
Frequency Band (S1800 variant)	For the S1800 model: uplink ~ 1710-1765 MHz, downlink ~ 1805-1860 MHz (when B6B variant)
Optical / Interface Ports	• Two optical ports (for many variants) with maximum throughput ~ 3 Gbps • Some “C” variants have three optical ports with maximum 6 Gbps
Output Power / PA	• For “2×60 W” class (S1800): two PA branches each capable of ~ 60 W (TOC power) • In LTE mode, typical output: 2×54 W for 2×40 W class, or 2×75 W for 2×60 W class
Dimensions & Weight	For 2×60 W version: ~ 480 × 320 × 150 mm (H×W×D) Weight ~ 24 kg (for 2×60 W, 2T4R config)
Receiver Sensitivity	• LTE (single antenna): –106 dBm • LTE (dual antenna): –108.6 dBm • UMTS single: –125.8 dBm, dual: –128.5 dBm
Power Supply	DC –48 V (range maybe –37 V to –60 V) Typical current rating (e.g. 10 A) for variants like “48 V 10A”
Operating Temperature / Environment	–40 °C to +50 °C (or +55 °C in some specs) Protection: IP66 or similar outdoor rating in many vendor listings
Mounting / Installation	Wall, pole, L-shape gantry, tower mounting supported
Networking / Cascading	Supports star, chain, ring (depending on number of optical ports) topology for cascading between BBU and RRUs
Additional Features / Tech	• Digital Pre-Distortion (DPD), Doherty / power amplifier efficiency optimizations • Software-defined radio flexibility, smooth upgrades across modes

ZTE ZXSDR R8882A S1800 Micro Radio Remote Unit 2
