8862 AS2100 Telecom Remote Radio Unit (RRU)

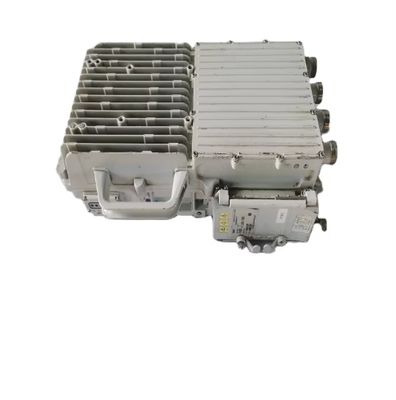

Large Image : 8862 AS2100 Telecom Remote Radio Unit (RRU)

Product Details:

Place of Origin:	China
Brand Name:	ZTE
Certification:	CE
Model Number:	8862 AS2100
Document:	LONRISE EQUIPMENT Company ...le.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Delivery Time:	1-3 Days
Payment Terms:	T/T,Western Union

Contact Now

8862 AS2100 Telecom Remote Radio Unit (RRU)

Description

Brand:	ZTE	Model:	8862 AS2100
Type:	RRU	Usage:	Base Station
Condition:	Used	Warranty:	3 Months
Lead Time:	1-3 Days	Delivery Time:	3-5 Days

Overview

The R8862 is a macro remote radio unit (RRU) that pairs with a BBU (baseband unit) to form a base station node.It supports multi-mode operation (GSM, UMTS, LTE) in certain bands via software. It supports multi-mode operation (GSM, UMTS, LTE) in certain bands via software.The “AS2100” suffix suggests it is targeted at the 2100 MHz

band (UMTS / WCDMA / LTE) variant.

8862 AS2100 Telecom Remote Radio Unit (RRU) 0

Technical Specification (approximate / typical)

Here is a collection of specifications derived from the sources:

Parameter	Value / Range
Supported bandwidths (LTE)	1.4, 3, 5, 10, 15, 20 MHz
Operating frequency bands	850 MHz, 1800 MHz, 2100 MHz, 2600 MHz (some models)
Transmit / Receive configuration	2T4R (2 transmit, 4 receive)
Maximum transmit power	2 × 60 W (i.e. two transmit channels each 60 W)
Power supply	DC: –48 V (range: –37 V to –60 V) AC: 110/220 V (range: 90 V to 290 V)
Interfaces / backhaul	CPRI interface (optical SFP, LC) with rates: 1.25, 2.5, 3, 6 Gbps (CPRI v4.2)
Physical dimensions	~422 × 218 × 133 mm (H × W × D) for common bands (Type I)
Weight	~14 to 15 kg (without sunshield)
Environmental / Temperature	Operating: –40 °C to +55 °C Storage: –40 °C to +70 °C Relative Humidity: up to 100% (condensing) Protection: IP65 rating
Surge / Lightning protection	DC power interface: 20 kA (line-to-ground and line-to-line) Antenna interface: 10 kA line-to-ground
Power consumption	In GSM single mode: typical ~290 W, peak ~410 W In UMTS single mode: typical ~240 W, peak ~355 W In GSM/UMTS dual mode: typical ~330 W, peak ~410 W
Reliability / Availability	Availability: 99.999689% MTBF: ~322,000 hours MTTR: ~1 hour
Other features	- Transmit power reporting per carrier - Load protection for PA - Channel on/off switching - Software failure isolation (doesn’t affect BBU operation)

8862 AS2100 Telecom Remote Radio Unit (RRU) 2
