HW RRU5904 For Multi-Mode 2100mhz(4*60W) -48V WD5M215904GB 02311UWT

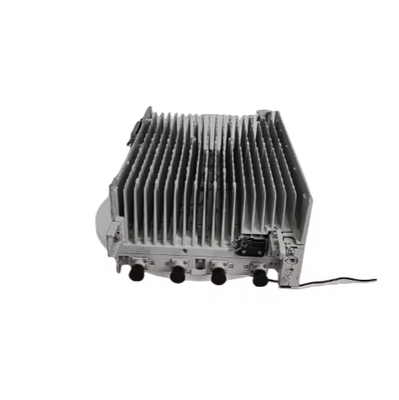

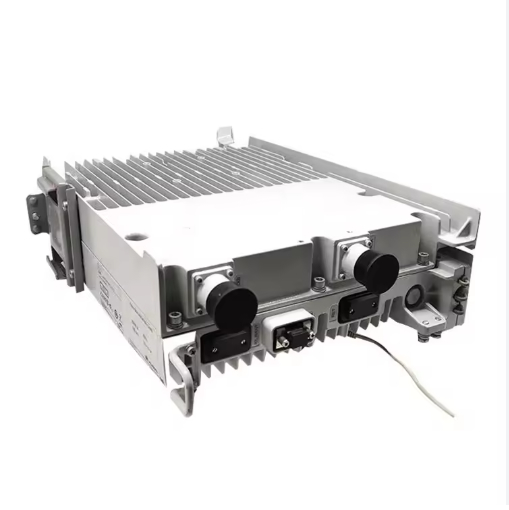

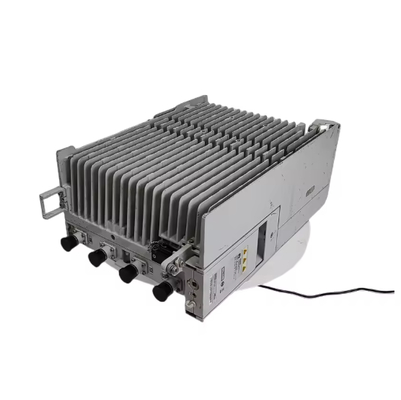

Large Image : HW RRU5904 For Multi-Mode 2100mhz(4*60W) -48V WD5M215904GB 02311UWT

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE
Model Number:	5904UWT
Document:	LONRISE EQUIPMENT Company ...le.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Delivery Time:	3-5 Days
Payment Terms:	T/T,Western Union

Contact Now

HW RRU5904 For Multi-Mode 2100mhz(4*60W) -48V WD5M215904GB 02311UWT

Description

Model Number:	RRU5904UWT	Frequency:	2100MHZ
Product Line:	3G/4G	Warranty:	3 Months
MOQ:	1PC	Condition:	Second-hand
Payment:	T/T	Delivery Time:	3 Days
Highlight:	Huawei RRU5904UWT 2100MHz radio unit , 4T4R remote radio unit 60W , Huawei 2100MHz optical transceiver

Overview

The Huawei RRU5904 (multi-mode, e.g. “UWT” version) is a remote radio unit (RRU) designed for cellular base stations. It supports multiple RATs (e.g. GSM, UMTS, LTE FDD, etc.), multiple carriers, operates in various frequency bands (e.g. 2100 MHz, 1800 MHz), offers 4 transmitters / 4 receivers (4T4R), and is intended for outdoor installation. Power is DC (−48 V) but some variants allow AC/DC power modules externally. It has ports for RF antennas, CPRI backhaul, and is built to withstand outdoor environmental stresses (temperature, humidity, solar exposure, etc.).

HW RRU5904 For Multi-Mode 2100mhz(4*60W) -48V WD5M215904GB 02311UWT 0

Key Specifications

Here are the main technical specs for a typical RRU5904UWT / RRU5904 multi‐mode version, based especially on the 2100 MHz variant and similar:

Spec Category	Value / Detail
Supported Frequency Bands	2100 MHz (UMTS, LTE FDD etc.), 1800 MHz in some variants.
Supported RATs	GSM, UMTS, LTE FDD (and possibly NB-IoT depending on model). pdfcoffee.com+3Scribd+3pdfcoffee.com+3
Carrier / Bandwidth Options	LTE FDD carriers with 5 / 10 / 15 / 20 MHz bandwidth. pdfcoffee.com+2Studocu+2
RG Ports / Interfaces	RF: 4 RF ports (connector type 4.3-10) for antenna connections. CPRI: 2 ports. Scribd+1
Power Input	−48 V DC, with operating voltage range approx −36 V to −57 V DC. Alternately can use external AC/DC module in some setups. Scribd+2pdfcoffee.com+2
Power Consumption	For 2100 MHz variant typical consumption ~ 492 W under 50% load at 25 °C. pdfcoffee.com+1
Output / Transmit Power	e.g. in some versions: 4 × 60 W (for LTE) in the 2100 MHz variant. IT +2Studocu+2
Receive Sensitivity	Varies by RAT, number of carriers, etc. Specific values are in the detailed specs. pdfcoffee.com+1

HW RRU5904 For Multi-Mode 2100mhz(4*60W) -48V WD5M215904GB 02311UWT 2
