5502BSJ HW RRU5502 02312BSJ WD5MBW5502GB TX1805-1880MHz/RX1710-1785MHz TX2110-2170MHz/RX1920-1980MHz -48VDC 9.8G 4T4R2 480

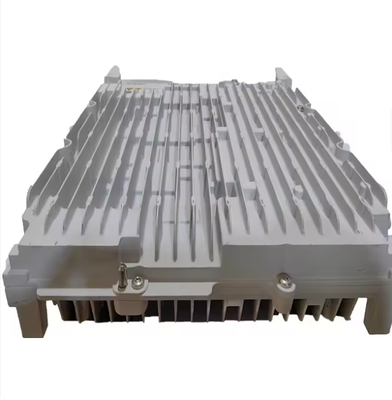

Large Image : 5502BSJ HW RRU5502 02312BSJ WD5MBW5502GB TX1805-1880MHz/RX1710-1785MHz TX2110-2170MHz/RX1920-1980MHz -48VDC 9.8G 4T4R*2 4*80

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE
Model Number:	5502BSJ
Document:	LONRISE EQUIPMENT Company ...le.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Delivery Time:	1-3 Days
Payment Terms:	T/T,Western Union

Contact Now

5502BSJ HW RRU5502 02312BSJ WD5MBW5502GB TX1805-1880MHz/RX1710-1785MHz TX2110-2170MHz/RX1920-1980MHz -48VDC 9.8G 4T4R2 480

Description

Model Number:	5502 BSJ	Type:	RRU
Single Gross Weight:	30.0 Kg	Item Weight:	15.0 Kg
Package Size:	80cm 50 Cm 30 Cm	Warranty:	3 Months
MOQ:	1PC	Brand:	H
Highlight:	RRU5502 dual-band radio unit , 4T4R radio unit 1800/2100MHz , 80W radio unit with warranty

Overview

The RRU5502 is an outdoor remote radio unit (RRU) used in distributed base station architectures. It handles radio frequency (RF) amplification, modulation/demodulation, and interfaces to antennas and baseband units. The “BSJ / 02312BSJ” version typically supports 4T4R (4 transmit / 4 receive) in the 1800 MHz + 2100 MHz bands (LTE / UMTS / GSM, etc.). It is designed for outdoor deployment, near the antenna, supporting multiple carriers and RATs, with rugged environmental specs (temperature, humidity, etc.), and flexible bandwidths in LTE FDD mode.

5502BSJ HW RRU5502 02312BSJ WD5MBW5502GB TX1805-1880MHz/RX1710-1785MHz TX2110-2170MHz/RX1920-1980MHz -48VDC 9.8G 4T4R*2 4*80 0

Spec Category	Detail
Frequency Bands	• Band 3 (1800 MHz): RX ~ 1710–1785 MHz, TX ~ 1805–1880 MHz pdfcoffee.com+2pdfcoffee.com+2 • Band 1 (2100 MHz): RX ~ 1920–1980 MHz, TX ~ 2110–2170 MHz pdfcoffee.com+2pdfcoffee.com+2
Supported RATs / Carriers Capacity	• UMTS (2100 MHz) – supports up to 8 UMTS carriers. Scribd+2pdfcoffee.com+2 • LTE-FDD – can support 3 carriers in a single frequency band, or 4 carriers when using dual frequency bands (1800 + 2100 MHz). LTE bandwidth per carrier selectable: 5, 10, 15, or 20 MHz. Scribd+2pdfcoffee.com+2 • LTE NB-IoT supported (usually in 1800 MHz band). pdfcoffee.com+1
Receiver Sensitivities	(typical, 1-way, single antenna) • GSM 1800: ~ -114.0 dBm Scribd+1 • UMTS 2100: ~ -125.8 dBm pdfcoffee.com+1 • LTE FDD (1800/2100): ~ -106.7 dBm pdfcoffee.com+1 • LTE NB-IoT (1800): ~ -127.3 dBm Scribd+1
Transmit / Output Power	Typical output power per carrier depends on the RAT, number of carriers, and whether multiple freq bands are used. Some values: • LTE-FDD single band (4T4R) up to 4 × 80 W per LTE carrier in some configurations. Scribd+2pdfcoffee.com+2 • In dual-band combinations, output power per carrier drops (e.g. 4 × 40 W in some dual-band LTE FDD configurations). Scribd+1 • UMTS (2100) output power examples: per UMTS carrier ~ 60 W, or 30 W in certain configurations. Scribd+1
Power Input & Consumption	• Power supply: −48 V DC. Operating voltage range about −36 V to −57 V DC. Scribd+1 • Typical power consumption (1800 + 2100 MHz, about 50% load, ambient ~25°C): ~ 735 W. pdfcoffee.com+1
Physical / Mechanical	• Dimensions (H × W × D): 480 mm × 356 mm × 140 mm Scribd+1 • Weight: ~ 25 kg Scribd+1

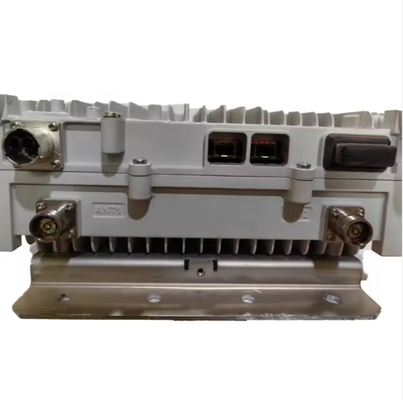

Interfaces / Ports	• RF ports: 4 connectors (4.3-10 type) for antenna connections. Scribd+1 • CPRI ports: 2 ports. Data rates supported include 1.25 Gbps, 2.5 Gbps, 4.9 Gbps, 9.8 Gbps. Scribd • RET control port (remote electrical tilt), etc. Scribd
Environmental / Engineering Specs	• Operating Temperature: often around −40 °C to +55 °C (no solar load); with sun load somewhat reduced top limit. pdfcoffee.com+1 • Protection: IP65 rated. Scribd • Altitude: works up to ~ 4,000 m without derating; above that some power reductions may apply. Scribd
Other Notes	• Supports multiple bands and multiple RATs (GSM + UMTS + LTE etc.) simultaneously in many configurations. Scribd+1 • CPRI topology can be star, chain, or dual-star. Scribd • When configured with multiple carriers or bands, power spectral density / balancing between carriers becomes relevant for performance. Scribd

5502BSJ HW RRU5502 02312BSJ WD5MBW5502GB TX1805-1880MHz/RX1710-1785MHz TX2110-2170MHz/RX1920-1980MHz -48VDC 9.8G 4T4R*2 4*80 2
