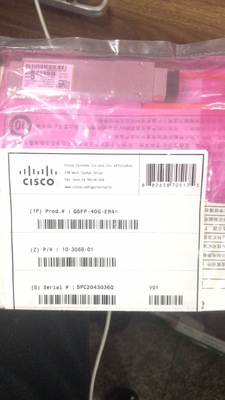

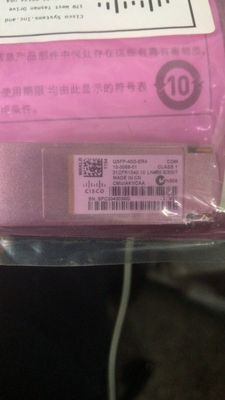

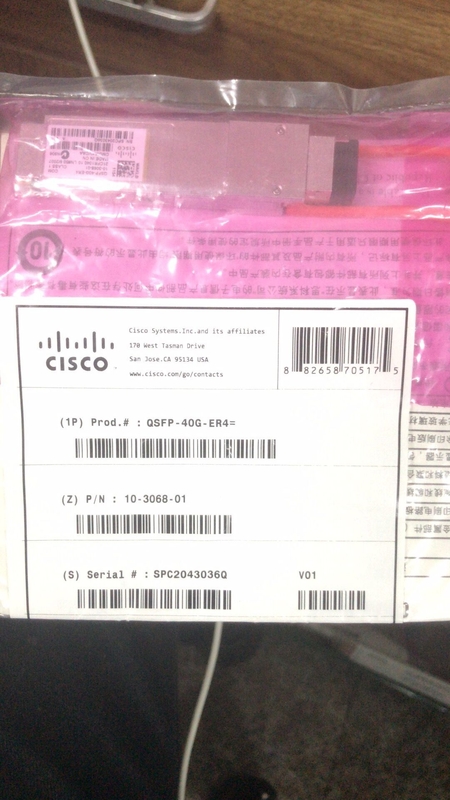

QSFP-40G-ER4 QSFP 40GBASE-ER4 Transceiver Module, LC, 40KM

QSFP-40G-ER4= Specification

Description

Cisco 40GBASE-ER4 Module for SMF with OTU-3 data-rate support

Dimensions

13.5 x 18.4 x 72.4 mm

   QSFP Port cabling specifications

Wavelength (nm)

1310

Cable Type

SMF

Core Size (microns)

G.652

Modal Bandwidth (MHz-km)

Cable Distance

40km

Power Consumption (W)

3.5

Pull Tab Color

Red

 Optical characteristics

Type

40GBASE-ER4 with OTU3 data rate support, 1310 nm, SMF

Transmit Power (dBm)

Max:+4.5 per lane

Min:-2.7 per lane

Receive Power (dBm)

Max:-4.5 per lane

Min:-21.2 per lane

Transmit and Receive Wavelength (nm)

Four lanes: 1271, 1291, 1311, 1331

Environmental conditions

Commercial temperature

0 to 70°C (32 to 158°F)

Storage temperature

-40 to 85°C (-40 to 185°F)

Regulatory and standards compliance

Standards

•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable

•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies

•GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors

•IEEE 802.3ba (-SR4, -LR4)

•IEEE 802.3ae (-CSR4)

•QSFP+ MSA SFF-8436

•SFP+ MSA SFF-8431 and -8461

•RoHS 6

Safety

•Cable jacket of QSFP copper modules is UL E116441 Compliant

•QSFP copper cables are ELV Compliant
