C9200-48T-E Overview
C9200-48T-E is the Catalyst 9200 48-port Data Switch, withNetwork Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.
Quick Spec
Table 1 shows the quick spec.
| Model |
C9200-48T-E |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports data |
| Uplink configuration |
Modular uplink options |
| Default primary AC power supply |
PWR-C6-125WAC |
| Fans |
FRU redundant |
| Software |
Network Essentials |
| Stacking bandwidth |
160 Gbps |
| DRAM |
4 GB |
| Flash |
4 GB |
| Switching capacity |
176 Gbps |
| Forwarding rate |
261.9 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 in
4.4 x 44.5 x 35.0 cm
|
Product Details
Catalyst 9200 series provides these highlights:
- ● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
- ● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
- ● Flexible downlink options with data or PoE+
- ● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- ● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- ● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
- ● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- ● Advanced network monitoring using Full Flexible NetFlow
- ● Cisco Software-Defined Access (SD-Access):
- ● Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
- ● Network assurance and improved resolution time through Cisco DNA Center
- ● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
- ● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming
- ● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries telemetry
Supported Products
Table 2 shows the recommended supported products.
Compare to Similar Items
Table 3 shows the comparison.
| Model |
Description |
| C9200-48T-A |
Catalyst 9200 48-port Data Switch, Network Advantage |
| C9200-48T-E |
Catalyst 9200 48-port Data Switch, Network Essentials |
| C9200-48P-A |
Catalyst 9200 48-port PoE+ Switch, Network Advantage |
| C9200-48P-E |
Catalyst 9200 48-port PoE+ Switch, Network Essentials |
Get More Information
Do you have any question about the Cisco C9200-48T-E?
Contact us now via Live Chat or sales@router-switch.com.

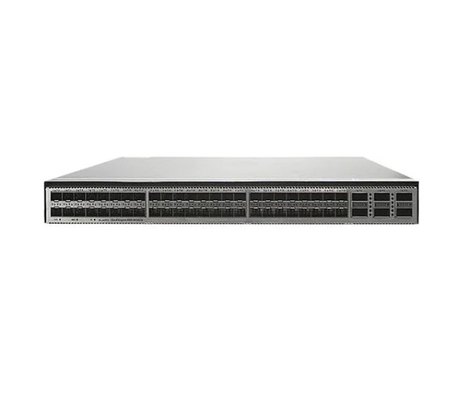

CE6881-48S6CQ-B Overview
CloudEngine 6800 is well suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code |
CE6881-48S6CQ-B |
| Processor |
1.4 GHz, four-core |
| DRAM memory |
4 GB |
| NOR Flash |
64 MB |
| NAND Flash |
4 GB |
| Mean time between failures (MTBF) |
45.9 years |
| Mean time to repair (MTTR) |
1.57 hours |
| Availability |
0.9999960856 |
| Hot swap |
Supported by all power modules and fan modules |
Supported Transceivers
Table 2 shows the recommended models.
| Model |
Description |
| OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| ESFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
CE6881-48S6CQ-B Specification
CE6881-48S6CQ-B Specification
|
| Item |
Description |
| Physical specifications |
- Dimensions (H x W x D)
- Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
- Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.)
|
| Environment parameters |
Temperature |
- Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
- Storage temperature: -40°C to +70°C (-40°F to +158°F)
|
| Relative humidity |
5% RH to 95% RH, noncondensing |
| Altitude |
< 5000 m (16404 ft.) |
| Noise (sound pressure, 27°C) |
- Back-to-front airflow: < 57 dBA
- Front-to-back airflow: < 58 dBA
|
| Power specifications |
Power source type |
AC/DC/HVDC |
| AC power input |
- Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
- Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
|
| DC power input |
- Rated voltage range: -48 V DC to -60 V DC
- Maximum voltage range: -38.4 V DC to -72 V DC
|
| High-voltage DC power input |
- 600 W AC&240 V DC power module (PAC600S12 series):
- Rated voltage range: 240 V DC
- Maximum voltage range: 190 V DC to 290 V DC
- 1200 W high-voltage DC power module (PHD1K2S12 series):
- Rated voltage range: 240 V DC to 380V DC
- Maximum voltage range: 190 V DC to 400 V DC
|
| Rated input current |
- 600 W AC&240 V DC power module (PAC600S12 series):
- 8 A (100 V AC to 240 V AC)
- 4 A (240V DC)
- 1000 W DC power module (PDC1000S12 series): 30 A (-48 V DC to -60 V DC)
- 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
|
| Chassis power consumption |
Maximum power consumption |
349 W |
| Typical power consumption |
- 194 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
- 240 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
|
| Chassis heat dissipation |
Maximum heat dissipation |
1191 BTU/hr |
| Typical heat dissipation |
- 662 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
- 819 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
|
| Surge protection |
Power module:
- AC: 6 kV in common mode and 6 kV in differential mode
- DC: 4 kV in common mode and 2 kV in differential mode
- HVDC: 4 kV in common mode and 2 kV in differential mode
|
| Heat dissipation |
Heat dissipation mode |
Air cooling |
| Airflow |
Front-to-back or back-to-front, depending on the fan modules and power modules |
| Reliability and availability |
Power module backup |
1+1 backup |
| Fan module backup |
The device supports four pluggable fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Hot swap |
Supported by all power modules and fan modules |
| Mean time between failures (MTBF) |
45.9 years |
| Mean time to repair (MTTR) |
1.57 hours |
| Availability |
0.9999960856 |
| Technical specifications |
Processor |
1.4 GHz, four-core |
| DRAM memory |
4 GB |
| NOR Flash |
64 MB |
| NAND Flash |
4 GB |
| Stack |
Service port supporting the stacking function |
10GE optical ports and 100GE optical ports |
| Certification |
- Safety standards compliance
- EMC standards compliance
- Environmental standards compliance
|
C9200-48T-E Specification
C9200-48T-E Specifications
|
| Performance specifications |
| Virtual Networks |
4 for C9200-24T, C9200-24P, C9200-48T, C9200-48P, C9200- 24PXG, C9200-48PXG, C9200-48PL
32 for C9200-24PB, C9200-48PB
|
| Stacking bandwidth |
160 Gbps |
| Total number of MAC addresses |
32,000 |
| Total number of IPv4 routes (ARP plus learned routes) |
14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries |
4,000 |
| IPv6 routing entries |
2,000 |
| Multicast routing scale |
1,000 |
| QoS scale entries |
1,000 |
| ACL scale entries |
1,600 |
| Packet buffer per SKU |
6 MB buffers for 24- or 48-port Gigabit Ethernet models, 12MB buffers for 24 or 48 port multigigabit models |
| Flexible NetFlow (FNF) entries |
16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM |
4 GB |
| Flash |
4 GB |
| VLAN IDs |
4096 |
| PVST Instances |
128 |
STP Virtual Ports
(Port *VLANs) for PVST |
13,000 |
STP Virtual Ports
(Port *VLANs) for MST |
13,000 |
| Total Switched Virtual Interfaces (SVIs) |
512 |
| Jumbo frames |
9198 bytes |
| Wireless bandwidth per switch |
Up to 48 Gbps on 24- port and 48-port Gigabit Ethernet model |
| IP SGT binding scale |
8K |
| Number of IPv4 bindings |
8K |
| Number of SGT/DGT policies |
2K |
| Number of SXP Sessions |
200 |
| Bandwidth specifications |
| Switching capacity |
176 Gbps |
| Switch capacity with Stacking |
336 Gbps |
| Forwarding rate |
130.95 Mpps |
| Forwarding rate with Stacking |
250 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 Inches |
| Weight |
11.02 Pounds |
| Mean time between failures (hours) |
|
