Product Details:
|
| Part Number: | EH1BS9712E00 | Brand: | Huawei |
|---|---|---|---|
| Service Slots: | 6 | Backplane Capacity: | 14.4 Tbps |
| EAN: | 6920702733881 | Typic Power(W): | 11.6 |
| Highlight: | 12 Slots Huawei S9700 Series Switch,EH1BS9712E00 Huawei S9700 Series Switch,Assembly Chassis Huawei S9700 Series Switch |
||
EH1BS9712E00 is the Huawei S9712 Switch assembly chassis, including 12 slots. The S9700 series terabit routing switches are high-end switches designed for next-generation campus networks and data centers to implement service aggregation.

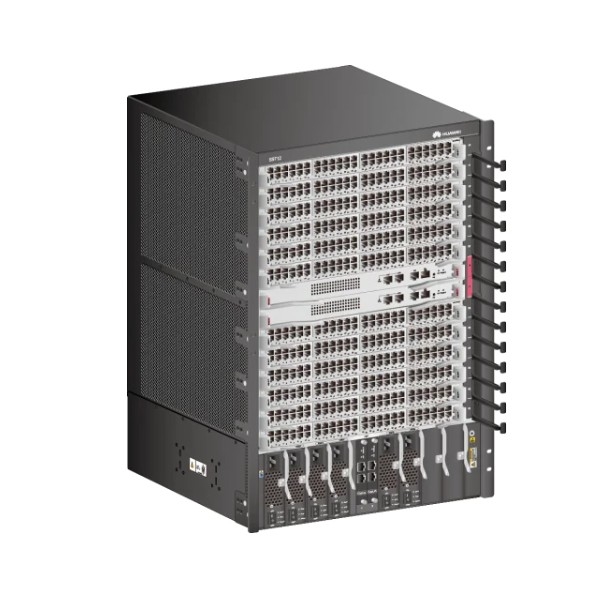

Figure 1 shows the S9712 chassis appearance. EH1BS9712E00 is one of the S9712 chassis, including no cards, modules or units.
Table 1 shows the Quick Specs.
| Product Code | EH1BS9712E00 |
| Packet Forwarding Rates | 3,840 Mpps or 6,480 Mpps |
| Switching Capacity | 8.64 Tbit/s or 18.56 Tbit/s |
| MPU Slots | 2 |
| LPU slots | 12 |
| Service Slots | 12 |
| Fan slots | 4 |
| Power slots | 6 |
| Equipment Power Supply Capability | 6,600W |
| Maximum power consumption (fully loaded) | 4500 W |
| Operating Voltage | DC: –40V to –72V AC: 90V to 290V |
| Dimensions (W x D x H, excluding rack-mounting brackets) |
With cable management frames: 442 mm x 585 mm x 663.95 mm (17.4 in. x 23.0 in. x 26.1 in. (15 U)) Without cable management frames: 442 mm x 489 mm x 663.95 mm (17.4 in. x 19.3 in. x 26.1 in. (15 U)) |
| Weight (empty/fully loaded) | 37 kg/70 kg (81.6 lb/154.3 lb) |
Figure 2 S9712 chassis structure (front view).
Note:
| ① |
Twelve service cards, including:
|
| ② | Two MPUs |
| ③ | A pair of mounting brackets |
| ④ | Six power modules |
| ⑤ | Two EH1D200CMU00-Centralized Monitoring Unit |
| ⑥ | Reserved slot |
| ⑦ | Front ESD jack |
| ⑧ | Cable management frames |
Figure 3 S9712 chassis structure (rear view) .
Note:
| ① | Four?power modules |
| ② | Rear ESD jack |
| ③ | JG ground terminal |
| ④ | Air filter |
| ⑤ | A pair of removable handles |
Table 2 shows the recommended elements for the EH1BS9712E00.
| Model | Description |
| FE-SFP optical transceiver | |
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
| GE-SFP optical transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
| 10G-SFP+ optical transceiver | |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
| 40GE CFP optical transceiver | |
| CFP-40G-SR4 | High Speed Transceiver CFP-40G-SR4,CFP,40G,Multimode Module(850nm,4*10G,0.1km,MPO) |
| CFP-40G-LR4 | High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC) |
| CFP-40G-ER4 | High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC) |
| 40GE QSFP+ optical transceiver | |
| QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver) |
| QSFP-40G-ER4 | 40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) |
| 100GE CFP optical transceiver | |
| CFP-100G-SR10 | High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO) |
| CFP-100G-LR4 | CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC) |
| CFP-100G-ER4 | High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC) |
| GE copper transceiver | |
| SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
| 100GE interface card | |
| ET1D2C02FEE0 | 2-Port 100GBASE-X Interface Card(EE,CFP) ET1D2C02FEE0series) |
| 10GE interface card | |
| ET1D2X32SSC0 | 32-Port 10GBASE-X Interface Card(SC,SFP+) |
| ET1D2X12SSA0 | 12-Port 10GBASE-X Interface Card(SA,SFP+) |
| 40GE interface card | |
| ET1D2L08QSC0 | 8-Port 40GBASE-X Interface Card(SC,QSFP+) |
| ET1D2L02QSC0 | 2-Port 40GBASE-X Interface Card(SC,QSFP+) |
| Centralized monitoring unit | |
| EH1D200CMU00 | Centralized Monitoring Board |
| Cluster switching system unit | |
| EH1D2VS08000 | 8-Port 10G Cluster Switching System Service Unit (SFP+) |
| Firewall module | |
| ET1D2FW00S02 | NGFW Module C,with HW General Security Platform Software |
| ET1D2FW00S01 | NGFW Module B,with HW General Security Platform Software |
| GE/10GE interface card | |
| ET1D2S08SX1E | 8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+) |
| ET1D2S04SX1E | 4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+) |
| Intrusion prevention system module | |
| ET1D2IPS0S00 | IPS Module A,with HW General Security Platform Software |
| Main processing unit | |
| ET1D2MPUA000 | S12708/S12712,Main Processing Unit A(Optional clock) |
| Switch fabric unit | |
| ET1D2SFUD000 | S12708/S12712,Switch Fabric Unit D |
| ET1D2SFUA000 | S12708/S12712,Switch Fabric Unit A |
| Wireless access controller unit | |
| ACU2 | WLAN?ACU2?Access Controller Unit(128 AP Control Resource Included) |
| GE interface card | |
| ET1D2T36SEA0 | 36-Port 10/100/1000BASE-T and 12-Port 100/1000BASE-X Interface Card(EA,RJ45/SFP) |
| ET1D2G48SX1E | 48-Port 100/1000BASE-X Interface Card(X1E,SFP) |
Table 3 shows the comparison of EH1BS9712E00 and ET1BS12708S0.
| Product Code | EH1BS9712E00 | ET1BS12708S0 |
| Packet Forwarding Rates | 3,840 Mpps or 6,480 Mpps | 6,240 Mpps; 9,120 Mpps(With Necessary Plug-ins) |
| Switching Capacity | 8.64 Tbit/s or 18.56 Tbit/s | 12.32 Tbit/s; 32.16 Tbit/s(With Necessary Plug-ins) |
| MPU Slots | 2 | 2 |
| Maximum power consumption (fully loaded) | 4500 W | ≤ 4,400W |
