Product Details:
|
| Part Number: | ES0Z1B06ACS0 | Brand: | Huawei |
|---|---|---|---|
| Forwarding Performance: | 2,880 Mpps | Redundancy Design: | Supervisors, Power Modules, CMUs, Fans Trays |
| USB: | Not Supported | PoE: | Not Supported |
| Highlight: | Huawei S7706 Chassis,Huawei S7706 Chassis ES0Z1B06ACS0,Huawei S7706 Chassis 2*SRUA |
||
ES0Z1B06ACS0 is the Huawei S7706 Basic Engine AC Bundle(Including non-PoE Assembly Chassis, SRUA Main Board*2, 800W AC Power*2).

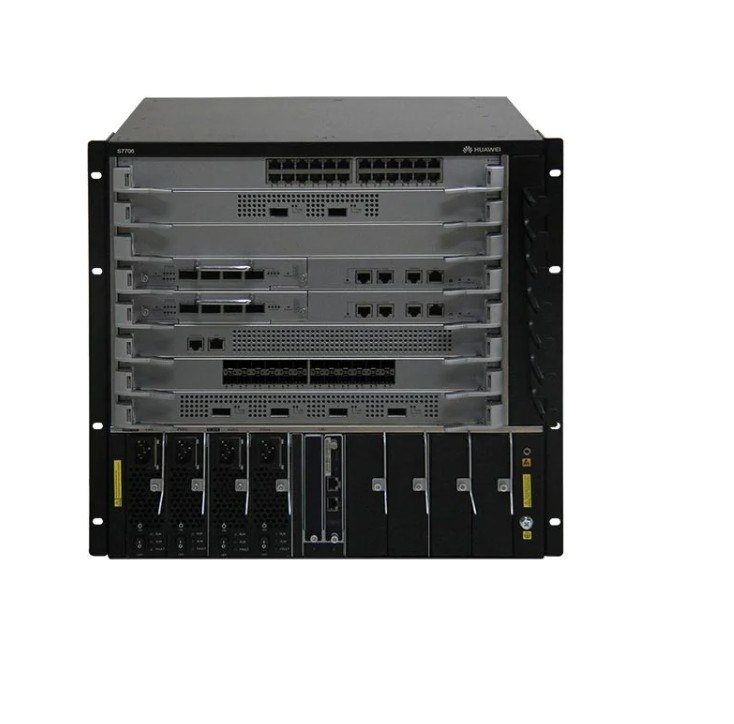

Figure 1 shows the appearance of ES0Z1B06ACS0 (front view).
Figure 2 shows the appearance of ES0Z1B06ACS0 (rear view).
Table 1 shows the Quick Specs.
| Product Code | ES0Z1B06ACS0 |
| Switching Capacity | 3.84 Tbit/s |
| Forwarding Performance | 2,880 Mpps |
| Redundancy Design | Supervisors, Power modules, CMUs, Fans trays |
| Buffer Capacity | 200 ms per Port |
| Pack Weight (kg) |
45.8 |
| Pack Volume (m^3) |
0.247 |
| Pack Dimension (D*W*H mm) |
638*612*632 |
| Net Dimension (D*W*H mm) |
489*442*442 |
Figure 2 shows the S7706 chassis structure (front view). ES0Z1B06ACS0 is the Huawei S7706 Basic Engine AC Bundle(Including non-PoE Assembly Chassis, SRUA Main Board*2, 800W AC Power*2),the other modules or cards must be purchased separately.
Note:
| ① |
Six service cards, including: Open Service Platform Unit 100M Interface Card 1000M Interface Card GE/10GE Interface Card 10GE Interface Card 40GE Interface Card 40GE/100GE Interface Card 100GE Interface Card NOTE: The cards supported by a switch depends on the software version. |
| ② | Two MPUs |
| ③ |
A pair of mounting brackets NOTE: The mounting brackets are used to secure the chassis in the cabinet. |
| ④ | Four power modules |
| ⑤ | Two EH1D200CMU00-Centralized Monitoring Unit |
| ⑥ |
Four PoE power modules In versions earlier than V200R006C00: 800 W AC Power Module 2200 W AC Power Module In V200R006C00 and later versions: 2200 W DC Power Module 800 W AC Power Module 2200 W AC Power Module |
| ⑦ |
Ground screw NOTE: The ground screw is used to ground the chassis. |
| ⑧ |
Front ESD jack NOTE: The ground terminal of an ESD wrist strap can be inserted in this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded. |
| ⑨ |
Cable management frames NOTE: Cable management frames are used to route cables. |
Figure 3 shows the S7706 chassis structure (rear view). ES0Z1B06ACS0 is the Huawei S7706 Basic Engine AC Bundle(Including non-PoE Assembly Chassis, SRUA Main Board*2, 800W AC Power*2),the other modules or cards must be purchased separately.
Note:
| ① | Two Fan Module |
| ② |
Rear ESD jack NOTE: The ground terminal of an ESD wrist strap can be inserted in this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded. |
| ③ |
Air filter NOTE: The air filter prevents dust from entering the chassis. |
| ④ |
A pair of removable handles NOTE: You can install these handles on two sides of the chassis to lift the chassis. |
Table 2 shows the recommended elements for the ES0Z1B06ACS0.
| Model | Description |
| AC power module | |
| W2PSA0800 | 800W AC Power Module(Black) |
| PAC-2200WF | 2200W AC Power Module |
| DC power module | |
| W2PSD2200 | 2200W DC Power Module(Black) |
| ES02PSD16 | 1600W DC Power Module(Black) |
| FE-SFP optical transceiver | |
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
| GE-SFP optical transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
| 10G-SFP+ optical transceiver | |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
| 40GE CFP optical transceiver | |
| CFP-40G-SR4 | High Speed Transceiver CFP-40G-SR4,CFP,40G,Multimode Module(850nm,4*10G,0.1km,MPO) |
| CFP-40G-LR4 | High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC) |
|
|
High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC) |
| 40GE QSFP+ optical transceiver | |
| QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver) |
| QSFP-40G-ER4 | 40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) |
| 100GE CFP optical transceiver | |
|
|
High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO) |
|
|
CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC) |
|
|
High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC) |
| GE copper transceiver | |
| SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
| 100GE interface card | |
| ES1D2C02FEE0 | Huawei 2-Port 100GBASE-X Interface Card(EE,CFP) ES1D2C02FEE0 |
| 10GE interface card | |
| ES1D2X40SFC0 | 40-Port 10GBASE-X Interface Card(FC,SFP+) |
| ES1D2X16SSC2 | Huawei 16-Port 10GBASE-X Interface Card(SC,SFP+) ES1D2X16SSC2 |
| Main control unit | |
| ES0D00MCUA00 | S7703 Main Control Unit A |
| Fan module | |
| ES0E2FBX | S7700 Wide Voltage Fan Box |
Table 3 shows the comparison of ES0Z1B06ACS0, ES0Z1B03ACS0 and ES0Z1B12ACS0.
| Product Code | ES0Z1B06ACS0 | ES0Z1B03ACS0 | ES0Z1B12ACS0 |
| Switching Capacity | 3.84 Tbit/s | 1.92 Tbit/s | 3.84 Tbit/s |
| Forwarding Performance | 2,880 Mpps | 1,440 Mpps | 2,880 Mpps |
| Redundancy Design | Supervisors, Power modules, CMUs, Fans trays | Supervisors, Power modules, CMUs, Fans trays | Supervisors, Power modules, CMUs, Fans trays |
| Buffer Capacity | 200 ms per Port | 200 ms per Port | 200 ms per Po rt |
| Pack Weight (kg) |
45.8 | 21.8 | 56.1 |
| Pack Volume (m^3) |
0.247 | 0.124 | 0.322 |
| Pack Dimension (D*W*H mm) |
638*612*632 | 652*595*322 | 810*650*610 |
| Net Dimension (D*W*H mm) |
489*442*442 | 489*442*175 | 489*442*664 |
