Product Details:
|
| Part Number: | S2730S-S48FT4S-A | Brand: | Huawei |
|---|---|---|---|
| Memory: | 512 MB | Flash Memory: | 512 MB |
| USB: | Not Supported | PoE: | Not Supported |
| Highlight: | S2700 Series Switches,Huawei S2700 Series Switches,S2730S-S48FT4S-A Huawei S2700 Series Switches |
||

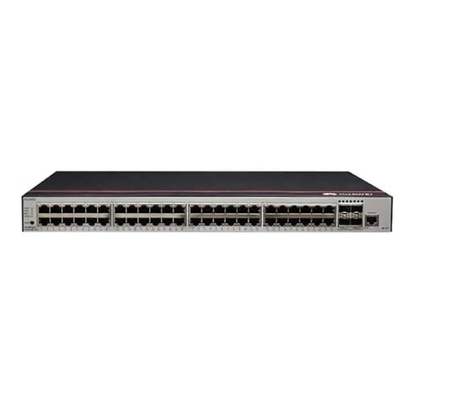

CloudEngine S2730S-S series switches are based on next-generation high-performance hardware and Huawei's unified VRP (Versatile Routing Platform) software platform. Flexible Ethernet networking, various security controls, etc., support a variety of Layer 3 routing protocols, with higher performance and richer business processing capabilities, widely used in enterprise parks area access, 100M, Gigabit to desktop and other application scenarios.
Table 1 shows the Quick Specs.
| Product Code | S2730S-S48FT4S-A |
| Typical power consumption [W] | 43.3 W |
| Typical heat dissipation [BTU/hour] | 147.74 BTU/hour |
| Maximum power consumption [W] | 50.4 W |
| Maximum heat dissipation [BTU/hour] | 171.97 BTU/hour |
| MTBF [year] | 56.7 year |
| MTTR [hour] | 2 hour |
Table2shows the comparison.
| Item | CloudEngine S2730S-S24FT4S-A | CloudEngine S2730S-S24FP4S-A | CloudEngine S2730S-S48FT4S-A |
| Fixed port | 12 10 /100BASE-TX Ethernet ports, 12 10 /100/1000BASE-T Ethernet ports, 4 Gigabit SFP | 12 10 /100BASE-TX Ethernet ports, 12 10 /100/1000BASE-T Ethernet ports, 4 Gigabit SFP | 24 10 /100BASE-TX Ethernet ports, 24 10 /100/1000BASE-T Ethernet ports, 4 Gigabit SFP |
| Basic Dimensions (WxDxH, unit: mm) | 442x220x43.6 | 442x220x43.6 | 442x220x43.6 |
| Chassis height | 1U | 1U | 1U |
| Power Type | Built-in AC power supply | Built-in AC power supply | Built-in AC power supply |
| Rated voltage | AC input: 100-240V AC; 50/60Hz |
AC input: 100-240V AC; 50/60Hz High Voltage DC Input: 240V DC |
AC Input: 100-240V AC; 50/60Hz |
| Maximum voltage | AC input: 90-290V AC; 4 5Hz-65Hz |
AC input: 90-290V AC; 45Hz-65Hz High Voltage DC Input: 190-290V DC |
AC input: 90264V AC; 47Hz63Hz |
| Maximum power consumption | 47.6W |
Without PoE: 53.2W With PoE: 433.2W (PoE: 380W) |
50.4W |
S2730S-S48FT4S-A Specification |
|
| Item | Specification |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Typical power consumption [W] | 43.3 W |
| Typical heat dissipation [BTU/hour] | 147.74 BTU/hour |
| Maximum power consumption [W] | 50.4 W |
| Maximum heat dissipation [BTU/hour] | 171.97 BTU/hour |
| MTBF [year] | 56.7 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 48 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 36.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
