Product Details:
|
| Model: | S-SFP-FE-LH80-SM1550 | Transceiver Form Factor: | S-SFP-FE-LH80-SM1550 |
|---|---|---|---|
| Transmission Speed: | 10 Gbit/s | Center Wavelength (nm): | S-SFP-FE-LH80-SM1550 |
| Connector Type: | S-SFP-FE-LH80-SM1550 | Transmit Power (dBm): | S-SFP-FE-LH80-SM1550 |
| Net Dimension(D X W X H Mm): | 110 X 70 X 37 Mm SFP-FE-SX-MM1310 | Condition: | S-SFP-FE-LH80-SM1550 |
| Warranty: | S-SFP-FE-LH80-SM1550 | Shipment: | S-SFP-FE-LH80-SM1550 |
| Payment: | T/T, Western Union, Paypal SFP-1000BaseT | ||
| Highlight: | 10km Huawei Optical Transceiver,1310nm Huawei Optical Transceiver,LC Huawei Optical Transceiver |
||

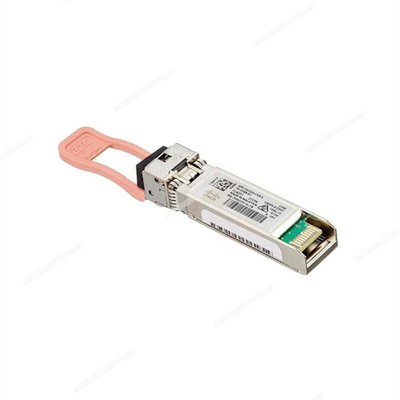

HW OSX010000 compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
The Huawei hot switches which supporteSFP-FE-LX-SM1310
| Model | Description |
| S5700-28P-LI-AC | 24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28TP-LI-AC | 24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V |
| S5700S-52P-LI-AC | 48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28P-PWR-LI-AC | 24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V |
| S5700-10P-PWR-LI-AC | 8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V |
| S5720-36C-EI-AC |
28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC |
| S5700-28C-EI-AC | 24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply |
| S5720-56C-HI-AC | 48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply |
| S5720-56PC-EI-AC | 48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply |
| S5720-56C-PWR-HI-AC | 48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply |
The comparison of OSX010000 and OMXD30000.
| Item | OSX010000 | OMXD30000 |
| Transceiver form factor | SFP+ | SFP+ |
| Transmission speed | 10 Gbit/s | 10 Gbit/s |
| Center wavelength (nm) | 1310 | 1310 |
| Standard compliance | 10Gbase-LR | 10GBASE-iLR |
| Connector type | LC | LC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber: 10 km | Single-mode fiber: 1.4 km |
| Transmit power (dBm) | -8.2 to +0.5 | -8.2 to +0.5 |
| Maximum receiver sensitivity (dBm) | -12.6 | -14.4 |
| Overload power (dBm) | 0.5 | 0.5 |
| Extinction ratio (dB) | 3.5 | 3.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) | -40°C to +85°C (-40°F to +185°F) |
OSX010000 Specification |
|
| Transceiver form factor | SFP+ |
| Transmission speed | 10 Gbit/s |
| Center wavelength (nm) | 1310 |
| Standard compliance | 10Gbase-LR |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
| Transmit power (dBm) | -8.2 to +0.5 |
| Maximum receiver sensitivity (dBm) | -12.6 |
| Overload power (dBm) | 0.5 |
| Extinction ratio (dB) | 3.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
