Product Details:
|
| Name: | JL075A | Model: | HPE JL075A - Aruba 3810 Switch |
|---|---|---|---|
| Connector Type: | LC/PC | Warrranty: | 1 Year |
| Shipping: | DHL&FeDex | Software And Hardware Attributes: | Hardware |
| Throughput:: | Up To 285.7 Mp/s (64-byte Packets) | Type: | Aruba 3810M 16SFP+ 2-slot Switch |
| Dimensions (H X W X D): | 4.39 X 44.25 X 43.13 Cm (1.73 X 17.42 X 16.98 In) (1U Height) | ||
| Highlight: | 16SFP+ Aruba 3810 Switch,2-slot Aruba 3810 Switch,JL075A Aruba 3810 Switch |
||
Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL075A has 16 x 1000/10000 SFP+ ports together with 2 x open module slots and a stacking module slot. It comes with a replaceable fan tray. It supports one or two power supplies. Power supplies are ordered separately. Available modules are: 4 x SFP+; 1 x 40GbE QSFP+; 2 x 40GbE QSFP+; 4 port stacking module.

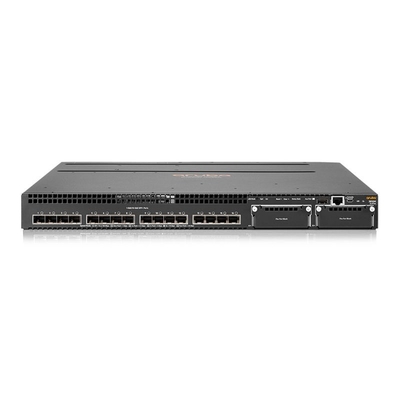

Figure 1 shows the appearance of Aruba JL075A.
Table 1 shows the quick spec.
| Product Code | JL075A |
| Type | Aruba 3810M 16SFP+ 2-slot Switch |
| I/O ports and slots | 16 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 16 support MACSec 2 open module slots Supports a maximum of 8 SFP+ ports or 2 40GbE ports, with optional module |
| Additional ports and slots | 1 stacking module slot 1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 dual-personality (RJ-45 or USB micro-B) |
| Power supplies | 2 power supply slots 1 minimum power supply required (ordered separately) |
| Throughput: | Up to 285.7 Mp/s (64-byte packets) |
| Dimensions (H x W x D) | 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height) |
