Product Details:
|
| Number Of Processors: | 2 | Feature: | Advanced Format 512e |
|---|---|---|---|
| Model: | HPE Proliant DL388 G10 4214R (12-Core, 2.4 GHz, 100W) 1P 16G P408i-a NC 8SFF 800W PS Server | Processor: | Intel Xeon Silver 4214R Processor (2.4GHz/12-core/100W) |
| Memory: | 16G | PCIe Slots: | 3 |
| Hard Drive: | 8 SFF | Power Supply: | 800W |
| Height: | 2U | Management: | OpenManage Enterprise, OpenManage Essentials, IDRAC9 With Lifecycle Controller |
| Payment: | TT/paypal | Shipping: | DHL&FeDex |
| Color: | Black | ||
| Highlight: | HPE Proliant DL388 Gen10 Servers,8SFF HPE Proliant DL388 Gen10 Servers |
||

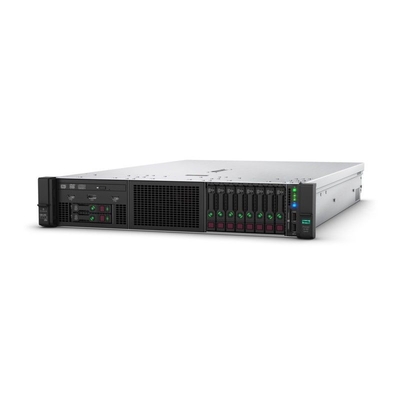

HPE DL388 Gen10 4214R 1P 16G 8SFF Sever comes standard with an Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) processor, 16G memory, P408i-a, 8SFF, and 800W power supply. HPE ProLiant DL388 Server delivers the best performance and expandability in the HPE 2P rack portfolio.Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, make it ideal for any environment - P25217-AA1 server
Table 1 shows the quick spec.
| Part Number | P25217-AA1 |
| Model | HPE Proliant DL388 G10 4214R (12-Core, 2.4 GHz, 100W) 1P 16G P408i-a NC 8SFF 800W PS server |
| Processor | Intel Xeon Silver 4214R Processor (2.4GHz/12-core/100W) |
| Memory | 16G |
| Array controller | Built-in HPE Smart Array P408i-a |
| PCIe slots | 3 |
| Hard Drive | 8 SFF |
| Power Supply | 800W |
| Height | 2U |
Figure 1 shows the SFF front panel components.
Note:
| ① | Box 1 (optional drives or universal media bay, see figure 2) | ③ | Box 3 Drives 1-8 | ⑤ | USB 3.0 port |
| ② | Box 2 (optional drives) | ④ | Serial label pull tab or optional Systems Insight Display | ⑥ | iLO service port |
Figure 2 shows the Universal media bay components. It needs to be purchased separately.
Note:
| ① | ② | ③ | ④ | ⑤ |
| USB 2.0 port | Video display port | Optical disk drive (optional) | USB 2.0 port | Drives (optional) |
Figure 3 shows the rear panel components. These installed drives need to be purchased separately.
Note:
| ① | Primary riser slots 1-3 (Optional drive cage) | ⑤ | Power supply 2 | ⑨ | iLO management port |
| ② | Optional riser slots 4-6 (Optional drive cage) | ⑥ | Video port | ⑩ | USB 3.0 ports |
| ③ | Optional riser slots 7-8 (Optional drive cage) | ⑦ | Serial port (optional)* | FlexibleLOM slot | |
| ④ | Power supply 1 | ⑧ | 1Gb RJ-45 ports 1–4 |
*When a tertiary riser cage is installed as shown, the serial port can be installed in riser slot 6.
Table 2 shows the supported SFF hard drives.
| Part Number | Description |
| 872479-B21 | HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) Sc 3yr Wty Digitally Signed Firmware HDD |
| 872481-B21 | HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
| 870759-B21 | HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Ds Digitally Signed Firmware HDD |
| 881457-B21 | HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
| 870757-B21 | HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
| P04556-B21 | HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
| P04560-B21 | HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
| P04564-B21 | HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
| P04566-B21 | HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
| P04556-B21 | HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
| P04560-B21 | HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
